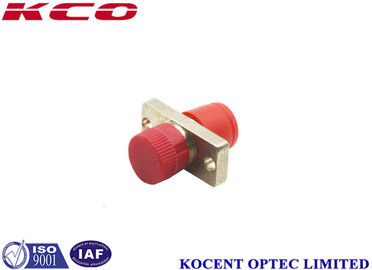

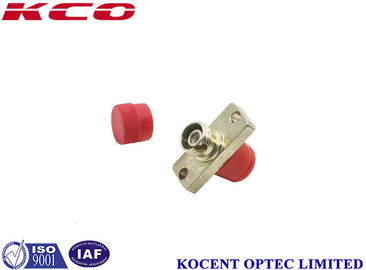

Metallic FC Oblong Fiber Optic Adapter Simplex with Ceramic Sleeves and Flange

  • Metallic FC Oblong Fiber Optic Adapter Simplex with Ceramic Sleeves and Flange
  • Metallic FC Oblong Fiber Optic Adapter Simplex with Ceramic Sleeves and Flange
  • Metallic FC Oblong Fiber Optic Adapter Simplex with Ceramic Sleeves and Flange
  • Metallic FC Oblong Fiber Optic Adapter Simplex with Ceramic Sleeves and Flange
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number FC-Oblong-SX
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Plastic module, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 500,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type FC Oblong Sleeves Material Ceramic (ZrO2)
Material Metallic Chanel Way Simplex
Color Red Repeat Ability 0.10dB
Highlight

fibre optic adapter

,

fiber optic cable adapter
Leave a Message
Product Description
Red Fibers Optics Adapter FC UPC APC Metallic, Oblong With Flange Simplex
Red Fiber Optic Adapter FC Metallic, Oblong, With Flange With Dust Cap, Simplex. Fiber optic adapter is also called fiber optic coupler, used to provide cable-to-cable fiber connections. These adapters are sometimes referred to as mating sleeves (for connecting same-type connectors) or hybrid adaptors (for connecting different connector types).
Applications
  • Terminal of the devices multimedia
  • Telecommunication networks
  • Industrial, Medical & Military applications
  • LANS, MANS, WANS
  • Fiber to the home (FTTX)
  • Data processing networks
Key Advantages
Our fiber optic cable adapters maintain consistent quality verified through repeated testing. They are interchangeable with similar devices built to the same standards and offer superior low loss performance with high repeatability. Designed and manufactured to comply with stringent Telcordia 100BaseFX Technologies standards.
Product Features
  • Compact design
  • High precision alignment
  • With/without flange options
  • Compliant with IEC, Telcordia GR 326 and JIS standards
  • Low insertional loss, high return loss
Metallic FC Oblong Fiber Optic Adapter Simplex with Ceramic Sleeves and Flange 0
Technical Specifications
Parameter Specifications
Mating Connector Type SC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc
Fiber Type of Connector Single Mode | Multimode
Adapter Color Blue, green, metallic | Beige, Metallic
Testing Wavelength 1310nm,1550nm | 850nm,1300nm
Insert Loss Typical≤0.15dB, max≤0.2dB | Typical≤0.15dB, max≤0.2dB
Repeatability ≤0.10dB
Exchangeability ≤0.20dB
Durability 1000Mating, max≤0.20dB
Housing Material Plastic or metal
Operating Temperature -20°C～+70°C
Storage Temperature -40°C～+85°C
Alignment Sleeve Ceramic (ZrO2) or customized
Channel Number Simplex, duplex, quad
Reliability Testing
Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB
OEM/ODM Services
We offer custom branding options for your products including cables, packaging bags, labels, or any visible surface. Our OEM and ODM services can accommodate your specific branding requirements.
Packaging & Shipping
Packaging: Standard export packing options including carton boxes, wooden boxes, and wooden pallets.
Shipping Methods: International express (UPS, TNT, DHL), international air freight (CA, AA, EA), and sea freight.
