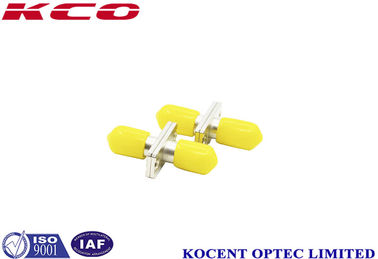

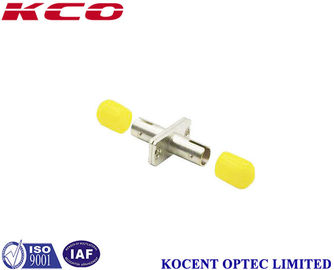

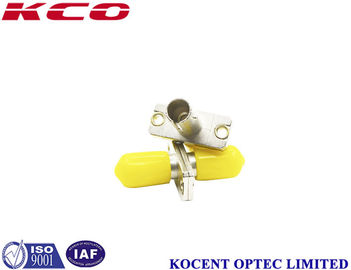

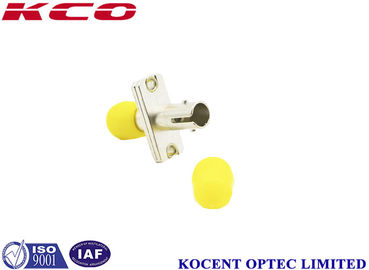

0.10dB Repeatability ST Oblong Metallic Fiber Optic Adapter with Ceramic Sleeves and Dust Cap

  • 0.10dB Repeatability ST Oblong Metallic Fiber Optic Adapter with Ceramic Sleeves and Dust Cap
  • 0.10dB Repeatability ST Oblong Metallic Fiber Optic Adapter with Ceramic Sleeves and Dust Cap
  • 0.10dB Repeatability ST Oblong Metallic Fiber Optic Adapter with Ceramic Sleeves and Dust Cap
  • 0.10dB Repeatability ST Oblong Metallic Fiber Optic Adapter with Ceramic Sleeves and Dust Cap
  • 0.10dB Repeatability ST Oblong Metallic Fiber Optic Adapter with Ceramic Sleeves and Dust Cap
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number ST-Oblong-SX
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Plastic module, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 500,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type ST Oblong Sleeves Material Ceramic (ZrO2)
Material Metallic Chanel Way Simplex
Color Yellow Repeat Ability 0.10dB
Highlight

fibre optic adapter

,

fiber optic cable adapter
Leave a Message
Product Description
0.10dB Fiber Optical Simplex Adapter ST Metallic Oblong With Dust Cap Simplex
Product Description
The 0.10dB Fiber Optic Adapter ST Metallic Oblong with Dust Cap Simplex is a high-performance fiber optic coupler designed for cable-to-cable fiber connections. Also known as mating sleeves or hybrid adaptors, these components are available for connecting both similar and different types of fiber optic connectors.
Applications
  • Terminal of the devices multimedia
  • Telecommunication networks
  • Industrial, Medical & Military applications
  • Optic fiber CATV
  • Data processing networks
Key Advantages
Our fiber optic adapters deliver consistent quality verified through repeated testing. They are interchangeable with similar devices built to the same standards and offer superior low loss performance with high repeatability. All products comply with stringent Telcordia 100BaseFX Technologies standards.
Product Features
  • Compact design with high precision alignment
  • Available with or without flange
  • Compliant with IEC, Telcordia GR 326 and JIS standards
  • Low insertional loss and high return loss
  • Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
0.10dB Repeatability ST Oblong Metallic Fiber Optic Adapter with Ceramic Sleeves and Dust Cap 0 0.10dB Repeatability ST Oblong Metallic Fiber Optic Adapter with Ceramic Sleeves and Dust Cap 1 0.10dB Repeatability ST Oblong Metallic Fiber Optic Adapter with Ceramic Sleeves and Dust Cap 2
Technical Specifications
Parameter Specifications
Mating Connector Type SC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc
Fiber Type of Connector Single Mode | Multimode
Adapter Color Blue, green, metallic | Beige, Metallic
Testing Wavelength 1310nm,1550nm | 850nm,1300nm
Insert Loss Typical≤0.15dB, max≤0.2dB | Typical≤0.15dB, max≤0.2dB
Repeatability ≤0.10dB
Exchangeability ≤0.20dB
Durability 1000Mating, max≤0.20dB
Housing Material Plastic or metal
Operating Temperature -20°C～+70°C
Storage Temperature -40°C～+85°C
Alignment Sleeve Ceramic (ZrO2) or customized
Channel Number Simplex, duplex, quad
Reliability Testing
Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB
OEM/ODM Service
We offer custom branding services for your products including cables, packaging, labels, and more. Our OEM and ODM services are available to meet your specific requirements.
Packaging & Shipping
Packaging: Standard export packing options including carton boxes, wooden boxes, and wooden pallets.
Shipping Methods: International express (UPS, TNT, DHL), international air freight (CA, AA, EA), and sea freight.
