OM4 LC Fiber Optic Adapter with Flange Telcordia GR 326 and JIS Standard Compliant

  • OM4 LC Fiber Optic Adapter with Flange Telcordia GR 326 and JIS Standard Compliant
  • OM4 LC Fiber Optic Adapter with Flange Telcordia GR 326 and JIS Standard Compliant
  • OM4 LC Fiber Optic Adapter with Flange Telcordia GR 326 and JIS Standard Compliant
  • OM4 LC Fiber Optic Adapter with Flange Telcordia GR 326 and JIS Standard Compliant
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number LC/OM4-Flange-DX
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Plastic module, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 500,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type LC/OM4 Sleeves Material Ceramic (ZrO2)
Material Plastic Chanel Way Duplex
Color Purple Repeat Ability 0.10dB
Highlight

fibre optic adapter

,

fiber optic cable adapter
Leave a Message
Product Description

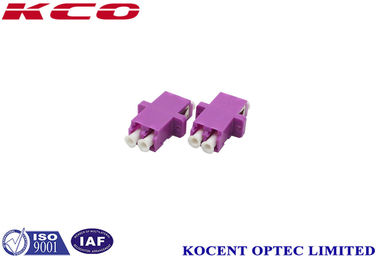

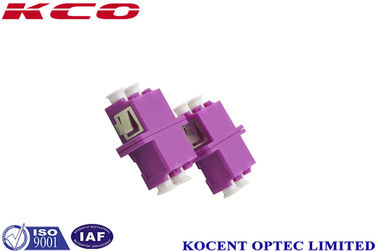

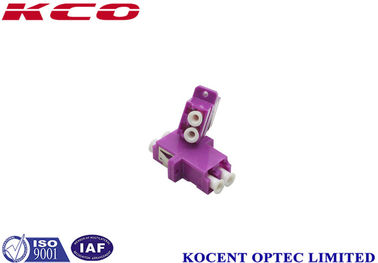

Violet OM4 LC Fiber Optic Duplex Adapter With Flange High Precision Alignment
Purple Fiber Optic Adapter LC OM4 With Flange, Without Dust Cap, Duplex
Product Description

Fiber optic adapters (also known as fiber optic couplers) provide cable-to-cable fiber connections. These components are classified as mating sleeves when connecting identical fiber optic connectors, or hybrid adaptors when connecting different connector types. Our comprehensive range includes ST, SC, FC, and LC style adapters suitable for both multimode and single-mode fiber applications.

Applications
  • Data Processing Networks
  • Telecommunication networks
  • Industrial, Medical & Military applications
  • LANS, MANS, WANS
  • Fiber to the home (FTTX)
Key Advantages
  • Consistent quality verified through rigorous testing
  • Interchangeable with industry-standard devices
  • Superior low loss performance with high repeatability
  • Compliant with Telcordia 100BaseFX Technologies standards
Product Features
  • Compact design with high precision alignment
  • Optional flange configuration
  • Zirconia sleeve construction
  • Low insertion loss and high return loss
  • Compliant with IEC, Telcordia GR 326 and JIS standards
OM4 LC Fiber Optic Adapter with Flange Telcordia GR 326 and JIS Standard Compliant 0
Technical Specifications
Parameter Specifications
Mating Connector Type SC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc
Fiber Type of Connector Single Mode | Multimode
Adapter Color Blue, green, metallic | Beige, Metallic
Testing Wavelength 1310nm,1550nm | 850nm,1300nm
Insert Loss Typical≤0.15dB, max≤0.2dB | Typical≤0.15dB, max≤0.2dB
Repeatability ≤0.10dB
Exchangeability ≤0.20dB
Durability 1000Mating, max≤0.20dB
Housing Material Plastic or metal
Operating Temperature -20°C～+70°C
Storage Temperature -40°C～+85°C
Alignment Sleeve Ceramic (ZrO2) or customized
Channel Number Simplex, duplex, quad
Reliability Testing
Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB
OEM/ODM Services

We offer custom branding options for your products including cables, packaging, and labels. Our OEM and ODM services can accommodate your specific branding requirements.

Packaging Options
  • Standard export carton boxes
  • Wooden boxes
  • Wooden pallets
Shipping Methods
  • International express (UPS, TNT, DHL)
  • International air freight (CA, AA, EA)
  • Ocean freight
