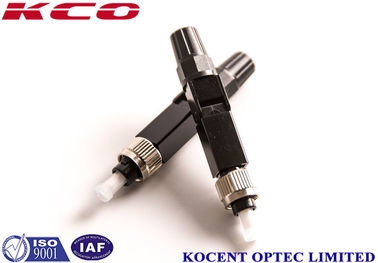

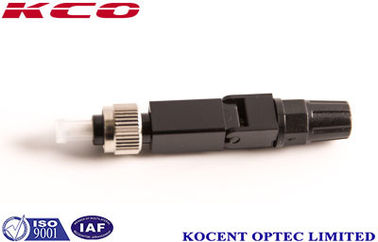

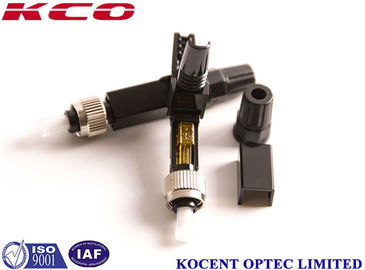

Multimode 55mm FC/UPC Fiber Optic Fast Connector for 2.0mm and 3.0mm Field Assembly
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO |
| Certification | ISO9001, RoHS |
| Model Number | FAST-FC-UPC-55 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | plastic module, PE bag, Carton box, wooden pallet |
| Delivery Time | 2~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 100,000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector Type | FC/UPC | Cable Available | 3mm/2mm Cable |
|---|---|---|---|
| Color | Black | Insertion Loss | 0.2dB |
| Return Loss | 50dB | Wave Length | 1260~1650nm |
| Highlight | ftth fast connector,quick connect fiber optic connectors |
||
Product Description
Multimode 55mm FC/UPC Fiber Optic Fast Connector 2.0mm, 3.0mm
Multimode 55mm FC/UPC Fiber Optic Fast Connector, Field assembly Connector, 2.0mm, 3.0mm.
Field Assembly SC quick connector provides quick and easy fiber termination in the field.
Available for 900 micron fiber, allowing installers to terminate and make connections in minutes at equipment and fiber patch panels.
Key Features
- No special assembling tool required
- Quick and easy assembly process
- Reusable with up to 300 repeat operations
- Integrated protective casing prevents impact damage
- Power-efficient - no hot melting required
- Cost-effective solution
Applications
- CATV systems
- Telecommunication Networks
- Local Area Networks (LAN)
- Data Processing Networks
- Wide Area Networks (WAN)
- Industrial, Medical & Military applications
Technical Specifications
| Applicable for | Drop cable, Indoor cable (0.9/2.0/3.0mm) |
|---|---|
| Optical fiber diameter | 125μm |
| Tight buffer diameter | 250μm |
| Fiber mode | Single mode |
| Operation time | About 100s (no fiber cut) |
| Insert loss | ≤ 0.3dB |
| Return loss | ≥50dB |
| Fastening strength of naked fiber | >5N |
| Fastening strength of naked fiber holder | >10N |
| Tensile strength | >50N |
| Using temperature | -40°C~+75°C |
OEM/ODM Service
We offer custom branding options for your products including cables, packaging bags, labels, and more.
Our OEM and ODM services are available to meet your specific requirements.
Packing & Shipping
Standard export packing options include carton boxes, wooden boxes, and wooden pallets.
Shipping methods available: international express (UPS, TNT, DHL), international air freight (CA, AA, EA), and sea freight.
