SC UPC Fast Connector for FTTH Applications with No Special Tool Reusable Design and Low Insertion Loss

  • SC UPC Fast Connector for FTTH Applications with No Special Tool Reusable Design and Low Insertion Loss
  • SC UPC Fast Connector for FTTH Applications with No Special Tool Reusable Design and Low Insertion Loss
  • SC UPC Fast Connector for FTTH Applications with No Special Tool Reusable Design and Low Insertion Loss
  • SC UPC Fast Connector for FTTH Applications with No Special Tool Reusable Design and Low Insertion Loss
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number FAST-55/60-SC-UPC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type FAST SC Color Blue, White
Insertion Loss 0.2dB Return Loss 55dB
Mode Single Mode, Multi Mode Length 55mm, 60mm
Highlight

ftth fast connector

,

quick connect fiber optic connectors
Leave a Message
Product Description
FTTH Solution Product SC UPC Fast Quick Connector 60mm 6cm
FTTH Solution Product SC/UPC Fast Connector is a quick connector designed for field-assembled optical fiber connections. It's widely used in fiber-to-the-home (FTTH) access optical networks for rapid drop cable assembly.
Key Features
  • Twin end-face of pre-embedded fiber is factory polished
  • Fiber optics aligned in V-groove through ceramic ferrule
  • Side cover design provides complete preservation of matching liquid
  • Ceramic ferrule with pre-embedded fiber polished to APC
  • Controllable FTTH cable length
  • Simple tooling, easy operation, portable style and reusable design
  • Standard connector size: 49.5×7×6mm or customizable per client request
Advantages
  • No special assembling tools required
  • Easy assembly with mechanical splice - no polishing needed
  • Quick learning curve (assembly within 1.5 minutes)
  • Low defect rate with removal and reusable features
Applications
  • CATV networks
  • Telecommunication networks
  • Test equipment
  • Local Area Networks (LANs)
  • Data processing networks
  • Industrial and military applications
Technical Specifications
Item Parameter
Cable Scope 3.0 x 2.0 mm Bow-type Drop Cable
Fiber Diameter 125μm (652 & 657)
Coating Diameter 250μm
Mode SM
Operation Time about 15s (exclude fiber presetting)
Insertion Loss ≤ 0.25dB (1310nm & 1550nm)
Return Loss ≤ -45dB
Success Rate >98%
Reusable Times >10 times
Tensile Strength >5 N
Tighten Strength of Coating >10 N
Temperature Range -40~+85°C
On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
Mechanical Durability (500 times) IL ≤ 0.3dB
Drop Test (4m concrete floor, once each direction, three times total) IL ≤ 0.3dB

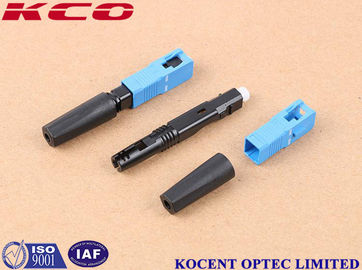

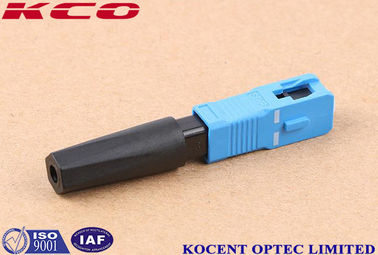

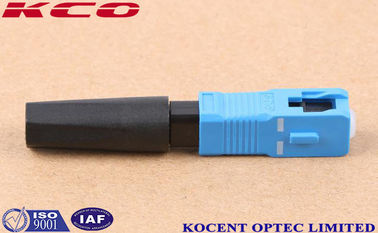

SC UPC Fast Connector for FTTH Applications with No Special Tool Reusable Design and Low Insertion Loss 0 SC UPC Fast Connector for FTTH Applications with No Special Tool Reusable Design and Low Insertion Loss 1 SC UPC Fast Connector for FTTH Applications with No Special Tool Reusable Design and Low Insertion Loss 2
OEM/ODM Services
We offer custom branding services for your logo on cables, packaging bags, labels, or any requested location. Our OEM and ODM services are available to meet your specific requirements.
Packing & Shipping
Standard export packing options include carton boxes, wooden boxes, and wooden pallets. Shipping methods available:
  • International express (UPS, TNT, DHL, etc.)
  • International air freight (CA, AA, EA, etc.)
  • Sea freight
