Field Assembly 2.0mm 3.0mm FTTX LC UPC Quick Connector Optical Fast Connector

Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number FAST-55/60-LC-UPC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type FAST LC Color Blue
Insertion Loss 0.2dB Return Loss 55dB
Mode Single Mode, Multi Mode Length 55mm 60mm
Highlight

ftth fast connector

,

quick connect fiber optic connectors

Leave a Message
Product Description

Field Assembly Connector,2.0mm 3.0mm FTTX LC /APC Quick Connector, 55mm 60mm



Field Assembly LC quick connector can provide a quick and easy of fiber in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. Fiber Fast Connector is used for field assembled optical fiber connector ,widely used in fiber to the home (FTTH) access optical networks, to assemble with drop cable quickly.



This connector system removes any requirement for epoxy, adhesive or costly curing ovens and polishing and fiber deface inspection.



LC Fast Connector make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology.



1. Twin end-face of pre embedded fiber is polished in the factory..

2. Fiber optics is aligned in V-groove through the ceramic ferrule.

3. Side cover design provide complete preservation of the matching liquid.

4. Ceramic ferrule with pre-embedded fiber is polished to APC.

5. Length of the FTTH cable is controllable

6. Simple tooling, easy operation, portable style and reusable design.



Features



1. ISO9001:2008, ROHS compliance

2. No special assembling tool
3. No epoxy or polishing required

4. Minimize the defect rate by features of removal and reusable.

5. Reusable and repeat operation times are up to 300

6. Low insertion loss and back reflection loss



Application:

1. Test equipment

2. Telecommunication networks

3. CATV

4. Local Area Networks(LANs)

5. Data processing networks

6. Industrial, Medical & Military



Specification

Item Parameter
Cable Scope 3.0 x 2.0 mm Bow-type Drop Cable
Fiber Diameter 125μm ( 652 & 657 )
Coating Diameter 250μm
Mode SM
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.25dB(1310nm & 1550nm)
Return Loss ≤ -45dB
Success Rate >98%
Reusable Times >10 times
Tensile Strength >5 N
Tighten Strength of Coating >10 N
Temperature -40~+85°C
On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
Mechanical Durability(500 times) IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total) IL ≤ 0.3dB

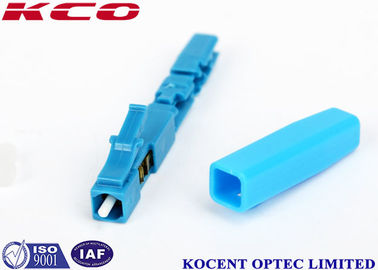

Field Assembly 2.0mm 3.0mm FTTX  LC UPC Quick Connector Optical Fast Connector 0

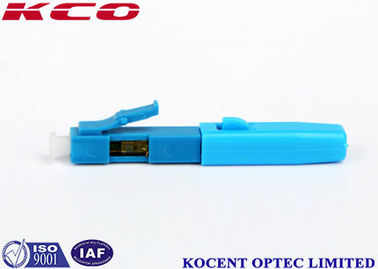

Field Assembly 2.0mm 3.0mm FTTX  LC UPC Quick Connector Optical Fast Connector 1

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
