Single Mode Optical Fiber Adapter Duplex Auto Shutter LC/APC LC/UPC Without Flange Coupler

  • Single Mode Optical Fiber Adapter Duplex Auto Shutter LC/APC LC/UPC Without Flange Coupler
  • Single Mode Optical Fiber Adapter Duplex Auto Shutter LC/APC LC/UPC Without Flange Coupler
  • Single Mode Optical Fiber Adapter Duplex Auto Shutter LC/APC LC/UPC Without Flange Coupler
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number LC/APC-DX-Shutter-NF
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Plastic module, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 500,000pcs/month
Product Details
Type LC/APC Material Plastic
Chanel Way Duplex, 2 Cores Insertion Loss 0.2dB
Return Loss 55dB Fiber Mode Singlemode, Monomode
Highlight

fibre optic adapter

,

fiber optic cable adapter
Leave a Message
Product Description
Duplex Auto Shutter LC/APC LC/UPC Green Blue Optical Fiber Adapter Without Flange
Description

Fiber Adapter (also known as flange, coupling) is a fiber optic connector for connection components.

The product is very variety, including FC, SC, ST, LC, MTRJ, as well as carry out the transfer between each other such as: ST-SC, FC-ST.

It’s widely used in optical distribution frame (ODF), fiber-optic communications equipment, instrumentation, the feature is stable and reliable.

LC/APC auto shutter fiber optic adapters are specially designed to suit FTTH applications.

The auto shutter is designed to prevent ingress of dust and also to prevent accidental exposure to laser.

Auto Shuttered adapter utilizes the conventional split ceramic sleeve method to align fibers and thus ensures the same precision and optical performance as the normal adapter.

All products are designed and controlled under IEC standard, meet the requirement of Telcordia GR-326 and TIA/EIA as well.

Feature
  • Push-and-pull bayonet structure, convenient for installation and operation.
  • Double the capacity, perfect space saving solution
  • Small size, large capacity
  • High return loss, Low insertion loss
  • Split zirconia (ceramic) ferrule is adopted.
  • Used to mate two connectors together.
  • Usually mounted in a distribution panel or wall box.
  • Color coded, allowing easy identification of the adapter type.
  • Available with single-fiber & multi-fiber patch cords and pigtails.
  • The adapters are available for all standard connector types in both SM and MM
Quick Information
Name:
LC/APC Duplex Shutter Adapter without flange
Fiber type:
Single mode (SM) 9/125
Signal way:
duplex (2 ways)
Material:
Plastic
IL:
less than 0.2dB
RL:
More than 50dB
P/N:
LC/APC-DX-Shutter-NF
Specification
ParameterUnitLC
SMMM
PCUPCAPCPC
Insertion Loss (Typical)dB≤0.2≤0.2≤0.2≤0.2
Return LossdB≥45≥50≥60≥30
ExchangeabilitydB≤0.2
RepeatabilitydB≤0.2
DurabilityTime>1000
Operating Temperature°C-40~75
Storage Temperature°C-45~85
Optical Performance
ItemPremium GradeStandard Grade
Insertion Loss≤0.1dB≤0.2dB
Durability1000 times1000 times
Environmental and Mechanism
PropertiesTest conditionConformanceTest result
Vibration10-55Hz, 1.5mm, 60minIEC61300-2-1≤0.2dB
Mating Durability1000 Mating, clean every 25 mating.IEC61300-2-2≤0.2dB
Impact1.5m, 8 dropsIEC61300-2-6≤0.2dB
Strength of Coupling Mechanism40N, 10Min, L=22-28cmIEC61300-2-12≤0.2dB
Temperature Cycling-40ºC to +75ºC, 40 cyclesIEC61300-2-22≤0.2dB
Temperature humidty cycling40ºC, 95%, 96HrIEC61300-2-21≤0.2dB
Operating Temperature-40ºC to +85ºC≤0.2dB
Storage Temperature-40ºC to +85ºC≤0.2dB
Product pictures

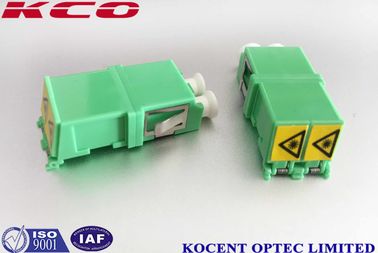

Single Mode Optical Fiber Adapter Duplex Auto Shutter LC/APC LC/UPC Without Flange Coupler 0

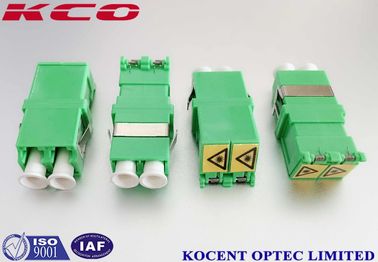

Single Mode Optical Fiber Adapter Duplex Auto Shutter LC/APC LC/UPC Without Flange Coupler 1

Reliability testing
ItemTest NameAdditional Insertion LossAdditional Return Loss
1Mechanical durability<0.2dB<5dB
2Repeatability<0.2dB<5dB
3Lock strength<0.2dB<5dB
4Low strength<0.2dB<5dB
5High temperature<0.2dB<5dB
6Steaming<0.2dB<5dB
7Temperature cycle<0.2dB<5dB
8Vibration<0.2dB<5dB
9Drop<0.2dB<5dB
OEM/ODM Service

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing

According to Stardard Export Packing.

  • Carton box
  • Wooden box
  • Wooden pallet

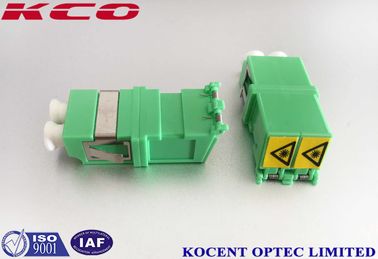

Single Mode Optical Fiber Adapter Duplex Auto Shutter LC/APC LC/UPC Without Flange Coupler 2

Shipping
  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea

Single Mode Optical Fiber Adapter Duplex Auto Shutter LC/APC LC/UPC Without Flange Coupler 3
