Single Mode Optical Fiber Adapter Duplex Auto Shutter LC/APC LC/UPC Without Flange

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number LC/APC-DX-Shutter-NF
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Plastic module, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 500,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type LC/APC Material Plastic
Chanel Way Duplex, 2 Cores Insertion Loss 0.2dB
Return Loss 55dB Fiber Mode Singlemode, Monomode
High Light

fibre optic adapter

,

fiber optic cable adapter

Leave a Message
Product Description

Duplex Auto Shutter LC/APC LC/UPC Green Blue Optical Fiber Adapter Without Flange​



Description:

- Fiber Adapter (also known as flange, coupling) is a fiber optic connector for connection components.

- The product is very variety, including FC, SC, ST, LC, MTRJ, as well as carry out the transfer between each other such as: ST-SC, FC-ST.

- Tt’s widely used in optical distribution frame (ODF), fiber-optic communications equipment, instrumentation, the feature is stable and reliable.

- LC/APC auto shutter fiber optic adapters are specially designed to suit FTTH applications.

- The auto shutter is designed to prevent ingress of dust and also to prevent accidental exposure to laser.

- Auto Shuttered adapter utilizes the conventional split ceramic sleeve method to align fibers and thus ensures the same precision and optical performance as the normal adapter.

- All products are designed and controlled under IEC standard, meet the requirement of Telcordia GR-326 and TIA/EIA as well.



Feature:

- Push-and-pull bayonet structure, convenient for installation and operation.

- Double the capacity, perfect space saving solution

- Small size, large capacity

- High return loss, Low insertion loss

- Split zirconia (ceramic) ferrule is adopted.

- Used to mate two connectors together.

- Usually mounted in a distribution panel or wall box.

- Color coded, allowing easy identification of the adapter type.

- Available with single-fiber & multi-fiber patch cords and pigtails.

- The adapters are available for all standard connector types in both SM and MM


Quick Information:
- Name: LC/APC Duplex Shutter Adapter without flange
- Fiber type: Single mode (SM) 9/125
- Signal way: duplex (2 ways)
- Material: Plastic
- IL: less than 0.2dB
- RL: More than 50dB
- P/N: LC/APC-DX-Shutter-NF



Specification:

Parameter Unit LC
    SM MM
    PC UPC APC PC
Insertion Loss (Typical) dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Return Loss dB ≥45 ≥50 ≥60 ≥30
Exchangeability dB ≤0.2
Repeatability dB ≤0.2
Durability Time >1000
Operating Temperature °C -40~75
Storage Temperature °C -45~85





Optical Performance
Item Premium Grade Standard Grade
Insertion Loss ≤0.1dB ≤0.2dB
Durability 1000 times 1000 times



Environmental and Mechanism
Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling -40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



Product pictures:

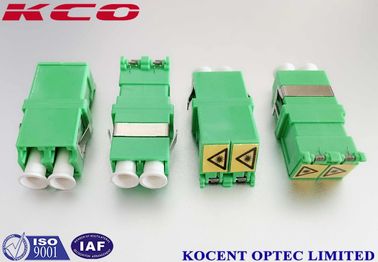

Single Mode Optical Fiber Adapter Duplex Auto Shutter LC/APC LC/UPC Without Flange 0
Single Mode Optical Fiber Adapter Duplex Auto Shutter LC/APC LC/UPC Without Flange 1





Reliability testing:

Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Single Mode Optical Fiber Adapter Duplex Auto Shutter LC/APC LC/UPC Without Flange 2

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
Single Mode Optical Fiber Adapter Duplex Auto Shutter LC/APC LC/UPC Without Flange 3
