KCO-400x Handhold Fiber Optic Microscope / Ferrule Checking Device

  • KCO-400x Handhold Fiber Optic Microscope / Ferrule Checking Device
  • KCO-400x Handhold Fiber Optic Microscope / Ferrule Checking Device
  • KCO-400x Handhold Fiber Optic Microscope / Ferrule Checking Device
Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-200x
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details paper bag, carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T,Western Union,L/C
Supply Ability 200,000 pcs/ month
Product Details
P/N KCO-400x Micro Scope 400x
Ferrule 250um Testing Fiber Single Mode SM, Multimode MM
Weight 450g Type Handle, Handheld
Highlight

fiber optic accessories

,

fiber optic tools and equipment
Leave a Message
Product Description
KCO-400x Handheld Fiber Optic Microscope / Ferrule Checking Device
This mini handheld fiber microscope is designed for inspecting fiber terminations in field applications. With excellent optical performance and integrated laser safety filters, it provides critical visualization of fiber end faces, making scratches highly visible. Ideal for field termination in sensitive installations.
Key Features
  • Power Source: AAA batteries
  • Light Source: White LED rated for 100,000 hours
  • Equipped with LED illumination and laser filter for eye protection
  • Provides clear bright images with smooth focus control
  • Rubber eyecup for comfortable use
  • 200x, 400x Optical Magnification
  • Includes 2.5mm and 1.25mm adapters
Technical Specifications
Model KCO-200/400X
Optical Magnification 200x, 400x
Size 190mm/7.48"L X 45mm/1.77"D
Weight 0.45 Kg
Color Black
Power Source 3 x 1.5v button batteries (batteries removed for export)
Safety Filter Built-in IR filter
Light Source White LED, rated for 100,000 hours
Illumination Dual-illumination (coaxial and oblique)
Adapter Interface User interchangeable adapters
Controls Momentary on/off switch for light source, Fine Focus control wheel
Adapter Universal Adapter (2.5mm) Compatible with ST, FC, SC, 2.5mm DIN
Switch 1. Automatic on/off switch for light source
2. Two minutes delayed on/off switch
Package 20PCS/CARTON
Product Images

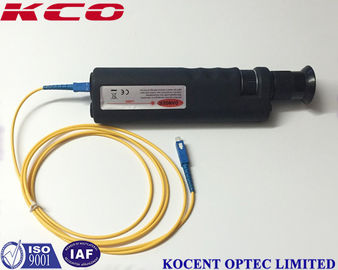

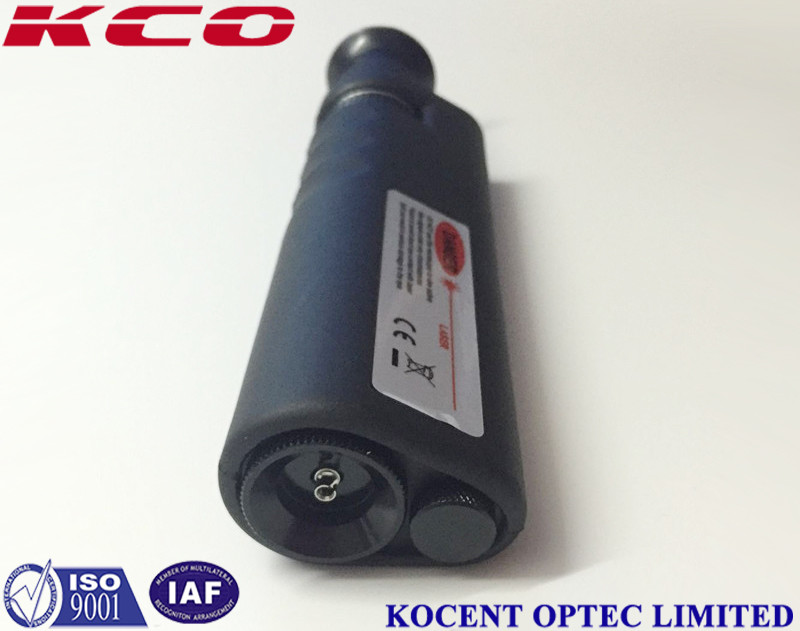

KCO-400x Handhold Fiber Optic Microscope / Ferrule Checking Device 0 KCO-400x Handhold Fiber Optic Microscope / Ferrule Checking Device 1 KCO-400x Handhold Fiber Optic Microscope / Ferrule Checking Device 2 KCO-400x Handhold Fiber Optic Microscope / Ferrule Checking Device 3
Laser Safety Attention
Do not use any fiber inspection microscopes to view active fiber signals under any circumstances. Active fiber signals contain high-powered laser light that can cause serious eye damage. Our fiber inspection microscopes may magnify laser light, and direct eye contact with magnified laser light must be avoided. Laser safety filters are no substitute for practicing good laser safety. If unfamiliar with laser safety practices, seek professional training or consult distributors.
Delivery & Packaging
Delivery time: within 3-5 days after payment

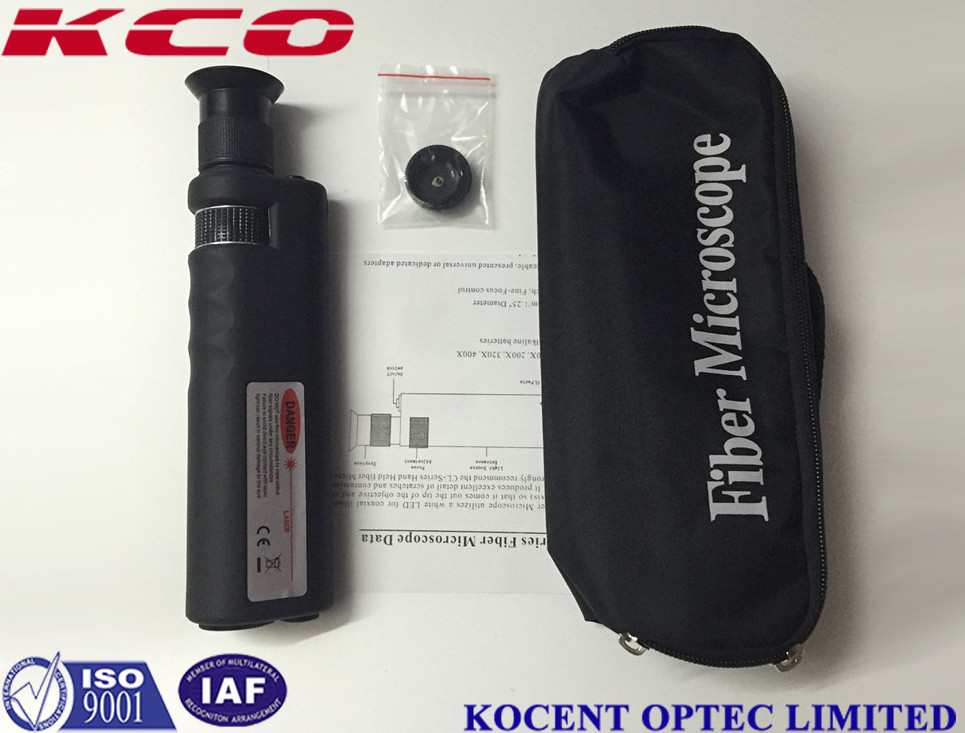

Package Contents
  • 1 x 200x CL series Fiber Scope
  • 1 x 1.25mm Adaptor (EXTRA) (inside small pocket of bag)
  • 1 x 2.5mm Adaptor (Installed)
  • 1 x Soft Carrying Case
  • 1 x English Operation Manual
OEM/ODM Services
We offer OEM services for custom branding on product labels or packaging. Contact us with your detailed requirements for more information.
Shipping Options
Standard export packing with carton box, wooden box, or wooden pallet. Shipping via international express (UPS, TNT, DHL), international air, or by sea.
