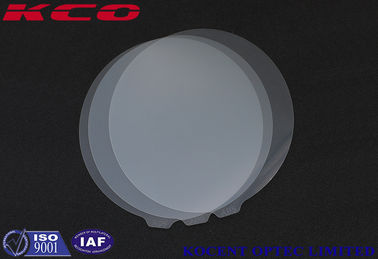

0.5um Diamond Polishing Fiber Optic Polishing Film 127mm for Ceramic and Metal Ferrules
| Place of Origin | China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001 |
| Model Number | KCO-ADS |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | paper bag, carton box |
| Delivery Time | 2~5 days after get payment |
| Payment Terms | T/T,Western Union,L/C |
| Supply Ability | 200,000 pcs/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| P/N | KCO-ADS | Grade | 0.01-45 μm |
|---|---|---|---|
| Polishing Scope | Ceramic Ferrule, Metal Ferrule | Disk Size | Φ127mm(5inch) |
| Sheet Size | 114mm*114mm,152mm*152mm(6inch),228*228mm(9inch) | Thickness | 0.01~30um |
| Highlight | fiber optic polishing machine,fiber optic cutting machine |
||
Product Description

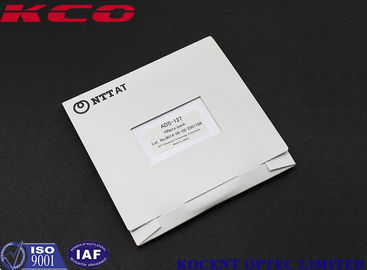

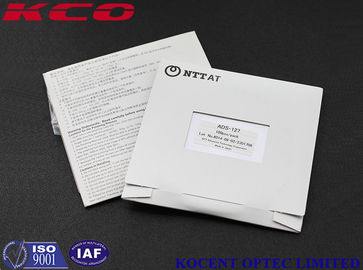

ADS 127 Fiber Optic Polishing Film NTTAT 0.5um Grinding Paper 5'' 127mm For Polishing Jig
ADS-127 Fiber Optic Polishing Film Diamon Polishing Lapping NTTAT 0.5um Grinding Paper
The fiber optic polishing film, also called fiber optic grinding paper, is available from Kocent Optec Limited at competitive prices with options for both cost-effective Chinese products and high-quality Japanese alternatives.
Product Description
- Essential final component in fiber optic jumper wire grinding procedures
- Minimizes scratches and eliminates binding residue on fiber surfaces after polishing
- Extended service life reduces jumper production costs
- Features precisely graded minerals (diamond, aluminum oxide, silicon carbide, etc.) on high-strength polyester backing for uniform finish
- Available in 0.01-45 μm grades with optional PSA (Pressure Sensitive Adhesive) backing
- Designed for high-volume manufacturing with quick-change tooling
- Delivers exceptional performance: APC back reflection as low as -70 dB, UPC back reflection as low as -60 dB, insertion loss 0.2 dB typical
- Provides super centering accuracy with low undercut and excellent connector endface polishing quality
Key Features
- Superior grinding efficiency for high-resolution surface finishing
- Consistent performance across all polishing applications
- High durability reduces operational costs
- Compatible with both dry and wet polishing methods
- Stainless steel polishing plate ensures reliability and stability
- Dual motor design provides sufficient power
- High-precision machinery with minimal plane tolerance
- Adjustable rotation speed and timing with simple operation
- Exceptional stability with 5-10 year operational lifespan
Product Images
Applications
| Product Type | Application |
|---|---|
| D (Diamond) |
|
| SC (Silicon Carbide) |
|
| AO (Aluminum Oxide) |
|
| CO (Cerium Oxide) |
|
| SO (Silicon Oxide) |
|
Specifications
| Type | D (Diamond) | SC (Silicon Carbide) | AO (Aluminum Oxide) | CO (Cerium Oxide) | SO (Silicon Oxide) |
|---|---|---|---|---|---|
| Grit Size/um | 30 | Green | Light Green | Green | |
| 20 | White | ||||
| 16 | White | ||||
| 15 | Yellow-Green | Tawny | Light Green | Brown | |
| 12 | Yellow | ||||
| 9 | Blue | Orange | Gray-green | Blue | |
| 6 | Yellow | ||||
| 5 | Gray-green | White | |||
| 3 | Pink | Tan | Pink & White | ||
| 2 | Gray-green | Bright Green | |||
| 1 | off-white | Lavender | Gray-green | Blue | |
| 0.5 | off-white | Brown-yellow | White | White | |
| 0.3 | White | Dark Red | |||
| 0.2 | Grey | ||||
| 0.1 | Light Brown | White | |||
| 0.02 | Transparent | ||||
| 0.01 | Transparent | ||||
| Recommended Polishing Medium | Water/Oil | Water/Oil | Water/Oil | SOQ-12D | Water |
Standard Sizes
- Disk: Φ70mm, Φ110mm, Φ127mm (5inch), Φ203mm (8inch)
- Sheet: 114mm*114mm, 152mm*152mm (6inch), 228*228mm (9inch)
Note: Other film sizes are available upon request.
Fiber Optic Patch Cord Production Process
OEM/ODM Service
We offer custom branding services for your products including cables, packaging, labels, and more. Our OEM and ODM services can accommodate your specific branding requirements.
Packing & Shipping
Packing: Standard export packing options including carton boxes, wooden boxes, and wooden pallets.
Shipping Options:
- International express services (UPS, TNT, DHL)
- International air freight (CA, AA, EA)
- Sea freight
