Stainless Steel 316 SC Connector Fiber Optic Grinding Fixture

Stainless Steel 316 SC Connector Fiber Optic Grinding Fixture

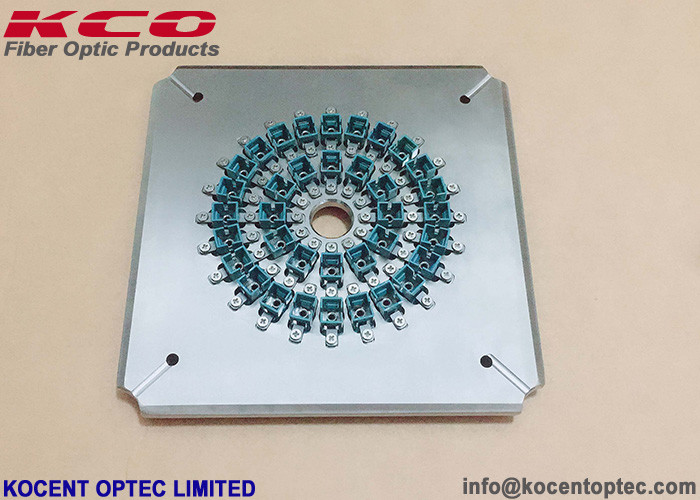

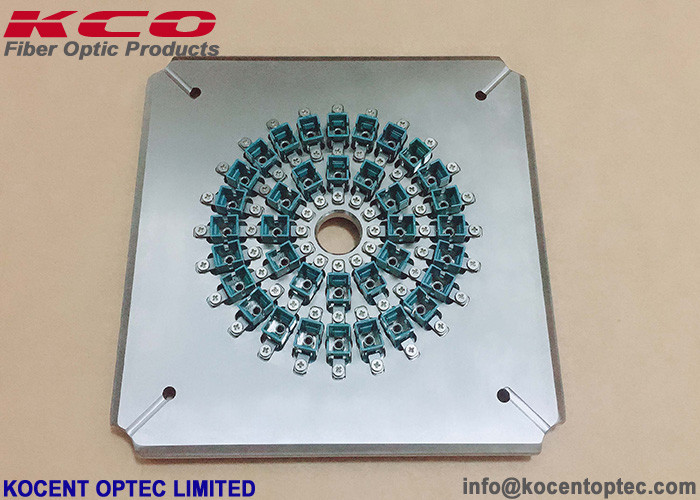

Stainless Steel 316 SC Connector Fiber Optic Grinding Fixture Stainless Steel 316 SC Connector Fiber Optic Grinding Fixture

Large Image :  Stainless Steel 316 SC Connector Fiber Optic Grinding Fixture

Product Details:

Place of Origin: China
Brand Name: KCO, Kocent Optec Limited
Certification: RoHS, ISO
Model Number: KCO-4JIG-SCU-24

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: paper bag, carton box
Delivery Time: 2~5 days after get payment
Payment Terms: T/T, Western Union, L/C
Supply Ability: 200,000 pcs/ month
Detailed Product Description
P/N: KCO-4JIG-SCU-24 Grade: 0.3dB, 3D
Polishing Scope: SC Connector Disk Size: 179mm
Connector: 24 Connector Machine: Corner Pressure Polishing Machine
High Light:

Stainless Steel 316 Grinding Jig

,

SC Connector Polishing Jig



SC Fiber Optic Grinding Fixture Jigs Four Coners Pressure Polishing Machine Patch Cord Production



Description:

- This grinding jigs is designed for grinding and polishing SC/UPC connectors. It is using to fix the fiber optic connector when polishing.

- It is one of most importance part in the fiber optic patch cord production line.
- Optical fiber connector end face has excellent polishing quality, high 3D pass rate and low repair rate
- Simple and flexible operation, SC, FC, LC, ST, E2000, SMA, ... can be used by disassembling interchangeable adapters, but it requires professional operation
- The product is made through multiple special processes, which is wear-resistant, rust-proof, and not easily deformed.

- The optical fiber polishing jig is IPC Structure, Independent compression of each connector. The optical fiber polishing jig pass rate with Interference 98%.

- The optical fiber polishing jig using high quality steel with heated treat, the hardened steel S136 provide long service life. This optical fiber polishing jig can design the jig of SC, FC, ST, LC, MPO and E2000, FA, etc, according to the customer request.

This optical fiber polishing jig is high stability and good surface quality.



Features:

- Made with high quality, by using hardened steel S13;

- Adopt central pressurized way to polish, more stable;
- The plugs of connector polishing jig can be interchanged, prolong the service life of grinding plate;
- This fiber polishing jig adopt independent pressurized way, eliminate ferrules show the different length effects on polishing;
- Really trustworthy LC/UPC connector polishing jig.
Note: All kinds of fiber polishing jigs/Polishing Module can be customized according to customers' requirement.







Specification

Product Size
174mm*174mm*5.1mm
Wet weight
About 1.2kg
Application
Fixed FC / APC Fiber Connector Polished
Suitable Fiber Connector Polisher
Four-corner pressure optical fiber connector polishing machine
