Waterproof Connector Fiber Optic Jumper YG ZLTC YZCO2P 4P Telianthus Field Tactical

Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number 1P 2P 4P 6P 8P 12P
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 YZCO2P YZCO4P Connector 2 YZCO2P YZCO4P, FC, LC, SC, ST, E2000, ...
Core 1 2 4 6 8 12 Cores Insertion Loss 0.2dB
Return Loss 55dB Cable Cover Material LSZH, TPU
High Light

fiber optic pigtail cables

,

patch cord pigtail

Leave a Message
Product Description

YG ZLTC YZCO2P 4P Telianthus Field Tactical Waterproof Connector Optics Fibre Patch Jumpers

Introduction:

Kocent Optec Limited is one of lead outdoor field fiber optic patch cord manufacturer. Special is in all type of field fiber optic patch cord with waterproof connector, such as: Military Connector, PDLC, ODVA, ...

 With more than 10 years of production exprerience, we supply standard telecom and broadcast television grade of patch cord for customers. All of goods are tested before shipment. We provide OEM and ODM service. Contact with our sales team to get more informations about us and products.

 Field tactical waterproof connector is also named YG telianthus connector, ZLTC YZCO.

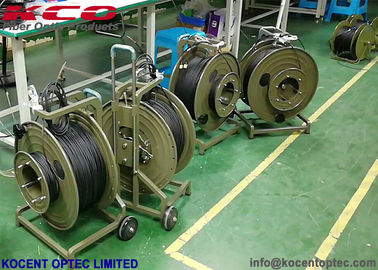

It was early designed by China Fiber & Electric Research Institute, and used for military field telecommunication wirings, normally it's used with field tactical cable reels rolling car.

There's no plug or socket, male or female. Two connectors can be connected directly (without adapter) with pins and threads, the connection is very stable and can stand large impulse and tension.

The water-proof grade is IP65.

FTTA Water-proof Army Field Military Tactical Fiber Optic Patch Cord Connector is designed for military field fiber optic cable supporting, neutral bayonet locking structure can be realized head and seat, head and head, seat and seat fast any connection.

With multi-core once connected and blind insertion;connection loss, high reliability; rugged, waterproof, dustproof, resistance to harsh environments, etc.,

Can be used in a variety of optical fiber communication network field army, military computer systems, airborne or ship borne equipment, repair and other outdoor optical cable system temporary connection.

 Product is available in 2P, 4P, 6P, 8P, 12P. Most common use 2P and 4P



Application:
● Military communication system
● Passive optical networks (PON)
● Coal, oil, natural gas, geological exploration
● Broadcast television, temporary communication and so on.



Features:

● Wiring compact all-dielectric structure, the inner sleeve is 0.9mm fiber, the cable has a high strength-weight ratio, allowing for quick wiring;
● High-strength fiber composite structure secondary coating offers the best performance and minimum temperature of the additional attenuation cables in harsh conditions to ensure the reliability and service life;
● A special high-strength, flexible type central reinforcing element, to ensure fiber strength and bending properties;
● Large area of aramid reinforced fiber optic cable to provide a high mechanical strength;
● Small tight pitch SZ stranded helical twisted fibers and aramid fibers single combined to ensure the field fiber optic cable has greater tensile strain capacity;
●Environmental friendly, Comply with RoHS.

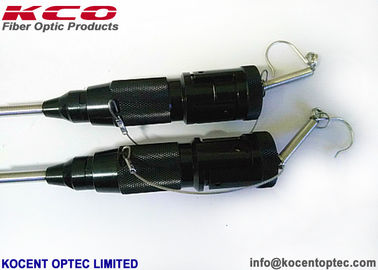

Products photo:

Waterproof Connector Fiber Optic Jumper YG ZLTC YZCO2P 4P Telianthus Field Tactical 0

Waterproof Connector Fiber Optic Jumper YG ZLTC YZCO2P 4P Telianthus Field Tactical 1

Waterproof Connector Fiber Optic Jumper YG ZLTC YZCO2P 4P Telianthus Field Tactical 2



Specifications:

Parameters Standard Fiber Cable Assemblies
Connector Side A: SC with armored
  Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC), NSN, Ericson, Huawei, ...
Fiber count

2 cores
4 cores
6 cores
8 cores
12 cores

Fiber Type

SM
G.652D
G.657A (A1, A2, B3, ...)



MM
OM1
OM2
OM3
OM4
OM5)

Jacket Materials

LSZH
TPU
PE

Cable diameter

4.8mm
5.0mm
5.5mm
6.0mm
6.5mm
7.0mm

Testing Wavelengths

SM:
1310±30nm
1550±30nm



MM:
850±30nm
1300±30nm

Insertion Loss(dB)
TIA/EIA-455-107
≤ 0.3dB(PC/UPC/APC)
≤ 0.3dB(UPC)
Return Loss(dB)
TIA/EIA-455-107
≥45dB (PC/UPC)
≥55dB (APC)
≥35dB (UPC)
Exchange ability ≤ 0.2dB
Cable Assemblies Pigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord
Operating Temperature -14℃~+ 85℃
Storage Temperature -40℃~+85℃


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Waterproof Connector Fiber Optic Jumper YG ZLTC YZCO2P 4P Telianthus Field Tactical 3


Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
Waterproof Connector Fiber Optic Jumper YG ZLTC YZCO2P 4P Telianthus Field Tactical 4
