Single Mode Fiber Optic Fast Connector FTTH FTTB FTTO ESC250D 0.9mm Cable

  • Single Mode Fiber Optic Fast Connector FTTH FTTB FTTO ESC250D 0.9mm Cable
  • Single Mode Fiber Optic Fast Connector FTTH FTTB FTTO ESC250D 0.9mm Cable
  • Single Mode Fiber Optic Fast Connector FTTH FTTB FTTO ESC250D 0.9mm Cable
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number ESC250D/UPC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N ESC250D/UPC Color Blue
Insertion Loss 0.2dB Return Loss 55dB
3D Pass Length 50mm 55mm 60mm
Highlight

ftth fast connector

,

field installable fiber optic connector
Leave a Message
Product Description

ESC250D Fiber Optic Fast Connector Field Assembly Quick Connector FTTH FTTB FTTO



Kocent Optec Limited is one of leader supplier of fiber optic fast connector in China.
All of our fast connector meet Telecom requirement as Viettel, VNPT, ...

Logo print is free for quantity more than 10k (pcs). Logo Lettering is free for quantity more than 100k (pcs)

Contact with our sales team for your OEM and ODM order.



Techenical Data:

P/N: ESC250D UPC

Size: 52×9×8.1mm

Optical fiber: 0.9mm cable

Plug type: SC/APC, SC/UPC

Diameter of fiber: 0.125mm

Fiber Mode: single mode

IL: less 0.5dB (0.2dB type)

3D: pass 80%

Use for: 2.0mm×3.0mm & 2.0mm×1.6mm FTTH drop cable



Descriptions:

Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine.

This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver.

The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove.

Also, transparent design of the side cover which allows visual inspection.

The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing.

The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule.

Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination.



Application:

Patch panels

Distribution frames

Maintenance or emergency restoration of fiber networks

​FTTH Outlets

Connection at the desk for LAN environments

Suitable for FTTx butterfly type cable(both square and circle shape are available)



Feature:

- Factory-installed fiber stub.

- No epoxy and polishing required, No special tools needed when installed.

- Allows up to three re-termination result.

- Easily installed, Quick and easy fiber termination in the field.

- Only 30 seconds needed to learn the process of installation and making.

- Cost effective, Warranty: One year.

- Fast connecting and repeat, No special tools needed when installed.

- Can be made on-site without splicing connectors.

- Eliminates cable excess length and pigtail splice storage.

- Can be intalled and maked repeatedly thus avoiding loss.

- Low insertion loss ,high return loss;

- Reliable optical performance;

- Good connection stability;

- Convenient for field installation;

- Installs fast,Operates easy ;

- Low cost.



Specification

Item Paramete
Cable Scope 3.0 x 2.0 mm Bow-type Drop Cable
2.0/3.0 indoor cable
Fiber Diameter 125μm ( 652 & 657 )
Coating Diameter 250μm
Mode SM
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.3dB(1310nm & 1550nm)
Return Loss ≤ -40dB
Success Rate >98%
Reusable Times >10 times
Tighten Strength of Naked Fiber >5 N
Tensile Strength >50 N
Teperature -40~+85℃
On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
Durabiltiy (500 times mating) IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total) IL ≤ 0.3dB



Product photo:

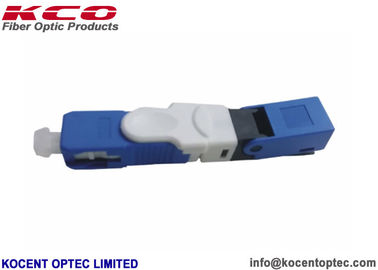

Single Mode Fiber Optic Fast Connector FTTH FTTB FTTO ESC250D 0.9mm Cable 0

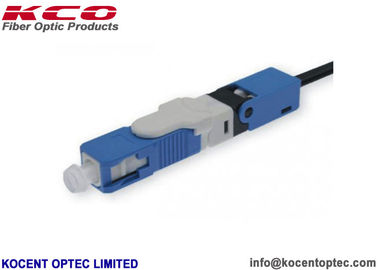

Single Mode Fiber Optic Fast Connector FTTH FTTB FTTO ESC250D 0.9mm Cable 1



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

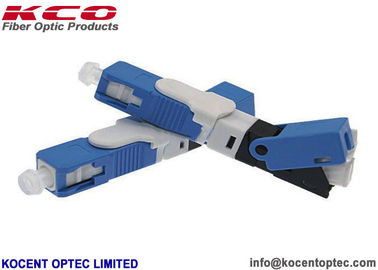

Single Mode Fiber Optic Fast Connector FTTH FTTB FTTO ESC250D 0.9mm Cable 2
