0.2dB Insertion Loss 55dB Return Loss 3D Pass Fiber Optic Fast Connector for FTTH Field Assembly

  • 0.2dB Insertion Loss 55dB Return Loss 3D Pass Fiber Optic Fast Connector for FTTH Field Assembly
  • 0.2dB Insertion Loss 55dB Return Loss 3D Pass Fiber Optic Fast Connector for FTTH Field Assembly
  • 0.2dB Insertion Loss 55dB Return Loss 3D Pass Fiber Optic Fast Connector for FTTH Field Assembly
  • 0.2dB Insertion Loss 55dB Return Loss 3D Pass Fiber Optic Fast Connector for FTTH Field Assembly
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number ESC250D/APC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N ESC250D/APC Color Green
Insertion Loss 0.2dB Return Loss 55dB
3D Pass Length 50mm 55mm 60mm
Highlight

ftth fast connector

,

field installable fiber optic connector
Leave a Message
Product Description
0.2dB Fiber Optic Fast Connector Assembly Telecom FTTH ESC250D APC 3D Pass
Product Description

ESC250D APC 3D Pass 0.2dB Fibre Optical Field Assembly Fast Connector for Telecom FTTH applications.

Technical Data
  • P/N: ESC250D APC
  • Size: 52*9*8.1mm
  • Optical fiber: 0.9mm cable
  • Plug type: SC/APC
  • Diameter of fiber: 0.125mm
  • Fiber Mode: single mode
  • IL: less 0.5dB (0.2dB type)
  • 3D: pass 80%
  • Use for: 2.0mm*3.0mm & 2.0mm*1.6mm FTTH drop cable
Specification
ITEM Technical Parameters
Applicable for Drop cable / Indoor cable
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter SM(9/125), MM(50/125, 62.5/125)
125μm (657A & 657B)
Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm)
Return loss > 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber >5 N
Fastening strength of naked fiber holder >10 N
Tensile strength >50 N
Using temperature -40~+75°C
Key Features
  • Factory-installed fiber stub
  • No epoxy and polishing required, no special tools needed
  • Allows up to three re-termination results
  • Quick and easy fiber termination in the field (30 second learning curve)
  • Cost effective with one year warranty
  • Can be made on-site without splicing connectors
  • Eliminates cable excess length and pigtail splice storage
Product Design
  • Double V-groove structure design for stable and reliable fiber optic docking
  • Normally closed elastic fastening method for excellent technical indicators
  • Linkage structure design maintains reserved microbend when docking
  • Applicable to 2.0mm*3.0mm & 2.0mm*1.6mm butterfly cable
  • Tensile strength > 30N / 2min
  • Simple operation with high installation success rate and long life cycle
Applications
  • Patch panels and distribution frames
  • Maintenance or emergency restoration of fiber networks
  • FTTH Outlets
  • LAN environment desk connections
  • FTTx butterfly type cable (both square and circle shape compatible)
Product Images

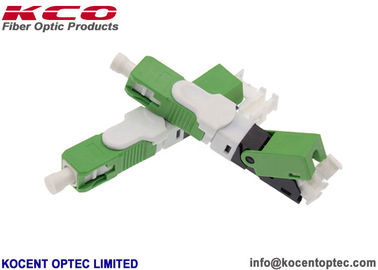

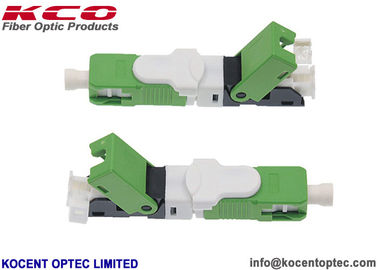

0.2dB Insertion Loss 55dB Return Loss 3D Pass Fiber Optic Fast Connector for FTTH Field Assembly 0 0.2dB Insertion Loss 55dB Return Loss 3D Pass Fiber Optic Fast Connector for FTTH Field Assembly 1
OEM/ODM Service

Kocent Optec Limited is a leading supplier of fiber optic fast connectors in China. All our fast connectors meet Telecom requirements including Viettel and VNPT standards.

  • Free logo print for orders >10k pcs
  • Free logo lettering for orders >100k pcs

Contact our sales team for OEM and ODM orders.

Packing & Shipping

Standard export packing available in carton box, wooden box, or wooden pallet.

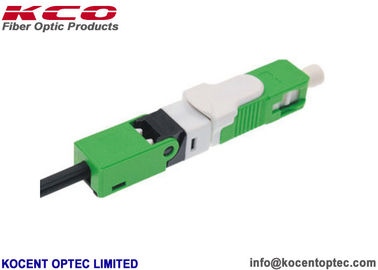

0.2dB Insertion Loss 55dB Return Loss 3D Pass Fiber Optic Fast Connector for FTTH Field Assembly 2

Shipping options include:

  • International express (UPS, TNT, DHL)
  • International air freight (CA, AA, EA)
  • Sea freight
0.2dB Insertion Loss 55dB Return Loss 3D Pass Fiber Optic Fast Connector for FTTH Field Assembly 3
