Waterproof Armored Outdoor Field Fiber Optic Patch Cord with Mini SC/APC Connector

  • Waterproof Armored Outdoor Field Fiber Optic Patch Cord with Mini SC/APC Connector
  • Waterproof Armored Outdoor Field Fiber Optic Patch Cord with Mini SC/APC Connector
  • Waterproof Armored Outdoor Field Fiber Optic Patch Cord with Mini SC/APC Connector
  • Waterproof Armored Outdoor Field Fiber Optic Patch Cord with Mini SC/APC Connector
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-HW-MNSCA-Armored-5.0mm-LSZH-xxxM
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 Huawei Mini SC/APC Connector 2 FC, LC, SC, ST, E2000, ...
Core 1 2 4 6 8 12 Cores Insertion Loss 0.2dB
Return Loss 55dB Cable Cover Material LSZH, TPU
Color Black Fiber Type SM, MM
Highlight

fiber optic pigtail cables

,

patch cord pigtail
Leave a Message
Product Description
Mini H SC APC Waterproof Connector Armored Outdoor Field Fiber Optical Patch Cable
Mini SC assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.
Key Features
  • Provides superior weather resistance for FTTA and other outdoor applications
  • Threaded style coupling for secure connections
  • Bend protection for installation and long term use
  • Can be installed without special tooling
  • Suitable for temperature extremes (-40°C to +85°C)
  • Available in 1-core, 2-core, 4-core, 6-core, 8-core, and 12-core configurations
Applications
  • 3G/4G base stations
  • Aerospace & Defense
  • Equipment diagnosis
  • FTTA, FTTP, FTTX networks
  • WIMAX, BBU, RRU, RRH, LTE systems
  • Telecommunication networks
  • Data center system networks
  • Military applications
Technical Parameters
Parameter Value
Insertion Loss ≤0.2dB
Return Loss ≥50dB
Fiber mode Single-mode/Multi-mode
Operating wavelength 1310nm, 1550nm
Repeatability ≤0.1
Interchangeability ≤0.2dB
Durability ≤0.2dB
Operating Temperature -40°C to +85°C
Cable Constructions
  • Type 1: SUS Spiral Steel Armored + Kevlar + LSZH/TPU + 2*Buffered 0.9mm fiber (4.8mm/5.0mm)
  • Type 2: SUS Spiral Steel Armored + Kevlar + LSZH/TPU + 2*2.0mm cable (7.0mm)
  • Custom constructions available
Product Images

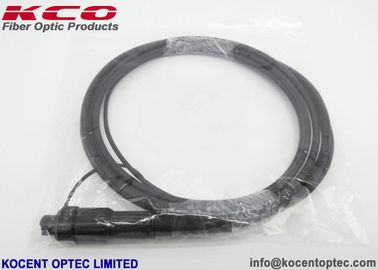

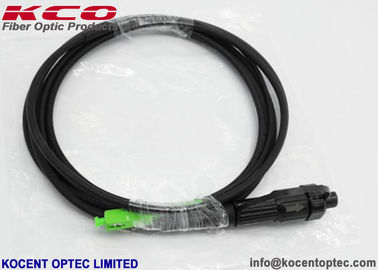

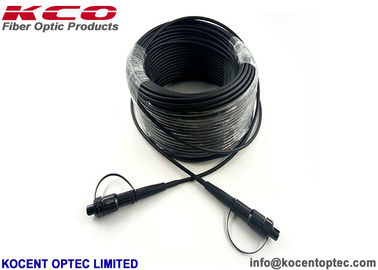

Waterproof Armored Outdoor Field Fiber Optic Patch Cord with Mini SC/APC Connector 0 Waterproof Armored Outdoor Field Fiber Optic Patch Cord with Mini SC/APC Connector 1 Waterproof Armored Outdoor Field Fiber Optic Patch Cord with Mini SC/APC Connector 2 Waterproof Armored Outdoor Field Fiber Optic Patch Cord with Mini SC/APC Connector 3
Detailed Specifications
Parameters Standard Fiber Cable Assemblies
Connector Side A: SC with armored
Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC, NSN, Ericsson, Huawei
Fiber count 2 cores, 4 cores, 6 cores, 8 cores, 12 cores
Fiber Type SM: G.652D, G.657A (A1, A2, B3)
MM: OM1, OM2, OM3, OM4, OM5
Jacket Materials LSZH, TPU, PE
Cable diameter 4.8mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm
OEM/ODM Services

We offer custom branding options for cable, packaging, and labels. Our OEM and ODM services include:

  • Custom logo placement
  • Custom packaging solutions
  • Product customization
Waterproof Armored Outdoor Field Fiber Optic Patch Cord with Mini SC/APC Connector 4
Packaging & Shipping
  • Packaging: Standard export packing in carton boxes, wooden boxes, or on wooden pallets
  • Shipping Methods: International express (UPS, TNT, DHL), air freight, or sea freight
  • Export Ports: Shenzhen, Hong Kong, Ningbo
  • Export Airports: Shenzhen, Hong Kong, Hangzhou, Shanghai
