Single Mode Fiber Optic Pigtail Cables , G657B3 Simplex Patch Cord Pigtail MU UPC
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO |
| Certification | RoHS, ISO9001 |
| Model Number | MU |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | PE bag, carton box, wooden pallet |
| Delivery Time | 2~7 days after get payment |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 50,000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector 1 | MU/UPC | Connector 2 | SC, LC, FC, ST, DIN, E2000, ... |
|---|---|---|---|
| Fiber Count | Simplex, Duplex, Multi-fibers | Insertion Loss | 0.2dB |
| Return Loss | 50dB | Fiber Type | OS2, OM1, OM2, OM3, OM4, OM5 |
| Color | Yellow, Orange, Aqua, Violet, Lime Green | Cover | PVC, LSZH |
| Highlight | fiber optic pigtail cables,patch cord pigtail |
||
Product Description
MU UPC Single Mode G657B3 Fibre Optical Patch Cord Simplex Cable LSZH
Introduction:
1. Fiber patch cable is the fiber which connects the computer with equipment.
2. It is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical andthe terminal box.
3. MU connectors are a 1.25mm diameter ferrule for compact multiple optical connectors and self-retentive mechanism for backplane applications.
4. It’s application is for high-speed data communications, voice networks, telecommunications and high-density DWDM applications.
Technical Standard:
1. Insertion Loss:
UPC ≤ 0.2dB
APC ≤ 0.3dB
Typical: 0.1dB;
2. Return Loss:
SM UPC ≥ 55dB, APC ≥ 65dB;
MM UPC ≥ 35dB
3. Interchangeability: ≤0.2dB
4. Salt Spray : ≤0.2dB
5. Repeatability : (1000 times) ≤0.1dB
6. Vibration: (550Hz 1.5mm) ≤0.1dB
7. High Temperature : ( +85 sustain 100 hours) ≤0.2dB
8. Low Temperature : (-40 sustain 100 hours) ≤0.2dB
9. Temperature Circularly: (-40+85 sustain 100 hours) ≤0.2dB
10. Humidity : (+25+65 93 R.H.100 hours) ≤0.2db
11. Apex Offset: 0μm≤≤50μm
12. Radius of Curvature: 7mm≤≤25mm
13. Cable Type: Simplex, Duplex, Fan-Out, Branch Out;
14. Connector Type: LC, SC, FC, ST, E2000, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc.
15. Fiber Mode: SM (single mode) G652D, G655, G657
MM (multimode); G651.1 (50/125, 62.5/125, 10Gb/s 50/125, 40Gbs/100Gb/s 50/125)

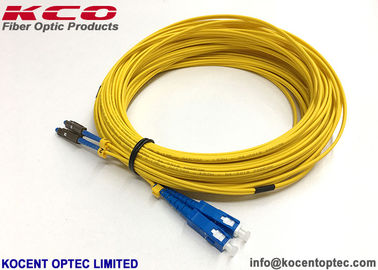

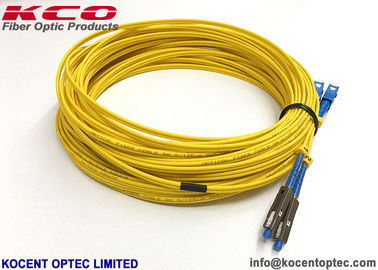

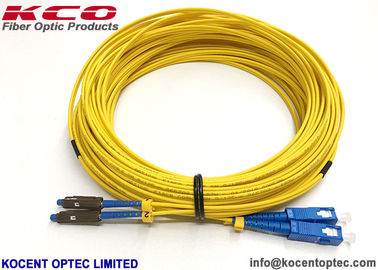

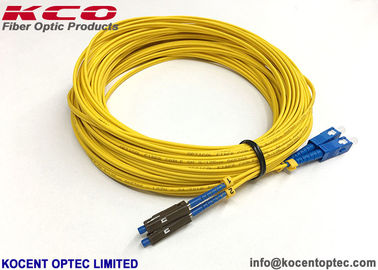

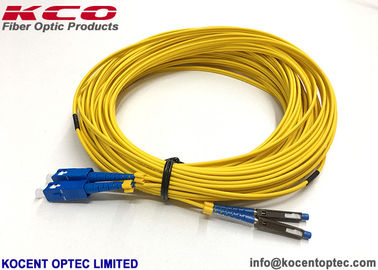

Product Photo:
Feature:
1. Common with Telcordia’s GR-326-Core, IEC Standard
2. Green Production, RoHS Standard
3. Excellent Polished and 100% tested.
4. High stability various environments
5. Customize order available
Category:
1. FC patch cable, SC patch cable, ST patch cable, LC patch cable, MTRJ patch cable, MPO patch cable, MU patch cable, SMA patch cable, FDDI patch cable, E2000 patch cable, DIN patch cable, D4 patch cable and so on.
2. Normal fiber optic patch cable: FC-FC, FC-SC, FC-LC, FC-ST, SC-SC, SC-ST and so on
Patch cable length: 0.5m, 1m, 2m, 3m, 5m, 10m and so on
Characteristics:
1. Low insertion loss
2. Good repeatability
3. Big Return Loss
4. Mutual insert performance
5. Good temperature stability
Application:
1. An optical fiber communication system
2. Optical access network
3. Fiber-optic data transmission
4. Fiber optic CATV
5. A local area network (LAN)
6. Test equipment
7. Fiber optic sensors
Technical Data:
| Data | Unit | FC, LC, SC Jumper | SR, MU | MT-RJ, MPO | E2000 | |||||||||
| SM | MM | SM | MM | SM | MM | SM | ||||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | |||
| Insert loss | DB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | |
Return loss |
DB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 | |
| Work wavelength | NM | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | |||||||||
| Interchange ability | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | |||||||||
| Vibration | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | |||||||||
| Work temperature | ℃ | -40 to 75 | -40 to 75 | -40 to 75 | -40 to 75 | |||||||||
| Install temperature | ℃ | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | |||||||||
| Fiber OD | MM | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 | |||||||||
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
