0.9mm Cable SC/APC Fiber Optic Fast Connector with Two-Minute Installation and 0.2dB Insertion Loss

  • 0.9mm Cable SC/APC Fiber Optic Fast Connector with Two-Minute Installation and 0.2dB Insertion Loss
  • 0.9mm Cable SC/APC Fiber Optic Fast Connector with Two-Minute Installation and 0.2dB Insertion Loss
  • 0.9mm Cable SC/APC Fiber Optic Fast Connector with Two-Minute Installation and 0.2dB Insertion Loss
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number SC/APC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details plastic module, PE bag, Carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 350,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type SC/APC Cable Available 0.9mm Cable
Color Green, Black Insertion Loss 0.2dB
Return Loss 50dB Wave Length 1260~1650nm
Highlight

ftth fast connector

,

field installable fiber optic connector
Leave a Message
Product Description
0.9mm Cable Fiber Optic Fast Connector Field Installable SC/APC
SC/APC Fiber Optic Fast Connector is a field-installable fiber optic connector specially designed for 0.9mm indoor fiber optic cables.
About Fiber Optic Fast Connectors
  • No special assembling tools required
  • Quick and easy assembly process
  • Reusable with up to 300 repeat operations
  • Integrated protective casing prevents impact damage
  • Installation completed in under two minutes
  • Energy efficient - no hot melting required
  • Eliminates gluing and polishing processes
Fast Connectors Gallery

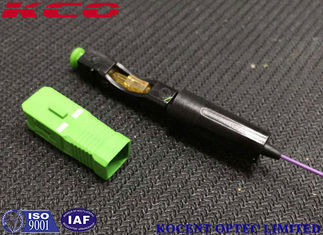

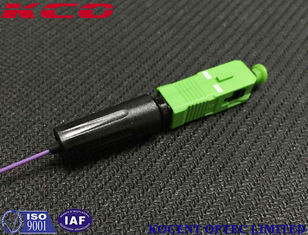

0.9mm Cable SC/APC Fiber Optic Fast Connector with Two-Minute Installation and 0.2dB Insertion Loss 0 0.9mm Cable SC/APC Fiber Optic Fast Connector with Two-Minute Installation and 0.2dB Insertion Loss 1 0.9mm Cable SC/APC Fiber Optic Fast Connector with Two-Minute Installation and 0.2dB Insertion Loss 2
Applications
  1. CATV systems
  2. Telecommunication networks
  3. Test equipment
  4. Local Area Networks (LANs)
  5. Data processing networks
  6. Testing instruments
Technical Specifications
Applicable for Drop cable, Indoor cable (0.9/2.0/3.0mm)
Optical fiber diameter 125μm
Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s (no fiber cut)
Insert loss ≤ 0.3dB
Return loss ≥50dB
Fastening strength of naked fiber >5N
Fastening strength of naked fiber holder >10N
Tensile strength >50N
Operating temperature -40°C to +75°C
