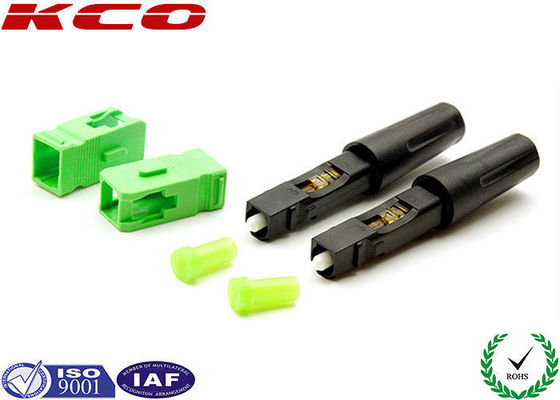

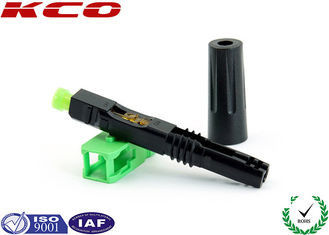

SC/APC Fiber Optic Fast Connector for 3.0 MM Cables with Insert Loss ≤ 0.3dB and Return Loss ≥50dB

  • SC/APC Fiber Optic Fast Connector for 3.0 MM Cables with Insert Loss ≤ 0.3dB and Return Loss ≥50dB
  • SC/APC Fiber Optic Fast Connector for 3.0 MM Cables with Insert Loss ≤ 0.3dB and Return Loss ≥50dB
  • SC/APC Fiber Optic Fast Connector for 3.0 MM Cables with Insert Loss ≤ 0.3dB and Return Loss ≥50dB
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number SC/APC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details plastic module, PE bag, Carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 350,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type SC/UPC Cable Available 2x3.0mm FTTH Cable, 3.0mm Indoor Cable
Color Green Wave Length 1260~1650nm
Application FTTH, CATV Fiber Mode Single Mode
Highlight

ftth fast connector

,

field installable fiber optic connector
Leave a Message
Product Description
Fiber Optic Field Quick Assembly Connector SC/APC High Efficiency For 3.0 MM Cables

Fiber Optic Field Assembly Connector SC/APC High Efficiency For 3.0 MM Cables

Fiber optic fast connectors, also known as fiber optic quick connectors or field assembly connectors, are designed for FTTH applications. These connectors represent a new generation of fiber connectors that provide both open flow and precast type products, meeting standard optical fiber connector specifications.

Key Advantages
  • Unique crimping position design requires no gluing or polishing
  • Preinstalled fiber structure for convenient field installation
  • Enables quicker connection and disconnection than splicing
  • Precisely aligns fiber cores for optimal light transmission
  • Minimizes light loss due to reflection or misalignment
SC/APC Fiber Optic Fast Connector for 3.0 MM Cables with Insert Loss ≤ 0.3dB and Return Loss ≥50dB 0 SC/APC Fiber Optic Fast Connector for 3.0 MM Cables with Insert Loss ≤ 0.3dB and Return Loss ≥50dB 1
Product Specifications
  • Name: SC/APC fiber optic Fast Connector
  • Ferrule end-face: APC
  • Ferrule size: 2.5mm
  • Structure: Pre-polished, Un-polished
  • Connector: SC
  • Fiber: G652D G657A
  • Cable diameter: 3.0mm, FTTH cable
Compatibility

Available in various configurations including SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC. Compatible with 0.9mm, 2.0mm, 3.0mm indoor fiber optic cables and 2x3.0mm fiber optic FTTH cables. All connectors meet RoHS compliance and are 100% tested for insertion loss before shipment.

Key Features
  • No special assembling tools required
  • Quick and easy installation process
  • Reusable with up to 300 repeat operations
  • Integrated protective casing against impacts
  • Installation completed in under two minutes
  • Energy efficient - no hot melting required
  • Eliminates gluing and polishing processes
Technical Specifications
Applicable for Drop cable, Indoor cable (0.9/2.0/3.0mm)
Optical fiber diameter 125μm
Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s (no fiber cut)
Insert loss ≤ 0.3dB
Return loss ≥50dB
Fastening strength of naked fiber >5N
Fastening strength of naked fiber holder >10N
Tensile strength >50N
Operating temperature -40°C to +75°C
