SC/UPC Fiber Optic Fast Connector , Field Assembly Connector 0.2dB Insertion Loss

  • SC/UPC Fiber Optic Fast Connector , Field Assembly Connector 0.2dB Insertion Loss
  • SC/UPC Fiber Optic Fast Connector , Field Assembly Connector 0.2dB Insertion Loss
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number FAST-55/60-SC-UPC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 350,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type FAST SC Color Blue
Insertion Loss 0.2dB Return Loss 55dB
Mode Single Mode, Multi Mode, Mono Mode Length 55mm, 60mm
High Light

ftth fast connector

,

field installable fiber optic connector
Leave a Message
Product Description



SC/UPC Fiber Optic Fast Connector Field Assembly Connector



Field Assembly SC quick connector can provide a quick and easy of fiber in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesive or costly curing ovens and polishing and fiber deface inspection.



Features



1. Factory-installed fiber stub

2. No epoxy or polishing required

3. Quick and easy fiber termination in the field 4.Eliminates cable excess length and pigtail splice storage

4. Eliminates cable excess length and pigtail splice storage

5. Cost effective 6.Applicable to bow-type drop cable and 2.0/3.0 indoor cable, telecom cable

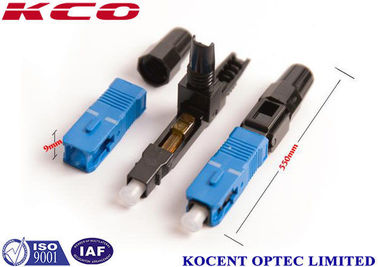

SC/UPC Fiber Optic Fast Connector , Field Assembly Connector 0.2dB Insertion Loss 0

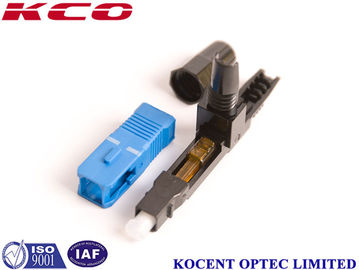

SC/UPC Fiber Optic Fast Connector , Field Assembly Connector 0.2dB Insertion Loss 1





Application:

1. CATV

2. Telecommunication networks

3. Test equipment

4. Local Area Networks(LANs)

5. Data processing networks

6. Testing instruments





Specification

Fast Connector Specification
Mode SM   MM
Polish UPC APC PC
Insertion Loss

Typical ≤0.2dB

Maximum ≤0.3dB

 ≤0.25dB

Return Loss ≥50dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strengh > 50 N
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)
