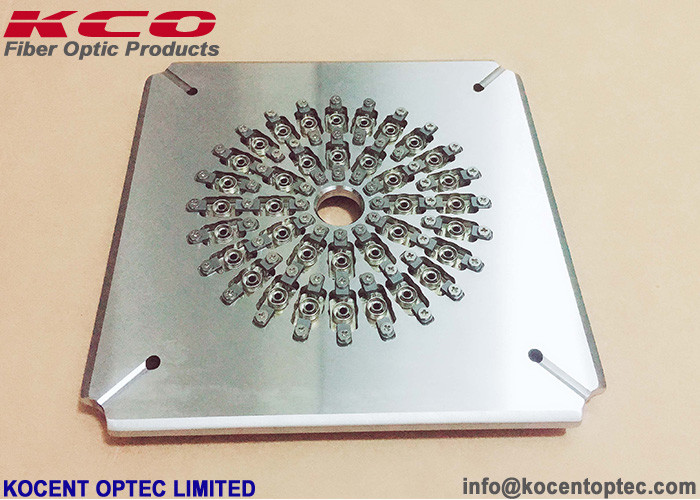

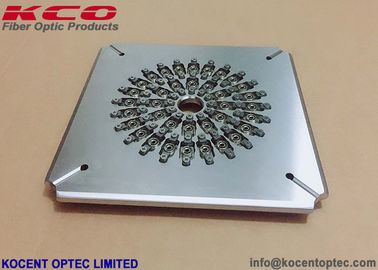

36 Ports 3D Pass FC UPC Fiber Optic Connector Polishing Jigs

36 Ports 3D Pass FC UPC Fiber Optic Connector Polishing Jigs
36 Ports 3D Pass FC UPC Fiber Optic Connector Polishing Jigs 36 Ports 3D Pass FC UPC Fiber Optic Connector Polishing Jigs 36 Ports 3D Pass FC UPC Fiber Optic Connector Polishing Jigs

Large Image :  36 Ports 3D Pass FC UPC Fiber Optic Connector Polishing Jigs

Product Details:

Place of Origin: China
Brand Name: KCO, Kocent Optec Limited
Certification: RoHS, ISO
Model Number: c

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: paper bag, carton box
Delivery Time: 2~5 days after get payment
Payment Terms: T/T, Western Union, L/C
Supply Ability: 200,000 pcs/ month
Detailed Product Description
P/N: KCO-4JIG-FCU-36 Grade: 0.3dB, 3D
Polishing Scope: SC/UPC Connector Disk Size: 179mm
Connector: 36 Connector Machine: Corner Pressure Polishing Machine
High Light:

Fiber Optic Polishing Machine Jig

,

Grinding Machine Polishing Jigs



FC/UPC Fiber Optic Connector Polishing Jigs 36 Ports 3D Pass For Four Corners Polishing Machine



Description:

- This polishing jigs is designed for corner pressure fiber optic polishing machine only.

- It has 36 FC/UPC adapter on the jigs, maximum can polish 36 connectors each time, increase grinding efficiency

- Used for four corners pressure polishing machine.
- Suitable for FC/PC connector polishing style.
- 38 positions for Connector head.
- Polishing 36 connector a time.

- FC/UPC poloshing jig is available in 24 ports, 32 ports, and maximum 36 ports.



Feature:

- High quality steel construction, high precision.
- The interference rate of 2. is over 90%.
- The use of independent afterburner way to eliminate the grinding head of different length of exposure on the impact of grinding.
- Each grinding disc can be fitted with a plurality of grinding heads, and the production efficiency is high.
- Adapters interchangeable to extend the service life of the grinding disk.
- Three kinds of grinding heads, SC/PC, FC/PC, ST/PC, interchangeable.

- The utility model saves the number of the grinding disk and saves the production cost.
- Grinding can be integrated grinding disk, also suitable for rework.
- According to customer requirements design, APC, MPO, E2000, MTP, MPX and so on.







Applications:

Product Type Application
D

· Lapping for Fiber optic connector, fiber array, glass pig tail(angel removal, rough grinding, medium polishing, fine finishing)

·Polishing for magnetic heads and hard disks

·Lapping and polishing for optical glasses, optical crystal , LED

·Lapping and polishing for Semiconductor wafer (gallium arsenide, indium phosphide etc.)

·Edge polishing for silicon wafer

SC

·Epoxy and glass removal

·Lapping and polishing for plastic ferrules

·Fine finishing and polishing for magnetic heads

AO

·Polishing for fiber optical connectors

·Polishing for silicon wafer used in Solar cells

·Polishing for hard disks

·Polishing for ITO

·Lapping and polishing for optical crystal

CO

·The final polishing for fiber optical connectors

·Polishing for optical devices

SO ·The final super-precise polishing of optical fiber connector



Specifications:

Type D(Diamond) SC (Silicon Carbide) AO(Aluminum Oxide) CO(Cerium Oxide) SO(Silicon Oxide)
Grit Size/um 30 Green Light Green Green
20       White
16       White
15 Yellow-Green Tawny Light Green Brown
12       Yellow
9 Blue Orange Gray-green Blue
6 Yellow
5     Gray-green White
3 Pink Tan Pink & White
2     Gray-green Bright Green
1 off-white Lavender Gray-green Blue
0.5 off-white Brown-yellow   White White
0.3       White Dark Red
0.2 Grey
0.1 Light Brown   White
0.02           Transparent
0.01           Transparent
Recommended Polishing Medium Water/Oil Water/Oil Water/Oil SOQ-12D Water
Standard Size

Disk:Φ70mm,

Φ110mm,

Φ127mm(5inch),

Φ203mm(8inch)

Sheet:

114mm*114mm,

152mm*152mm(6inch),

228*228mm(9inch)

Note: Other film sizes are available upon request.

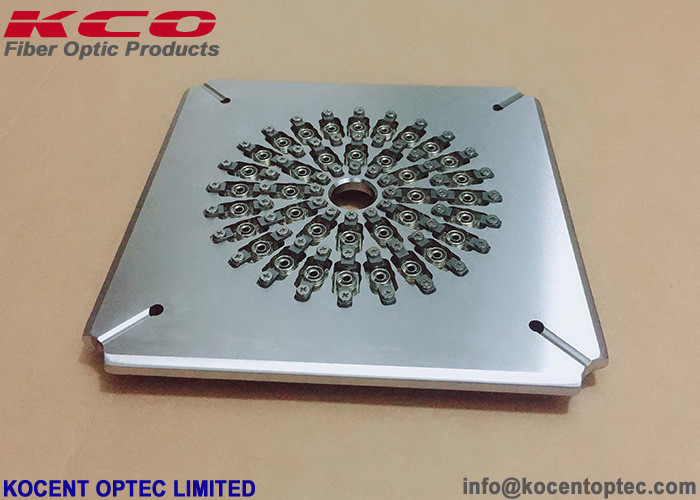

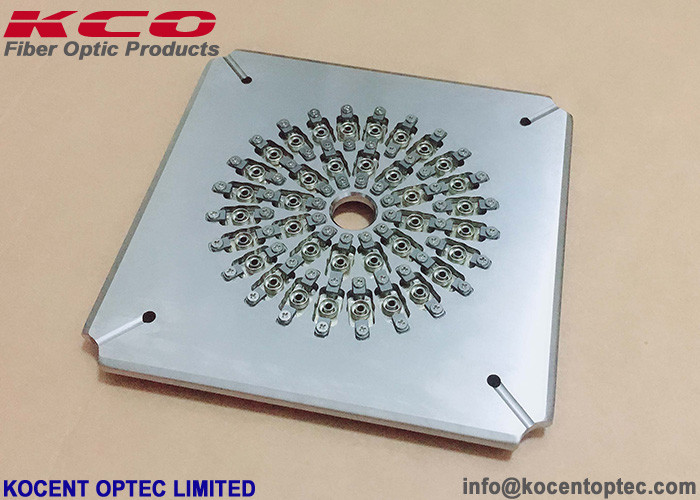

Product pictures:





36 Ports 3D Pass FC UPC Fiber Optic Connector Polishing Jigs 0





36 Ports 3D Pass FC UPC Fiber Optic Connector Polishing Jigs 1



Fiber Optic Patch Cord Production Process:

36 Ports 3D Pass FC UPC Fiber Optic Connector Polishing Jigs 2



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
