Optical Fiber Grinding Machine 48 Port LC UPC Polishing Jigs

Optical Fiber Grinding Machine 48 Port LC UPC Polishing Jigs
Optical Fiber Grinding Machine 48 Port LC UPC Polishing Jigs Optical Fiber Grinding Machine 48 Port LC UPC Polishing Jigs

Large Image :  Optical Fiber Grinding Machine 48 Port LC UPC Polishing Jigs

Product Details:

Place of Origin: China
Brand Name: KCO, Kocent Optec Limited
Certification: RoHS, ISO
Model Number: KCO-4JIG-LCU-48

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: paper bag, carton box
Delivery Time: 2~5 days after get payment
Payment Terms: T/T, Western Union, L/C
Supply Ability: 200,000 pcs/ month
Detailed Product Description
P/N: KCO-4JIG-LCU-48 Grade: 0.3dB, 3D
Polishing Scope: SC/UPC Connector Disk Size: 179mm
Connector: 48 Connector Machine: Corner Pressure Polishing Machine
High Light:

Grinding Machine Polishing Jigs

,

Fiber Grinding Machine Jigs



48 Port LC/UPC Polishing Jigs For Four Corner Optical Fiber Grinding Machine 24 Connector



Description:
- Designed for grinding and polishing LC/UPC connectors
- Optical fiber connector end face has excellent polishing quality, high 3D pass rate and low repair rate
- Simple and flexible operation, SC, FC, LC, ST, E2000, SMA, ... can be used by disassembling interchangeable adapters, but it requires professional operation
- The product is made through multiple special processes, which is wear-resistant, rust-proof, and not easily deformed.

- The polishing jigs (or also be called polishing fixture) is using to fix the fiber optic connector when polishing.

- It is one of most importance part in the fiber optic patch cord production line.

- A good polishing jigs can help make to high quality that can pass 3D of fiber optic patch cord / pigtail.



Feature:

- Each grinding disc can be fitted with a plurality of grinding heads, and the production efficiency is high.

- The interference rate of 2. is over 90%.

- High quality steel construction, high precision.

- Grinding can be integrated grinding disk, also suitable for rework.
- Adapters interchangeable to extend the service life of the grinding disk.
- Three kinds of grinding heads, SC/PC, FC/PC, ST/PC, interchangeable.

- According to customer requirements design, APC, MPO, E2000, MTP, MPX and so on.

- The utility model saves the number of the grinding disk and saves the production cost.
- The use of independent afterburner way to eliminate the grinding head of different length of exposure on the impact of grinding.



Product pictures:

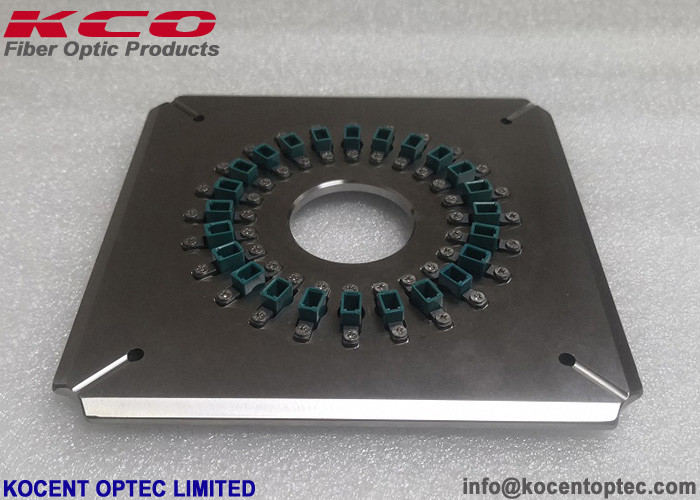

Optical Fiber Grinding Machine 48 Port LC UPC Polishing Jigs 0

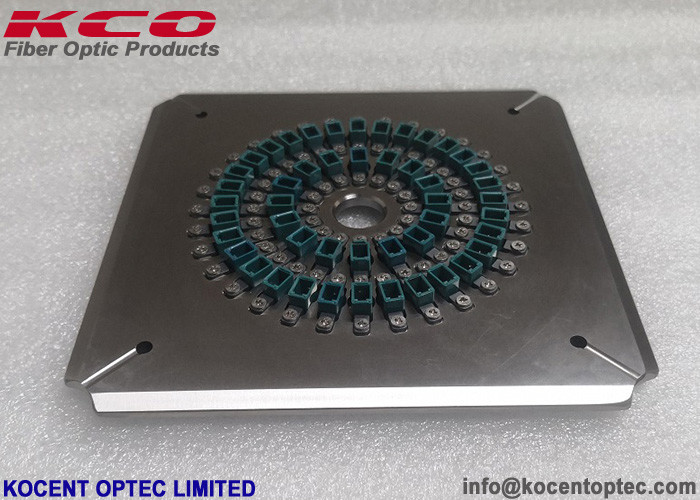

Optical Fiber Grinding Machine 48 Port LC UPC Polishing Jigs 1

Optical Fiber Grinding Machine 48 Port LC UPC Polishing Jigs 2

Optical Fiber Grinding Machine 48 Port LC UPC Polishing Jigs 3

Optical Fiber Grinding Machine 48 Port LC UPC Polishing Jigs 4



Specification

Product Size
174mm*174mm*5.1mm
Wet weight
About 1.2kg
Application
Fixed FC / APC Fiber Connector Polished
Suitable Fiber Connector Polisher
Four-corner pressure optical fiber connector polishing machine
Material
Hardened stainless steel2316



Applications:

Product Type Application
D

· Lapping for Fiber optic connector, fiber array, glass pig tail(angel removal, rough grinding, medium polishing, fine finishing)

·Polishing for magnetic heads and hard disks

·Lapping and polishing for optical glasses, optical crystal , LED

·Lapping and polishing for Semiconductor wafer (gallium arsenide, indium phosphide etc.)

·Edge polishing for silicon wafer

SC

·Epoxy and glass removal

·Lapping and polishing for plastic ferrules

·Fine finishing and polishing for magnetic heads

AO

·Polishing for fiber optical connectors

·Polishing for silicon wafer used in Solar cells

·Polishing for hard disks

·Polishing for ITO

·Lapping and polishing for optical crystal

CO

·The final polishing for fiber optical connectors

·Polishing for optical devices

SO ·The final super-precise polishing of optical fiber connector



Specifications:

Type D(Diamond) SC (Silicon Carbide) AO(Aluminum Oxide) CO(Cerium Oxide) SO(Silicon Oxide)
Grit Size/um 30 Green Light Green Green
20       White
16       White
15 Yellow-Green Tawny Light Green Brown
12       Yellow
9 Blue Orange Gray-green Blue
6 Yellow
5     Gray-green White
3 Pink Tan Pink & White
2     Gray-green Bright Green
1 off-white Lavender Gray-green Blue
0.5 off-white Brown-yellow   White White
0.3       White Dark Red
0.2 Grey
0.1 Light Brown   White
0.02           Transparent
0.01           Transparent
Recommended Polishing Medium Water/Oil Water/Oil Water/Oil SOQ-12D Water
Standard Size

Disk:Φ70mm,

Φ110mm,

Φ127mm(5inch),

Φ203mm(8inch)

Sheet:

114mm*114mm,

152mm*152mm(6inch),

228*228mm(9inch)

Note: Other film sizes are available upon request.



Fiber Optic Patch Cord Production Process:

Optical Fiber Grinding Machine 48 Port LC UPC Polishing Jigs 5



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
