Fiber Optic Grinding Tools 24 Connector ST Polishing Jigs

Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification RoHS, ISO
Model Number KCO-4JIG-STU-24
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details paper bag, carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T, Western Union, L/C
Supply Ability 200,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-4JIG-STU-24 Grade 0.3dB, 3D
Polishing Scope SC Connector Disk Size 179mm
Connector 24 Connector Machine Corner Pressure Polishing Machine
High Light

SC Connector Polishing Jigs

,

Patch Cord Production Grinding Jigs

Leave a Message
Product Description



ST Polishing Jigs Fixture Fiber Optic Grinding Tools Patch Cord Production Machine



Description:

- This grinding jigs is designed for grinding and polishing SC/UPC connectors. It is using to fix the fiber optic connector when polishing.

- It is one of most importance part in the fiber optic patch cord production line.
- Optical fiber connector end face has excellent polishing quality, high 3D pass rate and low repair rate
- Simple and flexible operation, SC, FC, LC, ST, E2000, SMA, ... can be used by disassembling interchangeable adapters, but it requires professional operation
- The product is made through multiple special processes, which is wear-resistant, rust-proof, and not easily deformed.

- The optical fiber polishing jig is IPC Structure, Independent compression of each connector. The optical fiber polishing jig pass rate with Interference 98%.

- The optical fiber polishing jig using high quality steel with heated treat, the hardened steel S136 provide long service life. This optical fiber polishing jig can design the jig of SC, FC, ST, LC, MPO and E2000, FA, etc, according to the customer request.

This optical fiber polishing jig is high stability and good surface quality.



Features:

- Made with high quality, by using hardened steel S13;

- Adopt central pressurized way to polish, more stable;
- The plugs of connector polishing jig can be interchanged, prolong the service life of grinding plate;
- This fiber polishing jig adopt independent pressurized way, eliminate ferrules show the different length effects on polishing;
- Really trustworthy LC/UPC connector polishing jig.
Note: All kinds of fiber polishing jigs/Polishing Module can be customized according to customers' requirement.



Product pictures:

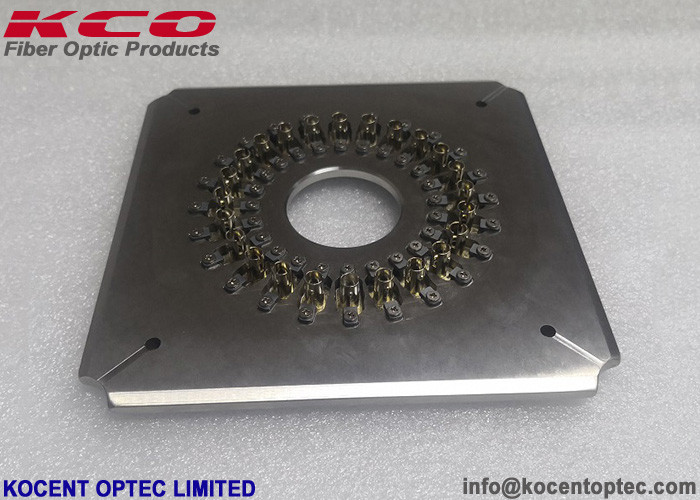

Fiber Optic Grinding Tools 24 Connector ST Polishing Jigs 0

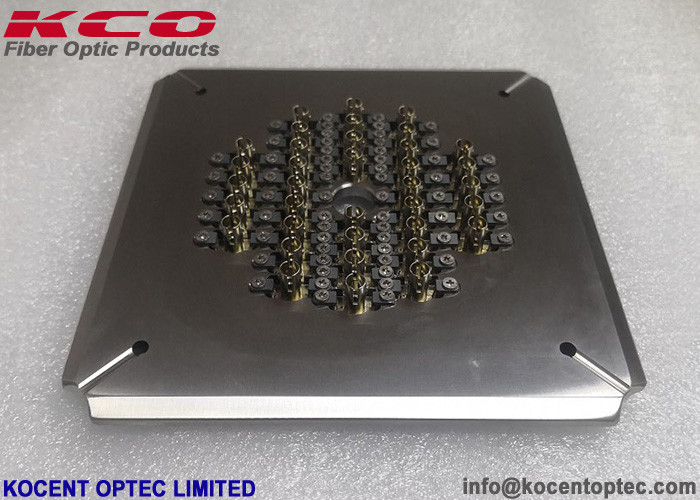

Fiber Optic Grinding Tools 24 Connector ST Polishing Jigs 1

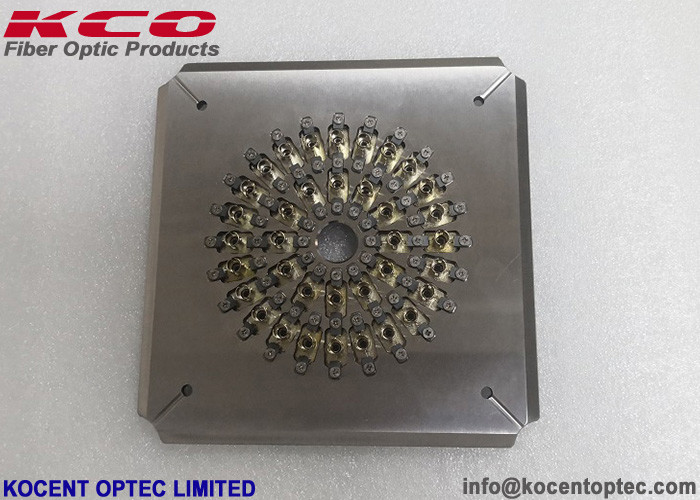

Fiber Optic Grinding Tools 24 Connector ST Polishing Jigs 2



Other relation machine:



Fiber Optic Grinding Tools 24 Connector ST Polishing Jigs 3

Fiber Optic Grinding Tools 24 Connector ST Polishing Jigs 4

Fiber Optic Grinding Tools 24 Connector ST Polishing Jigs 5

Fiber Optic Grinding Tools 24 Connector ST Polishing Jigs 6

Specification

Product Size
174mm*174mm*5.1mm
Wet weight
About 1.2kg
Application
Fixed FC / APC Fiber Connector Polished
Suitable Fiber Connector Polisher
Four-corner pressure optical fiber connector polishing machine
Material
Hardened stainless steel2316



Applications:

Product Type Application
D

· Lapping for Fiber optic connector, fiber array, glass pig tail(angel removal, rough grinding, medium polishing, fine finishing)

·Polishing for magnetic heads and hard disks

·Lapping and polishing for optical glasses, optical crystal , LED

·Lapping and polishing for Semiconductor wafer (gallium arsenide, indium phosphide etc.)

·Edge polishing for silicon wafer

SC

·Epoxy and glass removal

·Lapping and polishing for plastic ferrules

·Fine finishing and polishing for magnetic heads

AO

·Polishing for fiber optical connectors

·Polishing for silicon wafer used in Solar cells

·Polishing for hard disks

·Polishing for ITO

·Lapping and polishing for optical crystal

CO

·The final polishing for fiber optical connectors

·Polishing for optical devices

SO ·The final super-precise polishing of optical fiber connector



Specifications:

Type D(Diamond) SC (Silicon Carbide) AO(Aluminum Oxide) CO(Cerium Oxide) SO(Silicon Oxide)
Grit Size/um 30 Green Light Green Green
20       White
16       White
15 Yellow-Green Tawny Light Green Brown
12       Yellow
9 Blue Orange Gray-green Blue
6 Yellow
5     Gray-green White
3 Pink Tan Pink & White
2     Gray-green Bright Green
1 off-white Lavender Gray-green Blue
0.5 off-white Brown-yellow   White White
0.3       White Dark Red
0.2 Grey
0.1 Light Brown   White
0.02           Transparent
0.01           Transparent
Recommended Polishing Medium Water/Oil Water/Oil Water/Oil SOQ-12D Water
Standard Size

Disk:Φ70mm,

Φ110mm,

Φ127mm(5inch),

Φ203mm(8inch)

Sheet:

114mm*114mm,

152mm*152mm(6inch),

228*228mm(9inch)

Note: Other film sizes are available upon request.



Fiber Optic Patch Cord Production Process:
