SC APC Fiber Optic Fast Connector with 0.3dB Insertion Loss and Tensile Strength >60N for FTTH Quick Assembly

  • SC APC Fiber Optic Fast Connector with 0.3dB Insertion Loss and Tensile Strength >60N for FTTH Quick Assembly
  • SC APC Fiber Optic Fast Connector with 0.3dB Insertion Loss and Tensile Strength >60N for FTTH Quick Assembly
  • SC APC Fiber Optic Fast Connector with 0.3dB Insertion Loss and Tensile Strength >60N for FTTH Quick Assembly
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-YTTC-1
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-YTTC-1 Color Green
Insertion Loss 0.2dB Return Loss 50dB
3D Pass Length 50mm 55mm 60mm
Highlight

G657A1 Quick Assembly Connector

,

SC APC Fiber Optic Connector
Leave a Message
Product Description

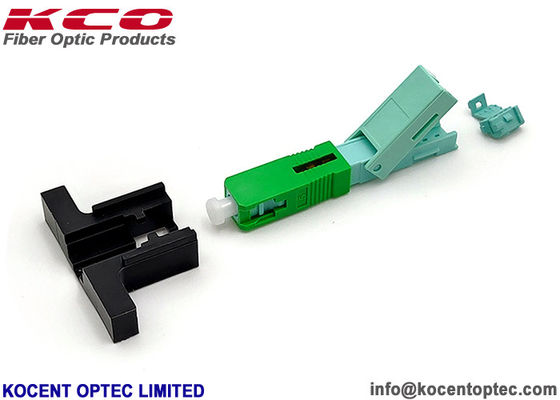

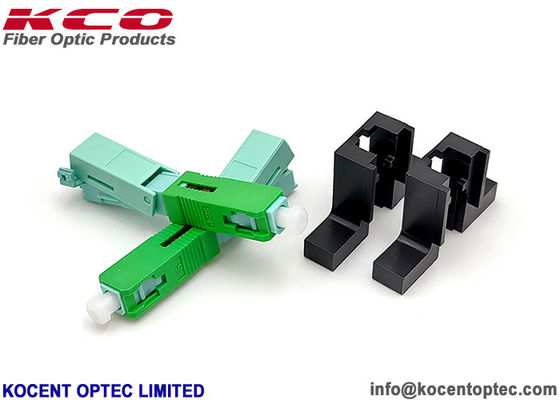

SC APC Fiber Optic Fast Connector FTTH Single Mode Quick Assembly Connector
Factory pre-polished, field-installable SC/UPC fast connectors eliminate the need for hand polishing. Features mechanical splice technology for precision fiber alignment with a pre-cleaved fiber stub and proprietary index-matching gel for immediate low loss termination to single-mode or multimode optical fibers.
Product Advantages
  • Ferrule requires no on-site grinding - compatible with butterfly cable, Phi 3, Phi 2, and Phi f0.9 weld
  • High optical performance: average insertion loss < -0.20dB, return loss > 55dB
  • Environmentally stable with no failure rate and long service life, reducing maintenance costs
  • Special "micro bend" fiber structure protects against violent tension
  • Heat shrinkable tube protects internal splice for enhanced safety and longevity
  • Reinforced stepped structure provides tensile strength > 60N
  • Simple operation requiring no professional skills
Technical Specifications
Item KCO-YTTC-1
Suitable Cable OD 2.0mm, 3.0mm, 0.9mm
Optical fiber diameter 125μm
Tight buffer diameter 900μm
Fiber mode Single & multi mode
Operation time ≈120s (no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm)
Return loss > 40dB
Tensile strength >50 N
Operating temperature -40°C to +75°C
Applications
  • Fiber to the Building (FTTB)
  • Fiber To The Office (FTTO)
  • Fiber to The Home (FTTH)
  • Cable Television (CATV)
  • Metro Networks
  • Test Equipment
  • Asynchronous Transmission Mode (ATM)
  • Passive Optical Networks (PON)
  • Local Area Networks (LAN)
Key Features
  • No special assembly tools required
  • Field-reconnectable without epoxy or polishing
  • Compatible with 3mm drop cable and 3x2mm flat cable
  • Fast, easy installation with one-touch push-pull system
  • No matching gel ensures low reflection and high reliability
  • Internal splicing point eliminates additional splicing work
  • Heat shrinkable tube protects fusion splice point
  • 100% qualified with extended lifespan and reduced maintenance costs
  • Splicing success verifiable via fusion splicing machine monitor
Delivery Information
  • Material Preparation: 3 days (or from inventory)
  • Production & Assembly: 7 days
  • Testing & Packaging: 2 days
  • Total Delivery Time: 12 days for 50,000pcs
Faster delivery options available upon negotiation
Manufacturer Information
Kocent Optec Limited is a leading Chinese supplier of fiber optic fast connectors meeting Telecom requirements (Viettel, VNPT, etc.). Free logo printing available for orders >10k pcs; free logo lettering for orders >100k pcs.
SC APC Fiber Optic Fast Connector with 0.3dB Insertion Loss and Tensile Strength >60N for FTTH Quick Assembly 0
OEM/ODM Services
Custom branding available on products, packaging, and labels. Contact our sales team for OEM/ODM solutions.
Packaging & Shipping
Standard export packaging in carton boxes, wooden boxes, or pallets. Shipping options include international express (UPS, TNT, DHL), air freight, and sea transport from major Chinese ports and airports.
