0.9mm OD LC/UPC Fiber Optic Fast Connector with Low Insertion Loss and Tensile Strength >50N for FTTH Applications
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO |
| Certification | ISO9001, RoHS |
| Model Number | KCO-OFC-LCA-0.9 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | PE bag, carton box, wooden pallet |
| Delivery Time | 2~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 100,000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| P/N | KCO-OFC-LCA-0.9 | Color | Green |
|---|---|---|---|
| Insertion Loss | 0.5dB | Return Loss | 50dB |
| 3D | Pass | Length | 35mm |
| Polishing Type | APC | Conner | 8 Degree |
| Highlight | LC UPC Optical Fiber Connector,OD0.9mm Optical Fiber Connector,FTTH Fiber Optic Cable Connector |
||
Product Description
OD0.9mm LC UPC Optical Fiber Connector FTTH Field Installable
Product Description
FTTH 0.9mm Optical Fiber LC/UPC Fast Connector. Factory pre-polished, field-installable connectors that eliminate the need for hand polishing in the field. Features mechanical splice technology for precision fiber alignment, a factory pre-cleaved fiber stub, and proprietary index-matching gel for immediate low loss termination to single-mode or multimode optical fibers.
Product Advantages
- 1 ferrule design without on-site grinding, directly compatible with 0.9mm indoor fiber optic cable
- High optical performance: average insertion loss < -0.50dB, return loss > 45dB
- Environmentally stable performance with no failure rate and long service life
- Special optical fiber "micro bend" structure protects against cable tension
- Heat shrinkable tube protects internal splice for enhanced safety and longevity
- Stepped rear-end structure provides tensile strength > 60N
- Simple operation requiring no professional skills
Applications
- Fiber to the building (FTTB)
- Fiber To The Office (FTTO)
- Fiber to The Home (FTTH)
- Cable Television (CATV)
- Metro networks
- Test Equipment
- Asynchronous Transmission Mode (ATM)
- Passive optical networks (PON)
- Local Area Networks (LAN)
Features
- No special assembly tools required
- Field-reconnectable without epoxy or polishing
- Compatible with 3mm drop cable and 3x2mm flat cable
- Fast, easy installation with one-touch push-pull system
- No matching gel enables low reflection and high reliability
- Internal splicing point requires no additional work
- Heat shrinkable tube protects fusion splice point
- 100% qualified with prolonged lifespan and reduced maintenance costs
- Splicing success verifiable via fusion splicing machine monitor
Technical Data
| Item | KCO-OFC-LCA-0.9 |
|---|---|
| Suitable Cable OD | 0.9mm |
| Optical fiber diameter | 125μm |
| Tight buffer diameter | 900μm |
| Fiber mode | Single & multi mode |
| Operation time | About 120s (no fiber cut) |
| Insert loss | ≤ 0.5dB(1310nm & 1550nm) |
| Return loss | > 40dB |
| Tensile strength | >50 N |
| Using temperature | -40~+75°C |
| On-line tensile strength (20 N) | IL ≤ 0.2dB |
| Mechanical durability (500 times) | IL ≤ 0.2dB |
| Drop-off test (4m height, 3 directions) | IL ≤ 0.2dB |

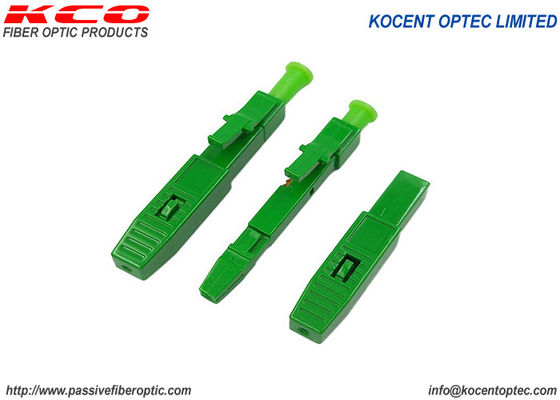

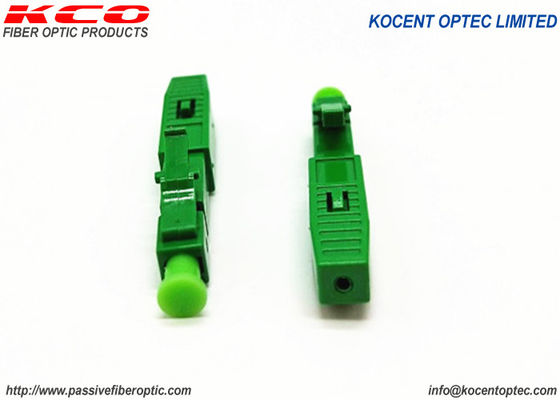

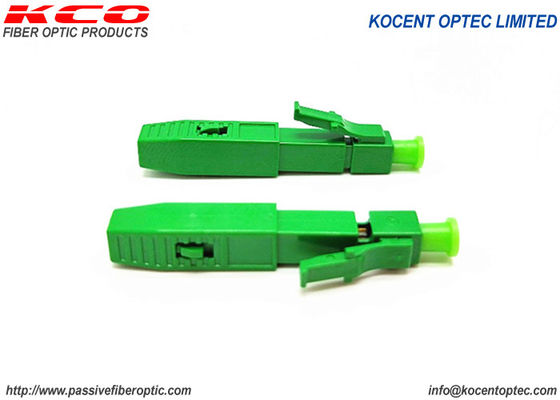

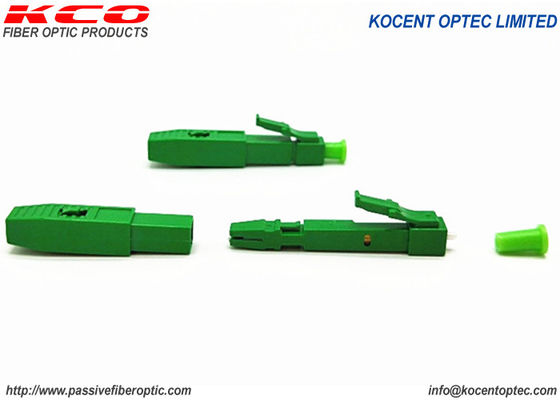

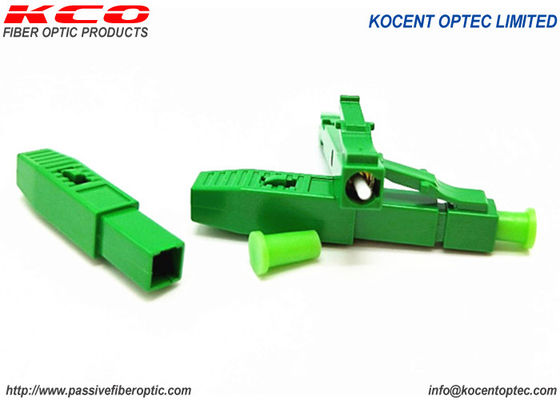

Product Photo
Delivery Time
Material Preparation Time: 3 days (or inventory)
Production & Assembly Time: 7 days
Testing & Packaging Time: 2 days
Total Delivery Time: 12 days for 50,000pcs safe delivery lead time.
Faster delivery available upon negotiation.
Production & Assembly Time: 7 days
Testing & Packaging Time: 2 days
Total Delivery Time: 12 days for 50,000pcs safe delivery lead time.
Faster delivery available upon negotiation.
Factory Information
Kocent Optec Limited is a leading supplier of fiber optic fast connectors in China. Our products meet Telecom requirements for Viettel, VNPT, and others.
Free logo print available for orders > 10k pcs.
Free logo lettering available for orders > 100k pcs.
Contact our sales team for OEM and ODM orders.
Free logo print available for orders > 10k pcs.
Free logo lettering available for orders > 100k pcs.
Contact our sales team for OEM and ODM orders.
OEM/ODM Service
Custom branding available on products, packaging, labels, etc. Contact our sales team for OEM/ODM support.
Packing
- Standard Export Packing
- Carton box, wooden box, wooden pallet
Shipping
- International express: UPS, TNT, DHL, etc
- International air: CA, AA, EA, etc
- Sea freight
- Standard export sea ports: Shenzhen, Hongkong, Ningbo
- Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
