35mm Length SC APC Fiber Optic Fast Connector with 8 Degree Corner for 3mm Drop Cable

  • 35mm Length SC APC Fiber Optic Fast Connector with 8 Degree Corner for 3mm Drop Cable
  • 35mm Length SC APC Fiber Optic Fast Connector with 8 Degree Corner for 3mm Drop Cable
  • 35mm Length SC APC Fiber Optic Fast Connector with 8 Degree Corner for 3mm Drop Cable
  • 35mm Length SC APC Fiber Optic Fast Connector with 8 Degree Corner for 3mm Drop Cable
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-SCA-6001
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-SCA-6001 Color Green
Insertion Loss 0.5dB Return Loss 50dB
3D Pass Length 35mm
Polishing Type APC Conner 8 Degree
Highlight

ONU Optical Fiber Connector

,

SC APC Optical Fiber Connector

,

FTTH Fiber Optic Sc Connector
Leave a Message
Product Description
ONU 60mm SC APC Optical Fiber Connector FTTH KCO-SCA-6001
Product Description
KCO-SCA-6001 FTTH ONU 60mm Green Optical Fiber SC/APC Fast Connector

The SC/APC fast connector features a pre-polished ferrule that couples to the fiber being terminated by precision mechanical alignment, ensuring low loss with a proprietary gel. This connector offers convenient assembly and strong stability, allowing simple optical core connection without additional practices or adhesives.

Key Advantages
  • No working space required - suitable for challenging environments like telephone poles and manholes
  • Reduces connection defect rate from installer errors
  • Widely used in Telecom FTTH applications
Applications
  • Metro networks
  • Test Equipment
  • Fiber to the Building (FTTB)
  • Fiber To The Office (FTTO)
  • Fiber to The Home (FTTH)
  • Cable Television (CATV)
  • Asynchronous Transmission Mode (ATM)
  • Passive optical networks (PON)
  • Local Area Networks (LAN)
Features
  • No special assembly tools required
  • Field-reconnectable
  • No epoxy or polishing needed
  • Compatible with 3mm drop cable and 3x2mm flat cable
  • Fast and easy installation
  • No matching gel enables low reflection and high reliability
  • Splicing point is inside the connector - no additional splicing work
  • One-touch, push-pull assembly system
  • Fusion splice protection by internal heat shrinkable tube
  • 100% quality tested for prolonged service life
  • Splicing success verifiable via fusion splicing machine monitor
Technical Specifications
Item KCO-SCA-6001
Suitable Cable OD 2*3 ftth drop cable, 2.0mm indoor cable
Optical fiber diameter 125μm
Tight buffer diameter 900μm
Fiber mode Single & multi mode
Operation time About 120s (no fiber cut)
Insert loss ≤ 0.5dB(1310nm & 1550nm)
Return loss > 40dB
Tensile strength >50 N
Using temperature -40~+75°C
On-line tensile strength (20 N) IL ≤ 0.2dB
Mechanical durability (500 times) IL ≤ 0.2dB
Drop-off test (4m height, 3 directions) IL ≤ 0.2dB

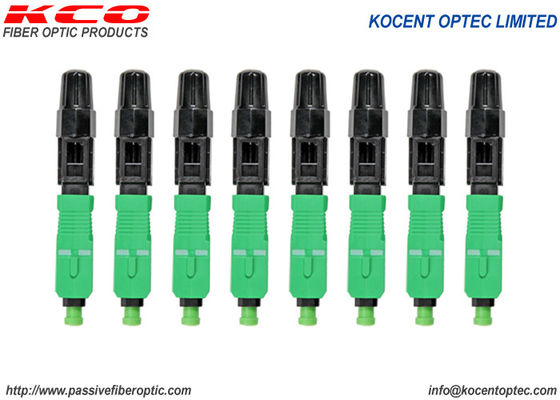

Product Image
35mm Length SC APC Fiber Optic Fast Connector with 8 Degree Corner for 3mm Drop Cable 0
Delivery Information
Material Preparation Time: 3 days (or inventory)
Production & Assembly Time: 7 days
Testing & Packaging Time: 2 days
Total Delivery Time: 12 days for 50,000pcs (faster delivery negotiable)
Manufacturer Information

Kocent Optec Limited is a leading supplier of fiber optic fast connectors in China, meeting Telecom requirements for major providers.

Logo print is free for orders over 10,000pcs. Logo lettering is free for orders over 100,000pcs.

35mm Length SC APC Fiber Optic Fast Connector with 8 Degree Corner for 3mm Drop Cable 1
OEM/ODM Services

We offer custom branding options for cables, packaging, labels, and more. Contact our sales team for OEM/ODM support.

Packaging Options
  • Standard export packing
  • Carton boxes
  • Wooden boxes
  • Wooden pallets
Shipping Methods
  • International express (UPS, TNT, DHL)
  • International air freight
  • Sea freight
  • Standard export ports: Shenzhen, Hongkong, Ningbo
  • Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
