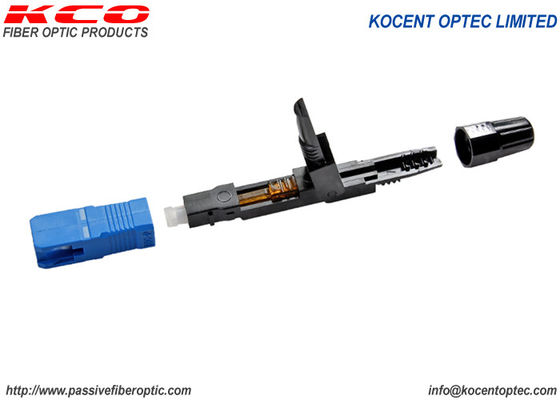

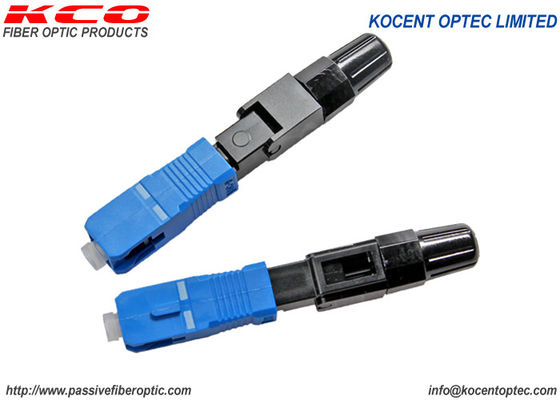

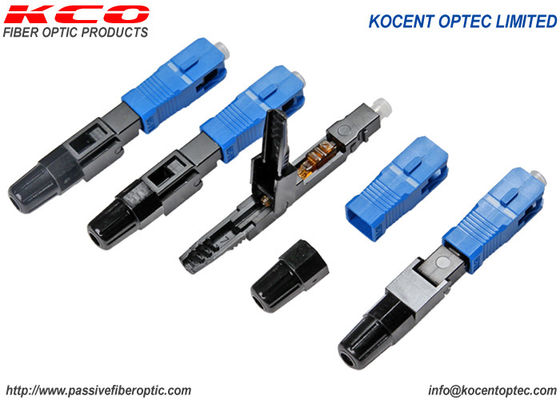

60mm Length UPC SC Fiber Optic Fast Connector for 3mm Drop and 3x2mm Flat Cable Compatibility
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO |
| Certification | ISO9001, RoHS |
| Model Number | KCO-SCU-6001 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | PE bag, carton box, wooden pallet |
| Delivery Time | 2~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 100,000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| P/N | KCO-SCU-6001 | Color | Blue |
|---|---|---|---|
| Insertion Loss | 0.5dB | Return Loss | 40dB |
| 3D | Pass | Length | 60mm |
| Polishing Type | UPC | Conner | Degree |
| Highlight | UPC SC Fiber Optic Connector,60mm Length Fiber Optic Connector,GPON Fiber Optic Quick Connector |
||
Product Description
60mm Length UPC SC Fiber Optic Connector FTTH GPON KCO-SCU-6001
KCO-SCU-6001 FTTH GPON 60mm Blue Fiber Optic UPC SC Fast Connector
The SC Fast Connector series are a proven solution for optical wiring in buildings and floors for LAN & CCTV applications. With the expansion of FTTH, it has become the connector of choice for incumbents, municipalities, utilities, and alternative carriers. The single-mode versions are available with UPC or APC ferrules.
The SC/UPC fast connector is the most popular type in the market, featuring a pre-polished ferrule that couples to the fiber being terminated by precision mechanical alignment, ensuring low loss with a proprietary gel. This connector offers convenience in assembly and strong stability, allowing simple optical core connection without additional practices or adhesives. It requires no working space and can be used in challenging environments like telephone poles and manholes. It reduces connection defects caused by installer errors and is widely used in Telecom FTTH.
Key Features
- Fast and easy installation
- No special assembly tool required
- Field-reconnectable
- No epoxy or polishing needed
- One-touch, push-pull system for easy assembly
- Compatible with both 3mm drop cable and 3x2mm flat cable
- No matching gel enables low reflection and high reliability
- Splicing point is inside the connector
- Fusion splice position protected by heat shrinkable tube
- 100% qualified for prolonged use life and reduced maintenance costs
- Splicing success verifiable via fusion splicing machine monitor
Applications
- Fiber to the building (FTTB)
- Fiber To The Office (FTTO)
- Fiber to The Home (FTTH)
- Cable Television (CATV)
- Passive optical networks
- PON & GPON
- Metro networks
- Test Equipment
- Asynchronous Transmission Mode (ATM)
- Local Area Networks (LAN)
Technical Specifications
| Item | KCO-SCU-6001 |
|---|---|
| Suitable Cable OD | 2*3 ftth drop cable, 2.0mm indoor cable |
| Optical fiber diameter | 125μm |
| Tight buffer diameter (μm) | 900μm |
| Fiber mode | Single & multi mode |
| Operation time | About 120s (no fiber cut) |
| Insert loss | ≤ 0.5dB(1310nm & 1550nm) |
| Return loss | > 40dB |
| Tensile strength | >50 N |
| Using temperature | -40~+75°C |
| On-line tensile strength (20 N) | IL ≤ 0.2dB |
| Mechanical durability (500 times) | IL ≤ 0.2dB |
| Drop-off test (drop-off height 4m, once per direction, totally 3 times) | IL ≤ 0.2dB |
Delivery Time
Material Preparation Time: 3 days (or inventory)
Production & Assembly Time: 7 days
Testing & Packaging Time: 2 days
Total Delivery Time: 12 days in 50,000pcs for safe delivery lead time.
Faster delivery options are negotiable.
Factory Information
Kocent Optec Limited is a leading supplier of fiber optic fast connectors in China. Most of our fast connectors meet Telecom requirements for Viettel, VNPT, and other major providers.
Logo printing is free for quantities over 10,000 pieces. Logo lettering is free for quantities over 100,000 pieces. Contact our sales team for OEM and ODM orders.
OEM/ODM Service
We offer custom branding services for your goods, including cables, packaging bags, labels, or any other location. Our OEM and ODM services are ready to accommodate your requirements. Contact our sales team for the best support.
Packing
Standard export packing options include:
- Carton box
- Wooden box
- Wooden pallet
Shipping
Available shipping methods:
- International express (UPS, TNT, DHL, etc.)
- International air (CA, AA, EA, etc.)
- Sea freight
Standard export ports:
- Sea ports: Shenzhen, Hongkong, Ningbo
- Airports: Shenzhen, Hongkong, Hangzhou, Shanghai
