Multimode MM Beige Fiber Optic Fast Connector SC UPC Field Assembly Connector

Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-SC-MM-60
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-SC-MM-60 Color Beige
Insertion Loss 0.5dB Return Loss 30dB
Length 50mm 55mm 60mm Polishing Type PC
Fiber Mode Multimode Fiber Type Multimode
Cable Indoor Cable, Ftth Drop Cable
High Light

Beige Fiber Optic Fast Connector

,

SC UPC Fiber Optic Fast Connector

,

MM SC UPC Field Assembly Connector

Leave a Message
Product Description

Multimode MM Beige Fiber Optic Fast Connector SC UPC Field Assembly Connector


Description:
- The SC mutimode fiber optic fast connector are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field.
- Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.


Applications:
1. FTTH Outlets
2. Distribution frames
3. Maintenance or emergency restoration of fiber networks
4. Patch panels
5. Connection at the desk for LAN environments
6. Fiber Optic Patch Cord & Pigtail



Features
- Fast and easy installation.
- No special assembly tool.
- Can be reconnected in the field.
- No epoxy or polishing required.
- Compatible with both 3mm drop cable and 3x2mm flat cable.
- Field-termination connector with no epoxy or polishing required.
- No matching gel enables low reflection and high reliability.
- Splicing point is inside of the connector.
- No additional splicing work required.
- Easily assembled with one-touch, push-pull system.
- Used for φ3.0mm,φ2.0mm cable and 3x2mm drop cable etc.
- The fusion splice position can be protected by the heat shrinkable tube inside, not easy broken.
- 100% qualified, prolong use life, reduce the Maintenance cost.
- The operator can confirm if the splicing is successful by the monitor of fusion splicing machine, to make it have more stability.

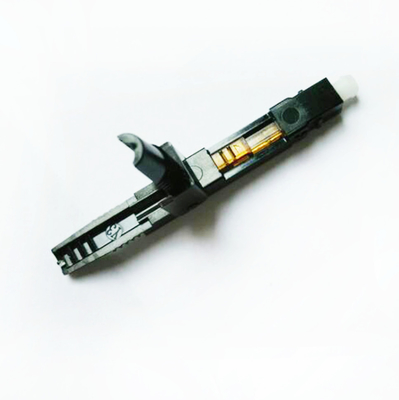

Product photo:


Multimode MM Beige Fiber Optic Fast Connector SC UPC Field Assembly Connector 0


 Technical Data:

Item KCO-SC-MM-60
Suitable Cable OD

2.0mm, 3.0mm, 0.9mm indoor
2*3mm drop cable

Optical fiber diameter 125μm
Tight buffer diameter (μm) 900μm
Fiber mode multi mode
Operation time About 120s ( no fiber cut )
Insert loss ≤ 0.5dB
Return loss > 30dB
Tensile strength >50 N
Using temperature -40~+75°C
On-line tensile strength (20 N) IL ≤ 0.2dB
Mechanical durability (500 times) IL ≤ 0.2dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times) IL ≤ 0.2dB



Delivery Time:
- Material Preparation Time: 3 days (or inventory)
- Production & Assembly Time 7 days
- Testing & Packaging Time: 2 days
- Total Delivery Time: 12 days in 50,000pcs for safe delivery lead time.
- The faster delivery could be negotiable.


Relation products:

Multimode MM Beige Fiber Optic Fast Connector SC UPC Field Assembly Connector 1

Multimode MM Beige Fiber Optic Fast Connector SC UPC Field Assembly Connector 2



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
