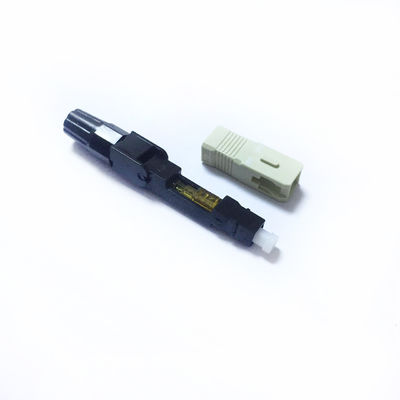

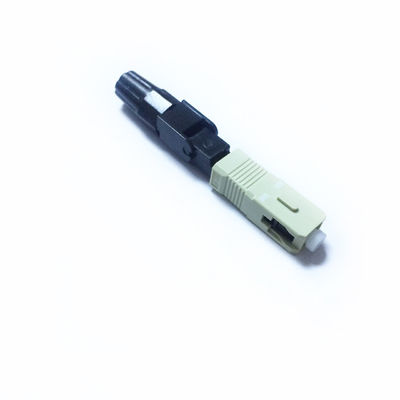

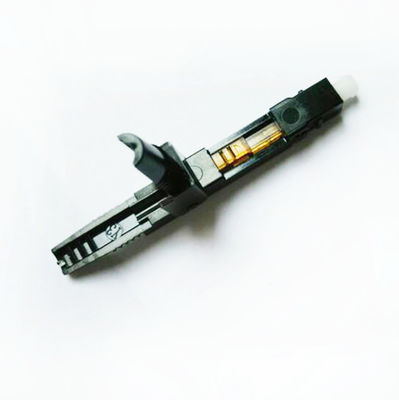

SC Field Assembly Fiber Optic Fast Connector with 0.5dB Insertion Loss 30dB Return Loss and 3mm Drop Cable Compatibility
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO |
| Certification | ISO9001, RoHS |
| Model Number | KCO-SC-MM-55 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | PE bag, carton box, wooden pallet |
| Delivery Time | 2~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 100,000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| P/N | KCO-SC-MM-55 | Color | Beige |
|---|---|---|---|
| Insertion Loss | 0.5dB | Return Loss | 30dB |
| Length | 50mm 55mm 60mm | Polishing Type | PC |
| Fiber Mode | Multimode | Fiber Type | Multimode |
| Cable | Indoor Cable, Ftth Drop Cable | ||
| Highlight | SC Fiber Optic Fast Connector,Multimode Fiber Optic Fast Connector,FTTH fiber optic quick connector |
||
Product Description
SC Field Assembly Fiber Optic Fast Connector Multimode FTTH Fiber Optic Quick Connector
Multimode MM Beige Fiber Optic Fast Connector SC UPC Field Assembly Connector
The SC multimode fiber optic fast connector are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. These connectors make fiber terminations quick, easy and reliable, offering terminations without any hassles and requiring no epoxy, no polishing, no splicing, and no heating while achieving excellent transmission parameters comparable to standard polishing and splicing technology.
Our fast connector significantly reduces assembly and setup time. It features proven mechanical splice technology for precision fiber alignment, a factory pre-cleaved fiber stub, and proprietary index-matching gel to provide immediate low loss termination for both single-mode and multimode optical fibers. These pre-polished connectors are primarily used in FTTH cable installations for FTH projects at end-user sites.
Technical Specifications
| Product Specification | Singe mode(UPC) | Singe mode(APC) | Multimode |
|---|---|---|---|
| Insertion loss | ≤0.3db | ≤0.3db | ≤0.5db |
| Return loss | ≥45db | ≥55db | ≥30db |
| Operating Temperature | -45°C to +85°C | ||
| Durability | ≤0.2db typical change, 1000 times mating | ||
| Ferrule Hole Sizes | 125.0+ 1/-0um, Concertricity:≤1.0um 125.5+ 1/-0um, Concertricity:≤1.0um 126.0+ 1/-0um, Concertricity:≤1.0um |
125.0+ 1/-0um, Concertricity:≤0.5um 125.5+ 1/-0um, Concertricity:≤0.5um 126.0+ 1/-0um, Concertricity:≤0.5um |
127.0um, Concertricity:≤3.0um |
Applications
- FTTH Outlets
- Distribution frames
- Maintenance or emergency restoration of fiber networks
- Patch panels
- Connection at the desk for LAN environments
- Fiber Optic Patch Cord & Pigtail
Key Features
- Fast and easy installation with no special assembly tools required
- Field-reconnectable with no epoxy or polishing needed
- Compatible with both 3mm drop cable and 3x2mm flat cable
- No matching gel enables low reflection and high reliability
- Splicing point is inside the connector with no additional splicing work
- One-touch, push-pull system for easy assembly
- Works with φ3.0mm, φ2.0mm cable and 3x2mm drop cable
- Fusion splice position protected by heat shrinkable tube for durability
- 100% qualified with prolonged use life and reduced maintenance costs
- Splicing success verifiable via fusion splicing machine monitor
Product Images
Delivery Information
Material Preparation Time: 3 days (or inventory)
Production & Assembly Time: 7 days
Testing & Packaging Time: 2 days
Total Delivery Time: 12 days in 50,000pcs for safe delivery lead time
Faster delivery options are negotiable.
OEM/ODM Services
We offer custom branding services for your goods including cables, packaging, labels, and more. Contact our sales team for personalized support.
Packaging Options
- Standard Export Packaging
- Carton box
- Wooden box
- Wooden pallet
Shipping Methods
- International express (UPS, TNT, DHL, etc.)
- International air (CA, AA, EA, etc.)
- Sea freight
- Standard export sea ports: Shenzhen, Hongkong, Ningbo
- Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
