IP68 Waterproof SC Fast Connector with G652/G657 Fiber Type and Low Insertion Loss for FTTH Drop Cable

  • IP68 Waterproof SC Fast Connector with G652/G657 Fiber Type and Low Insertion Loss for FTTH Drop Cable
  • IP68 Waterproof SC Fast Connector with G652/G657 Fiber Type and Low Insertion Loss for FTTH Drop Cable
  • IP68 Waterproof SC Fast Connector with G652/G657 Fiber Type and Low Insertion Loss for FTTH Drop Cable
  • IP68 Waterproof SC Fast Connector with G652/G657 Fiber Type and Low Insertion Loss for FTTH Drop Cable
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-FOAC-SCA-OD-HW
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-FOAC-SCA-OD-HW Color Black
Insertion Loss 0.5dB Return Loss 50dB
Polishing Type PC/ APC Fiber Mode Single Mode
Fiber Type G652, G657 Cable Ftth Drop Cable, Outdoor Cable, Tactical Cable
IP Grade IP68 Application Outdoor
Highlight

IP68 field assembly fast connector

,

FTTH field assembly fast connector

,

Drop Cable SC Fast Connector
Leave a Message
Product Description
IP68 Waterproof Field Assembly Fast Connector FTTH Drop Cable SC Fast Connector
Mini IP SC series field assembly fast connector is a newly designed outdoor waterproof fiber optical connector compatible with Huawei Mini SC connector/adapter. Primarily used for FTTH outdoor installations, this compact connector features IP67 grade protection and can be easily installed in outdoor environments.
Key Applications
  • FTTH & Outdoor Fiber Terminal End
  • Harsh Outdoor Using Environment
  • FTTA BBU RRU
  • Data Video Transmission
  • Optical Fiber Access Of Mobile Base Station
Technical Specifications
Parameter Specification
Waterproof Rate IP68 (1M, 1hour)
Applicable optical cable 2.0x3.0mm, 3.0mm, 5.0mm
Insertion loss ≤0.50dB
Return loss ≥55dB
End face performance Conform to YD T 2341.1-2011
Mechanical durability 1000 times
Cable tension (2.0x3.0mm Ttap Fast Connector) ≥30N; 2Minute
Cable tension (2.0mm,3.0mm Ttap Connector) ≥30N; 2Minute
Cable tension (5.0mm Ttap Connector) ≥70N; 2Minute
Torsion of optical cable ≥15N
Drop performance Allow 10 drops under 1.5m height without abnormal performance
Operation temperature (2.0x3.0mm Ttap Fast Connector) -10℃~+70℃
Operation temperature (2.0mm,3.0mm Ttap Connector) -40℃~+80℃
Operation temperature (5.0mm Ttap Connector) -40℃~+80℃
Hot and humid working environment Long term operation under 90% relative humidity, 70℃
Product Features
  • Spiral clamping mechanism ensures long-term reliable connection
  • Guide mechanism allows one-handed blind operation for quick installation
  • Sealed design provides waterproof, dust-proof, and anti-corrosion protection
  • Compact size for easy operation and durability
  • Through-the-wall seal design eliminates need for welding
  • Compatible with various fast connector types (SC, LC, FC, ST, etc.)

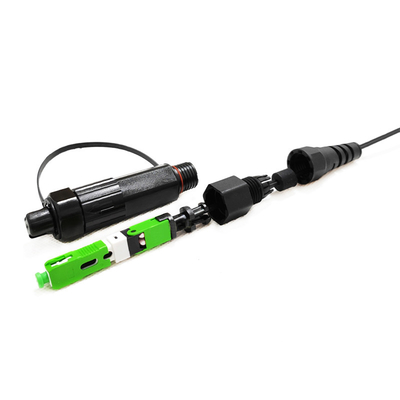

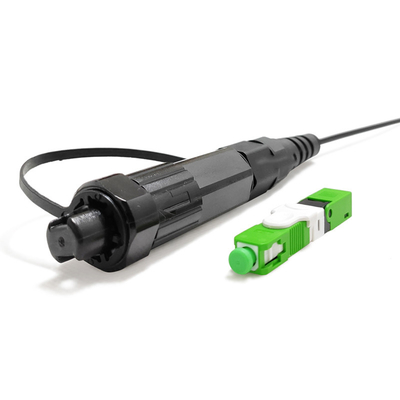

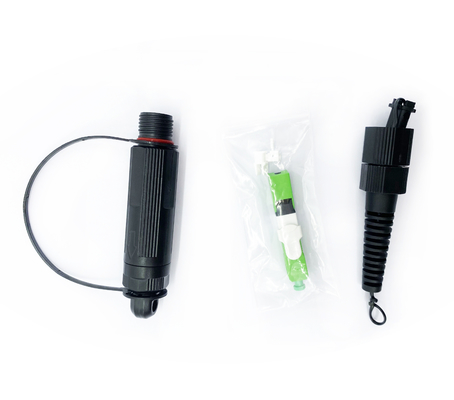

Product Images
IP68 Waterproof SC Fast Connector with G652/G657 Fiber Type and Low Insertion Loss for FTTH Drop Cable 0 IP68 Waterproof SC Fast Connector with G652/G657 Fiber Type and Low Insertion Loss for FTTH Drop Cable 1 IP68 Waterproof SC Fast Connector with G652/G657 Fiber Type and Low Insertion Loss for FTTH Drop Cable 2
OEM/ODM Services
We offer custom branding services for your products. Our OEM and ODM services can apply your logo on cables, packaging, labels, or any other requested location. Contact our sales team for personalized support.
Packaging & Shipping
Packaging: Standard export packing options including carton boxes, wooden boxes, and wooden pallets.
Shipping Methods:
  • International express (UPS, TNT, DHL)
  • International air freight (CA, AA, EA)
  • Sea freight
Standard Export Ports: Shenzhen, Hongkong, Ningbo (sea); Shenzhen, Hongkong, Hangzhou, Shanghai (air)
