IP68 Waterproof Fiber Optic Fast Connector SC APC for G652 G657 FTTH Outdoor Applications

  • IP68 Waterproof Fiber Optic Fast Connector SC APC for G652 G657 FTTH Outdoor Applications
  • IP68 Waterproof Fiber Optic Fast Connector SC APC for G652 G657 FTTH Outdoor Applications
  • IP68 Waterproof Fiber Optic Fast Connector SC APC for G652 G657 FTTH Outdoor Applications
  • IP68 Waterproof Fiber Optic Fast Connector SC APC for G652 G657 FTTH Outdoor Applications
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-FOAC-SCA-OD-HW
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-FOAC-SCA-OD-HW Color Black
Insertion Loss 0.5dB Return Loss 50dB
Polishing Type PC/ APC Fiber Mode Single Mode
Fiber Type G652, G657 Cable Ftth Drop Cable, Outdoor Cable, Tactical Cable
IP Grade IP68 Application Outdoor
Highlight

H Connector Fiber Optic Fast Connector

,

SC APC Fiber Optic Fast Connector

,

FTTH weatherproof fiber connectors
Leave a Message
Product Description
Waterproof Fiber Optic Fast Connector H Connector Mini SC APC For FTTH FTTA
Product Description

The Waterproof H Connector Mini SC APC is designed for FTTH/FTTA fiber optic patch cables with fast connector installation. This innovative connector features:

  • Compatible with Huawei Mini SC connector/adapter for outdoor waterproof applications
  • IP67 grade protection for reliable outdoor installation
  • Compact design for easy field assembly without laboratory termination
  • SC/APC connection within sealed, threaded polymer housing
  • Supports both flat drop and traditional round style OSP cables
Key Features
  • Compact and durable design for easy operation
  • Direct connection to hardened adapters on terminals or closures
  • Eliminates welding requirements for quick interconnection
  • Spiral clamping mechanism ensures long-term reliability
  • One-handed blind connection capability for quick installation
  • Accepts 2.0x3.0mm, 3.0mm, and 5.0mm cable diameters
  • Supports both factory and field installation
Applications
  • Passive Fiber Optic Networks
  • WAN & LAN Network Infrastructure
  • FTTH & Outdoor Fiber Terminal End
  • Harsh Outdoor Environments
  • FTTA BBU RRU Applications
  • Data and Video Transmission Systems
  • Mobile Base Station Optical Fiber Access
Technical Specifications
Parameter Specification
Waterproof Rate IP68 (1M, 1 hour)
Applicable Optical Cable 2.0x3.0mm, 3.0mm, 5.0mm
Insertion Loss ≤0.50dB
Return Loss ≥55dB
End Face Performance Conforms to YD T 2341.1-2011
Mechanical Durability 1000 times
Cable Tension 2.0x3.0mm: ≥30N; 2.0mm/3.0mm: ≥30N; 5.0mm: ≥70N (2 minute test)
Torsion of Optical Cable ≥15N
Drop Performance 10 drops under 1.5m height without abnormal performance
Operation Temperature 2.0x3.0mm: -10℃~+70℃; 2.0mm/3.0mm/5.0mm: -40℃~+80℃
Hot/Humid Environment Long term operation under 90% relative humidity at 70℃
Product Images

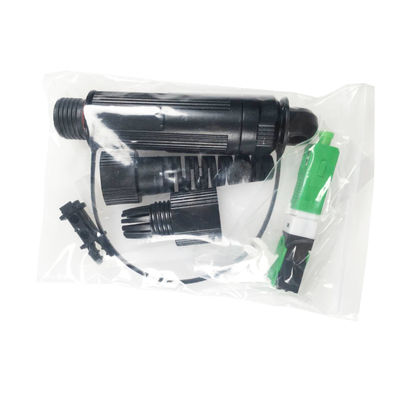

IP68 Waterproof Fiber Optic Fast Connector SC APC for G652 G657 FTTH Outdoor Applications 0

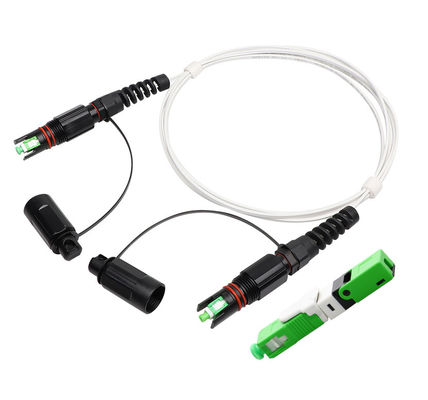

IP68 Waterproof Fiber Optic Fast Connector SC APC for G652 G657 FTTH Outdoor Applications 1

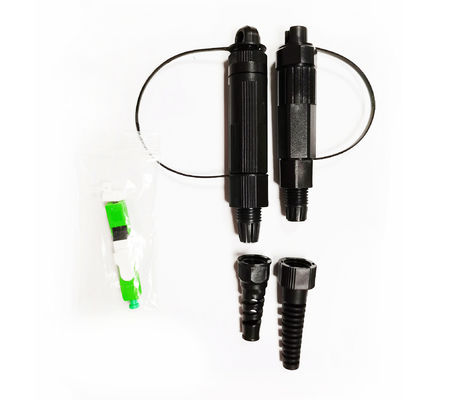

IP68 Waterproof Fiber Optic Fast Connector SC APC for G652 G657 FTTH Outdoor Applications 2
IP68 Waterproof Fiber Optic Fast Connector SC APC for G652 G657 FTTH Outdoor Applications 3
IP68 Waterproof Fiber Optic Fast Connector SC APC for G652 G657 FTTH Outdoor Applications 4
IP68 Waterproof Fiber Optic Fast Connector SC APC for G652 G657 FTTH Outdoor Applications 5
Customization Services

We offer OEM/ODM services to customize products with your brand logo on cables, packaging, labels, or other components. Contact our sales team for personalized solutions.

Packaging & Shipping

Packaging: Standard export packing including carton boxes, wooden boxes, and pallets.

Shipping Options:

  • International express (UPS, TNT, DHL)
  • International air freight (CA, AA, EA)
  • Sea freight
  • Standard export ports: Shenzhen, Hongkong, Ningbo
  • Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
