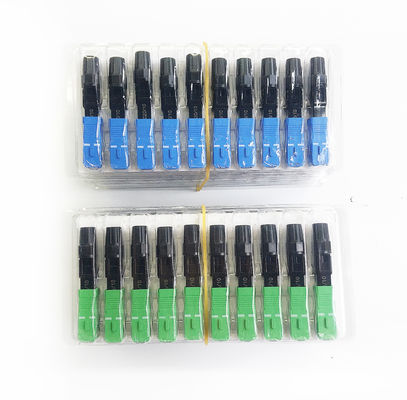

SC/UPC Optical Connector with 0.3dB Insertion Loss 4N Fiber Tension for G652 G657 Fiber

  • SC/UPC Optical Connector with 0.3dB Insertion Loss 4N Fiber Tension for G652 G657 Fiber
  • SC/UPC Optical Connector with 0.3dB Insertion Loss 4N Fiber Tension for G652 G657 Fiber
  • SC/UPC Optical Connector with 0.3dB Insertion Loss 4N Fiber Tension for G652 G657 Fiber
  • SC/UPC Optical Connector with 0.3dB Insertion Loss 4N Fiber Tension for G652 G657 Fiber
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-FC-55-SCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-SC-55-SCU Color Blue
Insertion Loss 0.3dB Return Loss 40dB
3D Pass Polishing Type UPC
Fiber Mode Single Mode Fiber Type G652, G657
Cable Indoor Cable, Ftth Drop Cable Length 55mm
Fiber Tension 4N Cable Tension 40N
Highlight

FTTH SC UPC Fast Connector

,

FTTO SC UPC Fast Connector

,

ftth optical fiber fast connector
Leave a Message
Product Description
Viettel FTTH SC UPC Optical Fiber Fast Connector IL 0.3dB Pass 3D Fiber Tension 4N
Product Description
The SC/UPC Fiber Optical Fast Connector is a revolutionary field-installable optical fiber connector that requires no epoxy and no polishing. This onsite assembly optical connector improves the flexibility of optical wiring design while significantly reducing fiber termination time.
Pre-polished and field-installable, these connectors eliminate the need for hand polishing in the field. Featuring proven mechanical splice technology, a factory pre-cleaved fiber stub, and proprietary index-matching gel, they provide immediate low-loss termination for both single-mode and multimode optical fibers.
Key Applications
  • Asynchronous Transmission Mode (ATM)
  • Passive optical networks (PON)
  • Local Area Networks (LAN)
  • FTTA, FTTH, FTTB, FTTO
  • Cable Television (CATV)
  • Distribution box to RRH connections
  • Remote Radio Head cell tower applications
  • Backbone installation
  • Datacenter cabling
  • Telecommunication networks
  • Industrial & Military applications
Product Features
  • Field-installable, cost-effective, and user-friendly
  • Quick and easy fiber termination in the field
  • No need for fusion splicer, power source, or pressure tools
  • Effective data transmission with small form factor
  • Fusion splice position protected by internal heat shrinkable tube
  • 100% qualified with prolonged service life and reduced maintenance costs
  • Splicing success verifiable via fusion splicing machine monitor

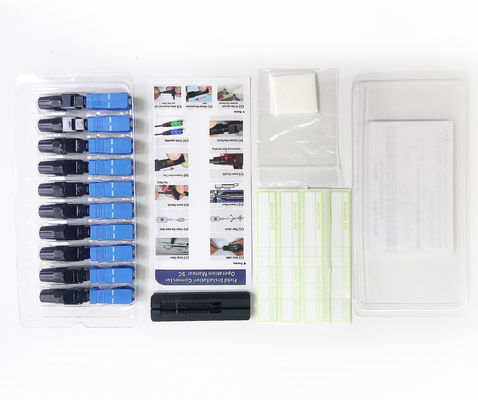

SC/UPC Optical Connector with 0.3dB Insertion Loss 4N Fiber Tension for G652 G657 Fiber 0 SC/UPC Optical Connector with 0.3dB Insertion Loss 4N Fiber Tension for G652 G657 Fiber 1
Technical Specifications
Item KCO-FC-55-SCA
Suitable Cable OD 2.0mm, 3.0mm, 0.9mm indoor
2*3mm drop cable
Optical fiber diameter 125μm
Tight buffer diameter 900μm
Fiber mode Single & multi mode
Operation time About 120s (no fiber cut)
Insert loss ≤ 0.3dB (1310nm & 1550nm)
Return loss > 40dB
Tensile strength >50 N
Using temperature -40~+75°C
On-line tensile strength (20 N) IL ≤ 0.2dB
Mechanical durability (500 times) IL ≤ 0.2dB
Drop-off test (4m height, 3 times) IL ≤ 0.2dB
Delivery Information
Material Preparation Time: 3 days (or inventory)
Production & Assembly Time: 7 days
Testing & Packaging Time: 2 days
Total Delivery Time: 12 days for 50,000pcs (faster delivery negotiable)

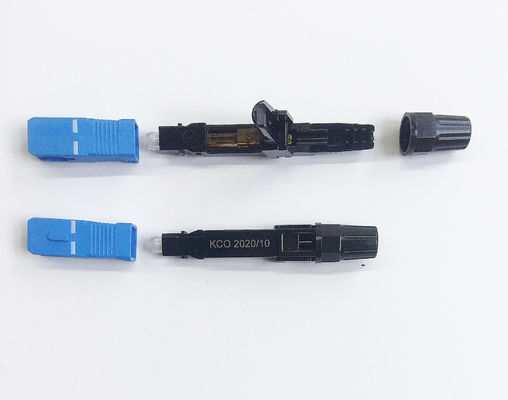

SC/UPC Optical Connector with 0.3dB Insertion Loss 4N Fiber Tension for G652 G657 Fiber 2
OEM/ODM Services
We offer custom branding options for cables, packaging, labels, and other components. Contact our sales team for personalized OEM/ODM solutions.
Packaging & Shipping
Packaging: Standard export packing (carton box, wooden box, wooden pallet)
Shipping Options: International express (UPS, TNT, DHL), air freight, or sea freight
Standard Export Ports: Shenzhen, Hongkong, Ningbo
Standard Export Airports: Shenzhen, Hongkong, Hangzhou, Shanghai
