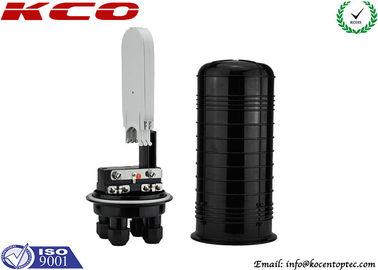

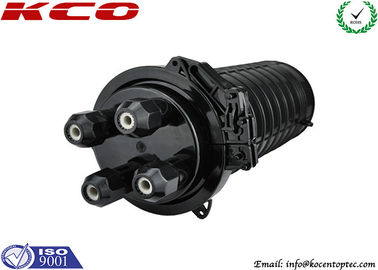

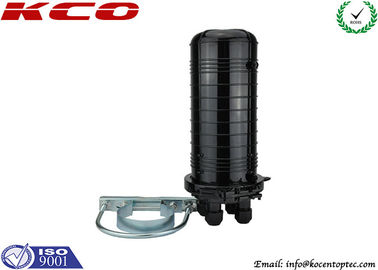

4 Ports Vertical Fiber Optic Splice Closure / Dome Optical Fiber Splice Joint Box 12 24 36 48 72 96 fibers

  • 4 Ports Vertical Fiber Optic Splice Closure / Dome Optical Fiber Splice Joint Box 12 24 36 48 72 96 fibers
  • 4 Ports Vertical Fiber Optic Splice Closure / Dome Optical Fiber Splice Joint Box 12 24 36 48 72 96 fibers
  • 4 Ports Vertical Fiber Optic Splice Closure / Dome Optical Fiber Splice Joint Box 12 24 36 48 72 96 fibers
  • 4 Ports Vertical Fiber Optic Splice Closure / Dome Optical Fiber Splice Joint Box 12 24 36 48 72 96 fibers
  • 4 Ports Vertical Fiber Optic Splice Closure / Dome Optical Fiber Splice Joint Box 12 24 36 48 72 96 fibers
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number SZ-JX005
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 5~14 days after get payment
Payment Terms T/T,L/C
Supply Ability 50,000pcs/month
Product Details
Type Vertical, Dome Cable Port 4
Material PC (or ABS, PP, PPR) Cable Diameter 7.0mm~22.0mm
Min. Capacity 12 Cores Max. Capacity 96 Cores
Model SZ-JX005 Size 400x140mm
Highlight

fiber optic splice enclosure

,

fibre optic splice closure
Leave a Message
Product Description
4 Ports Vertical Fiber Optic Splice Closure
Dome Optical Fiber Splice Joint Box for 12, 24, 36, 48, 72, 96 fibers capacity
Product Overview
We provide vertical type fiber optic splice closures from 6 cores up to 288 cores for fiber optic cable connections in telecom projects. Suitable for aerial, underground, pipeline, and hand-hole applications with cable out-port configurations from 3 to 10 ports.
Quick Specifications
Part Number SZ-JX005-x(fo)
Cable Entry Ports 4 ports
Fiber Capacity 96 cores
Dimensions 400x140mm
Material PC Plastic
Sealing Structure Screw Thread mechanical seal
Cable Diameter 7.0-22.0mm
Working Temperature -40℃ to 65℃
4 Ports Vertical Fiber Optic Splice Closure / Dome Optical Fiber Splice Joint Box 12 24 36 48 72 96 fibers 0
Key Features
  • Two-way cable entries and exits design
  • Can be fixed by metal work
  • Clear optical fiber cable management
  • Closure body made from Super PC material with stainless steel bolts
  • Reopenable design for maintenance
Applications
  • Telecommunication networks
  • Local area networks
  • Aerial hanger, Wall-mounting, Directly buried installations
  • FTTH access network
  • CATV networks
4 Ports Vertical Fiber Optic Splice Closure / Dome Optical Fiber Splice Joint Box 12 24 36 48 72 96 fibers 1 4 Ports Vertical Fiber Optic Splice Closure / Dome Optical Fiber Splice Joint Box 12 24 36 48 72 96 fibers 2

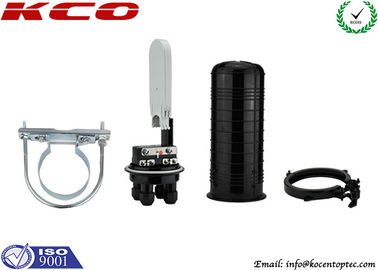

Main Components
Component Quantity Usage Remarks
FOSC cover 1 piece Protecting fiber cable splices 355mm x 150mm
Fiber optic splice tray (FOST) Max. 6 trays (bunchy) Max. 4 trays (ribbon) Fixing heat shrinkable protective sleeve and holding fibers Bunchy:12,24 cores; Ribbon:6 pieces
Fiber holding tray 1 piece Holding fibers with protective coat
Base 1 set Fixing internal and external structure
Plastic hoop 1 set Fixing between FOSC cover and base
Seal fitting 1 piece Sealing between FOSC cover and base
Seal rings for inlet/outlet ports 4 pieces Inner seal of inlet/outlet ports Diameter 12.5mm, shrinks to 7mm
Accessories & Tools
Accessory Quantity Usage
Heat shrinkable protective sleeve Customized Protecting fiber splices
Nylon tie Customized Fixing fiber with protective coat
Special wrench 2 pieces Installing and tightening nuts
Seal tape 1 ring Enlarging diameter of fiber cable
Desiccant 1 bag Desiccating air inside closure
OEM/ODM Services
We offer complete OEM and ODM services including custom logo printing on products, packaging bags, labels, and complete customization according to your requirements.
Packaging & Shipping
Standard export packing with carton boxes, wooden boxes, or wooden pallets. Shipping options include international express (UPS, TNT, DHL), international air freight, and sea freight.
