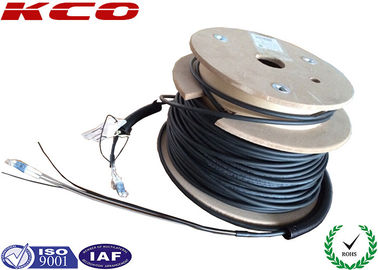

FTTA Telecom Station DLC Armored Protection Break - Out Fiber Optic Patch Cord

  • FTTA Telecom Station DLC Armored Protection Break - Out Fiber Optic Patch Cord
  • FTTA Telecom Station DLC Armored Protection Break - Out Fiber Optic Patch Cord
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS, UL
Model Number DLC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 3~7 days after payment
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cable Cover LSZH, PE Cable Color Black
Cable Length 1m, 50m, 100m, Or Customized Connector DLC, DFC, DLCA, ...
Application Outdoor, Field, Army, CATV, FTTA,... Insertion Loss 0.2dB
Return Loss 55dB Cores No. 2 Cores, 4 Cores, 8 Cores, ...
Highlight

fibre optic patch cable

,

patch cord pigtail
Leave a Message
Product Description

FTTA Telecom station DLC armored protection break-out fiber optic patch cable with 7.0mm GYFJH 2 fiberscable



We can provide DLC armored protection fiber optic patch cable assemblies for 2 cores, 4 cores, 6 cores, 8 cores, 12 cores, 24 cores, ect. Also OEM Service is available, such as inside fiber, connector, cable length, color, cover materials, package all can be customized. All our DLC outdoor fiber optic patch cable assemblies meet RoHS, UL Compliant, and 100% test Insert loss before shipment.



Quick Details about DLC outdoor fiber optic patch cable assemblies:

- Type: DLC fiber optic patch cord

- Mode: Single mode and Multimode

- Cable Fan-out: 0.5M, 1M, or customized

- Ferrule End-face: PC, UPC, APC

- Cable core: 2 cores, 4 cores, 6 cores...or customized

- Cable length: 1M, 2M, 3M,100M….or customized



Description:

The DLC connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the Antenna applications.



Features:

- FTTA , WiMax base station, CATV outdoor Application.

- Optional Diameter: 7.0mm or Customized.

- Optional Jacket: LSZH, PE; Armored or Non Armored.

- IP67 Waterproof protection.

- Standard Duplex LC connector, well connected with standard LC adaptor.

- Available Single mode and Multimode.

- IP67 protection, salt-mist proof, humidity proof, dust proof.

- Aluminum housing, compact design.

- Broad temperature range and wide range of indoor and outdoor cables.

- Easy Operation, reliable and cost-effective Installation.



Applications:

- Telecommunication networks

- CATV, LAN, MAN, WAN, Test &Measurement

- Optical access network

- Fiber optic communication networks



Product pictures:

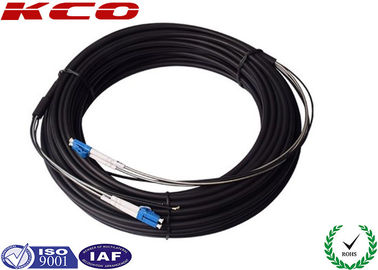

FTTA Telecom Station DLC Armored Protection Break - Out Fiber Optic Patch Cord 0



Specification:

Item Single mode, Multimode
Ferrule End-face PC UPC APC
Insert attenuation ≤0.3dB ≤0.3dB ≤0.3dB
Return loss ≥45dB ≥50dB ≥55dB
repeatability ≤0.1dB ≤0.1dB ≤0.1dB
Operation temperature -20°C~+70°C(PVC)/-40°C~+90°C (LSZH/PE)
Outer diameter 1.6mm(fan-out cable part), 4.8mm, 7.0mm



Performance:

Item Data
Insertion Loss ≤0.2dB
Return Loss SM/UPC≥55dB, SM/APC≥65dB, MM≥35dB
Mechanical life 500cycles
Working temperature -40°C~+70°C
Storage temperature -40°C~+70°C
Operating temperature -10°C~+50°C
Protection Level IP67
Tensile Data Tensile between junction and fiber cable≥100N
Authentication Meet with RoHS



Outdoor fiber optic cable Specification:

Item Data
fiber OS2, OM1, OM2, OM3, OM4
Tension member Aramid Kevlar, Armored Tube
Max. attenuation

SM: ≤0.34dB/km at 1310nm, ≤0.20dB/km at 1550nm

MM: ≤0.60dB/km at 1300nm, ≤2.3dB/km at 850nm
Tensile resistance (short term) 500N (no breakage)
Crush resistance(short term/long term) 1000N/100mm
Inflaming retarding IEC 60332-3
Temperature -40~+70°C
Uvioresistant PASS
Authentication Meet with RoHS &UL



OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.



Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
