LC 90 Degree Fiber Optical Connectors , LC Adjustable Fiber Optic Connector

  • LC 90 Degree Fiber Optical Connectors , LC Adjustable Fiber Optic Connector
  • LC 90 Degree Fiber Optical Connectors , LC Adjustable Fiber Optic Connector
  • LC 90 Degree Fiber Optical Connectors , LC Adjustable Fiber Optic Connector
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number LC/UPC, LC/APC, LC/PC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type LC/UPC, LC/APC, LC/PC Insertion Loss 0.2dB
Mode Multimode, MM, Single Mode, SM, Mono Mode Return Loss 55dB
Cores 2 Cores, Duplex, 1 Cores, Simplex, Multi Fibers Length 3m, 5m, Customized
Highlight

fibre optics connectors

,

plastic optical fiber connectors
Leave a Message
Product Description
LC 90 Degree Fiber Optical Connectors
High-performance LC adjustable fiber optic connectors designed for reliable data transmission in demanding applications.
Product Description
The LC connector features a pull-proof design and compact size ideal for high-density applications. Available in simplex or duplex configurations with 1.25mm zirconia ferrule and unique latching mechanism for stability in system rack mounts.
Key Features
  • Pull-proof design for secure connections
  • Available in simplex or duplex versions
  • 1.25mm zirconia ferrule for precision alignment
  • Unique latching mechanism for rack mount stability
  • Optional 45° or 90° bent boot configurations
  • High-quality ceramic components and materials
  • Compliant with Telcordia GR-326-CORE standards
  • 100% optical performance tested (Insertion Loss & Return Loss)
  • Supports 900 micron, 2mm, and 3mm cable applications
  • Low insertion loss and high return loss
  • Excellent repeatability and precision alignment
  • Compact anti-pull design
  • Available in UPC, PC, or APC polished connectors
Applications
  • Telecommunication Networks and Wide Area Networks
  • Local Area Networks (LAN)
  • Testing Equipment and Instruments
  • Optical Switch Interface Connections
  • Gigabit Ethernet Systems
  • CATV and WAN Applications
  • Active Device Connections
  • Premise Installations
  • Fiber to the Home (FTTH)
Product Images

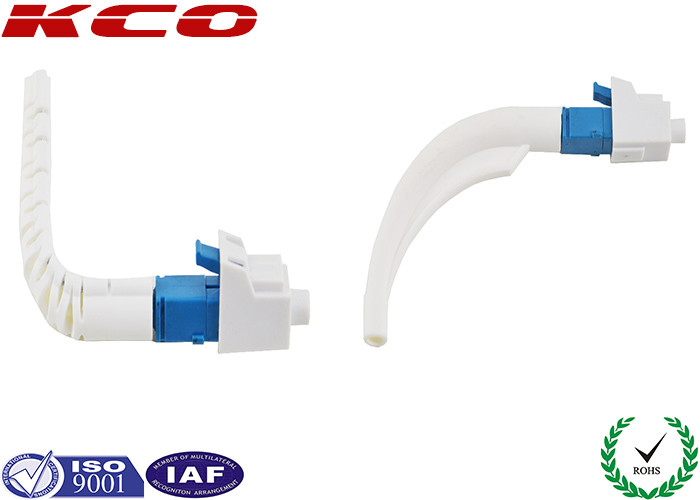

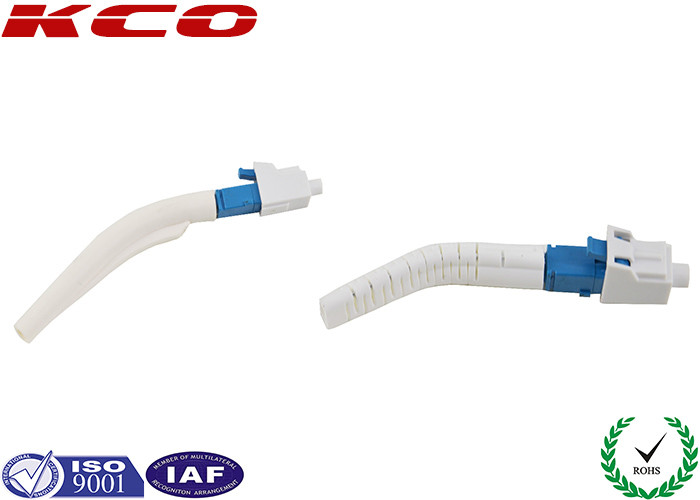

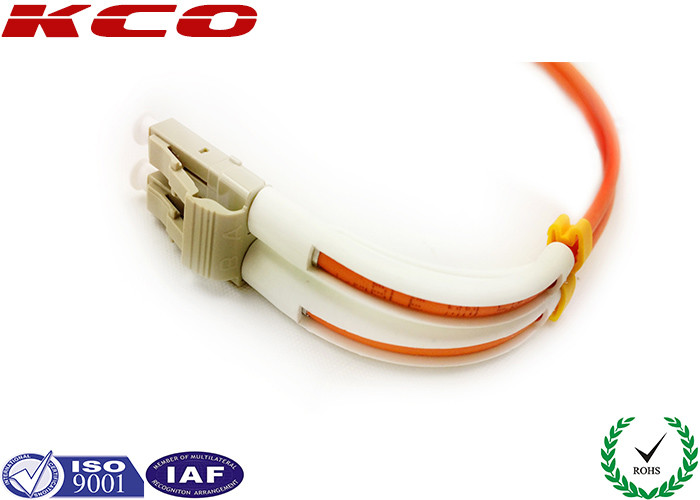

LC 90 Degree Fiber Optical Connectors , LC Adjustable Fiber Optic Connector 0 LC 90 Degree Fiber Optical Connectors , LC Adjustable Fiber Optic Connector 1 LC 90 Degree Fiber Optical Connectors , LC Adjustable Fiber Optic Connector 2 LC 90 Degree Fiber Optical Connectors , LC Adjustable Fiber Optic Connector 3
Technical Specifications
Parameter Single Mode PC Single Mode UPC Single Mode APC Multimode 62.5/125 Multimode 50/125 Multimode 50/125 10G
Insertion Loss (single fiber) 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.)
Return Loss ≥45 dB ≥50 dB ≥60 dB N.A N.A N.A
Insertion Loss (MTRJ Connector) 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.)
Pull Strength ≥98N ≥98N ≥98N ≥98N ≥98N ≥98N
Component Details
Connector Ferrule Ceramic
Alignment Sleeve Ceramic
Connector Body UL 94V-0 rated Thermoplastic
Crimp Insert/Crimp Tube Nickel-Plated Brass/Thermoplastic Elastomer Polymer
Dust Cap Nylon or PVC
Strain Relief Boot Flame retardant (UL-Rated 94-V0) polymer
Connector Style SC, FC, ST, LC, MTRJ, etc
Ordering Information
  • Connector type: SC, LC, FC, ST, MTRJ, SMA, DIN, D4, etc
  • Polish: UPC, PC, APC
  • Mode: Single mode, Multimode
  • Fiber Count: Simplex or Duplex
  • Connector boot diameter: 0.9mm, 2.0mm or 3.0mm
Packaging & Shipping
Standard export packing with carton boxes, wooden boxes, or wooden pallets. Available via international express (UPS, TNT, DHL), international air (CA, AA, EA), or sea freight.
