Product Details
Type MTRJ Insertion Loss 0.2dB
Mode Multimode, MM Return Loss 55dB
Cores 2 Cores, Duplex Length 3m, Customized
Highlight

fibre optics connectors

,

optical fibre cable connectors
Leave a Message
Product Description
MTRJ Fiber Optic Connectors - Multimode MT-RJ Duplex Optic Fiber Connectors
MTRJ fiber optic connectors, also known as MT-RJ optical fiber connectors, feature a monolithic ferrule made of plastic composite that holds a pair of fibers. The connector body clips into a coupler with an intuitive push-and-click motion similar to copper RJ-45 jacks. Fiber alignment is achieved through metal guide pins in the male connector ferrule that join into guide pinholes on the female connector inside the coupler.
Product Overview
The MT-RJ connector represents a duplex small form factor connector design. The monolithic ferrule design ensures reliable polarity maintenance, making MT-RJ connectors ideal for horizontal fiber runs in facility cabling applications. Fiber optic connectors provide precision face-to-face connections between optical fiber cables, ensuring optimal light transmission from source to receiver fiber.
Key Applications
  • Telecommunication Networks & Wide Area Networks
  • Local Area Networks (LAN)
  • Testing Equipment & Instrumentation
  • Optical Switch Interface Connections
  • Gigabit Ethernet Systems
  • CATV and WAN Infrastructure
  • Active Device Connections
  • Premise Installations
  • Fiber to the Home (FTTH) Deployments
Product Features
  • High-quality ceramic components and materials
  • End-face geometry compliant with Telcordia GR-326-CORE
  • 100% optical performance tested (Insertion Loss & Return Loss)
  • Available in simplex, duplex, and higher core densities
  • Compatible with 900 micron, 2mm, and 3mm cable applications
  • Low insertion loss and high return loss performance
  • Excellent repeatability and reliability
  • Compact, anti-pull design for secure connections
  • High precision alignment mechanisms
  • UPC, PC, or APC polished connectors available
Product Image

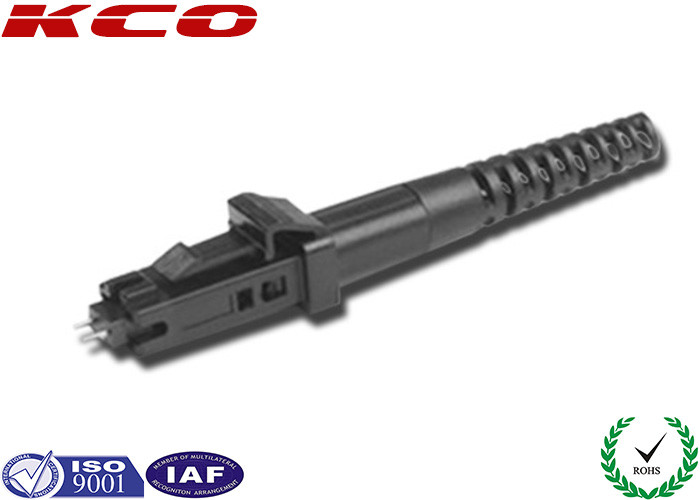

MTRJ Fiber Optic Connectors , Multimode MT-RJ Duplex Optic Fiber Connectors 0

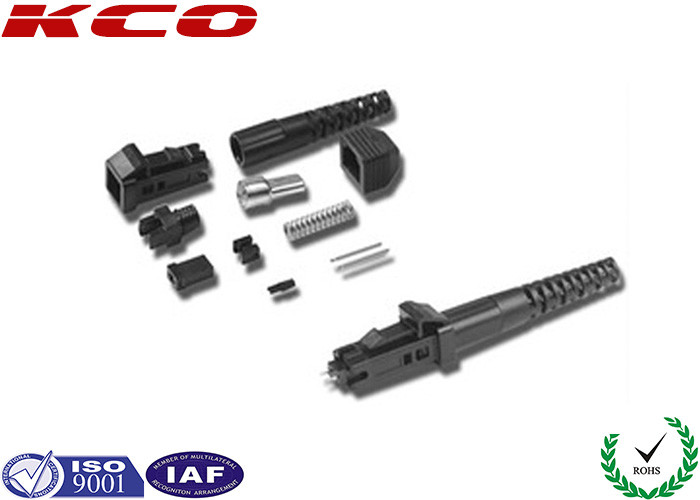

Component Details
Component Material/Specification
Connector Ferrule Ceramic
Alignment Sleeve Ceramic
Connector Body UL 94V-0 rated Thermoplastic
Crimp Insert/Crimp Tube Nickel-Plated Brass/Thermoplastic Elastomer Polymer
Dust Cap Nylon or PVC
Strain Relief Boot Flame retardant (UL-Rated 94-V0) polymer
Connector Style SC, FC, ST, LC, MTRJ, etc.
Technical Specifications
Item Single Mode PC Single Mode UPC Single Mode APC Multimode 62.5/125 Multimode 50/125 Multimode 50/125 10G
Insertion Loss/Connector (Single Fiber) 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.)
Return Loss ≥45 dB ≥50 dB ≥60 dB N.A N.A N.A
Insertion Loss/MTRJ Connector 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.)
Pull Strength ≥98N ≥98N ≥98N ≥98N ≥98N ≥98N
Ordering Information
When ordering, please specify the following parameters:
  • Connector type: SC, LC, FC, ST, MTRJ, SMA, DIN, D4, etc.
  • Polish type: UPC, PC, APC
  • Mode: Single mode or Multimode
  • Fiber Count: Simplex or Duplex
  • Connector boot diameter: 0.9mm, 2.0mm or 3.0mm
OEM/ODM Services Available
We offer comprehensive OEM and ODM services. You can display your brand logo on cables, packaging bags, labels, or any other location as required.
Packaging & Shipping
Packaging: Standard export packaging including carton boxes, wooden boxes, and wooden pallets.
Shipping Methods:
  • International express services: UPS, TNT, DHL, etc.
  • International air freight: CA, AA, EA, etc.
  • Sea freight services
