Duplex SC Connector Housing Set / Optical Fibre Cable Un-assembled Connectors Housing

  • Duplex SC Connector Housing Set / Optical Fibre Cable Un-assembled Connectors Housing
  • Duplex SC Connector Housing Set / Optical Fibre Cable Un-assembled Connectors Housing
  • Duplex SC Connector Housing Set / Optical Fibre Cable Un-assembled Connectors Housing
  • Duplex SC Connector Housing Set / Optical Fibre Cable Un-assembled Connectors Housing
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number SC/APC, SC/UPC, SC/PC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type SC/APC, SC/UPC, SC/PC Color Blue, Green, Beige
Insertion Loss 0.15dB Return Loss 55dB
Core Duplex Mode Single Mode, Multi Mode, Mono Mode
Highlight

fibre optics connectors

,

optical fibre cable connectors
Leave a Message
Product Description
Duplex SC Connector Housing Set
Un-assembled optical fiber cable connector housing for duplex SC applications.
Applications
  • Telecommunication Networks
  • Local Area Networks (LAN)
  • CATV Systems
  • FTTH Installations
  • Testing Equipment
Key Features
  • High-quality ceramic components and materials
  • End-face geometry compliant with Telcordia GR-326-CORE
  • 100% optical performance tested (Insertion Loss & Return Loss)
  • Available in simplex, duplex, and higher core densities
  • Compatible with 900 micron, 2mm, and 3mm cable applications
Product Description
The SC connector features a non-optical disconnect design with a 2.5mm pre-radiused zirconia ferrule. Available in simplex and duplex configurations, this push-pull connection design enables quick patching of cables into rack or wall mounts. Includes reusable duplex holding clip for creating duplex connections.
Product Images

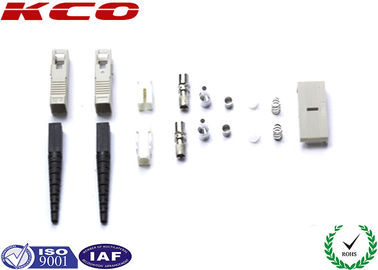

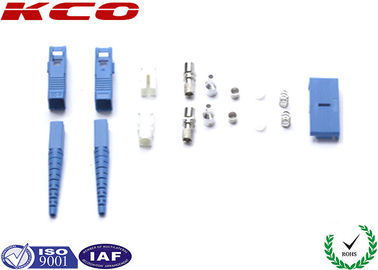

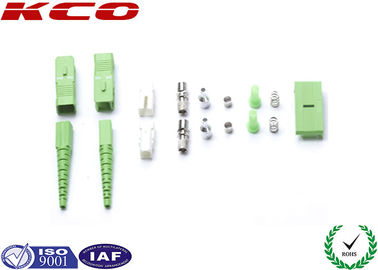

Duplex SC Connector Housing Set / Optical Fibre Cable Un-assembled Connectors Housing 0 Duplex SC Connector Housing Set / Optical Fibre Cable Un-assembled Connectors Housing 1 Duplex SC Connector Housing Set / Optical Fibre Cable Un-assembled Connectors Housing 2
Technical Specifications
Component Material
Connector Ferrule Ceramic
Alignment Sleeve Ceramic
Connector Body UL 94V-0 rated Thermoplastic
Crimp Insert/Crimp Tube Nickel-Plated Brass/Thermoplastic Elastomer Polymer
Dust Cap Nylon or PVC
Strain Relief Boot Flame retardant (UL-Rated 94-V0) polymer
Connector Style SC, FC, ST, LC, MTRJ, etc
Performance Specifications
Parameter Single Mode Multimode
Insertion Loss/Connector 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.)
Return Loss ≥45 dB (PC)
≥50 dB (UPC)
≥60 dB (APC)		 N.A
Insertion Loss/MTRJ Connector 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.)
Pull Strength ≥98N ≥98N
Ordering Information
  • Connector type: SC, LC, FC, ST, MTRJ, etc
  • Polish: UPC, PC, APC
  • Mode: Single mode, Multimode
  • Fiber Count: Simplex or Duplex
  • Connector boot diameter: 0.9mm, 2.0mm or 3.0mm
OEM/ODM Services Available
Custom branding options available for cables, packaging, labels, and other components. Our OEM and ODM services are ready to accommodate your specific requirements.
Packaging
  • Standard export packaging
  • Carton boxes, wooden boxes, wooden pallets
Shipping Options
  • International express: UPS, TNT, DHL, etc
  • International air: CA, AA, EA, etc
  • Sea freight
