Patch Cord Optical Fiber Cable Connector Type LC / APC SM Housing Set

  • Patch Cord Optical Fiber Cable Connector Type LC / APC SM Housing Set
  • Patch Cord Optical Fiber Cable Connector Type LC / APC SM Housing Set
  • Patch Cord Optical Fiber Cable Connector Type LC / APC SM Housing Set
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number LC/UPC, LC/APC, LC/PC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type LC/APC, LC/UPC, LC/PC Mode Multimode, MM, Single Mode, SM, Mono Mode
Insertion Loss 0.15dB Return Loss 55dB
Cores 2 Cores, Duplex, 1 Cores, Simplex, Multi Fibers Length 3m, 5m, Customized
Highlight

fibre optics connectors

,

plastic optical fiber connectors
Leave a Message
Product Description
Patch Cord Optical Fiber Cable Connector Type LC / APC SM Housing Set
High-performance fiber optic connectors designed for reliable data transmission in various network applications.
Applications
  • Telecommunication Networks & Wide Area Networks
  • Local Area Networks (LAN)
  • Testing Equipment & Instrumentation
  • Optical Switch Interface Connections
  • Gigabit Ethernet Systems
  • CATV and WAN Infrastructure
  • Active Device Connections
  • Premise Installations
  • Fiber to the Home (FTTH) Deployments
Key Features
  • High-quality ceramic components and materials
  • End-face geometry compliant with Telcordia GR-326-CORE
  • 100% tested for optical performance (Insertion Loss & Return Loss)
  • Available in simplex, duplex, and higher core densities
  • Compatible with 900 micron, 2mm, and 3mm cable applications
  • Low insertion loss and high return loss
  • Excellent repeatability and reliability
  • Compact anti-pull design for secure connections
  • High precision alignment mechanism
  • UPC, PC, or APC polished connectors available
Product Description
The LC connector features a pull-proof design and compact size ideal for high-density applications. Available in both simplex and duplex configurations, these connectors utilize a 1.25mm zirconia ferrule and incorporate a unique latching mechanism that ensures stability in system rack mounts. Optional 45-degree or 90-degree bent boots are available for custom fiber optic patch cable assemblies.
Fiber optic connectors provide precision face-to-face coupling between transmission and receiving fibers, ensuring optimal system performance and stability through excellent insertion loss characteristics and optical performance.
Product Images

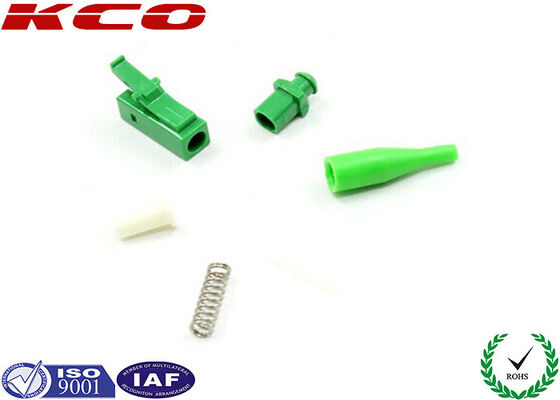

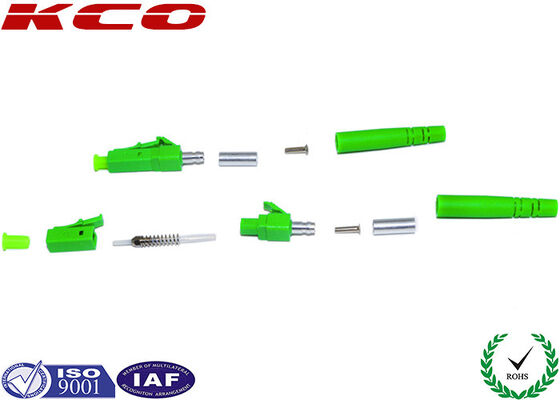

Patch Cord Optical Fiber Cable Connector Type LC / APC SM Housing Set 0 Patch Cord Optical Fiber Cable Connector Type LC / APC SM Housing Set 1
Technical Specifications
Component Material
Connector Ferrule Ceramic
Alignment Sleeve Ceramic
Connector Body UL 94V-0 rated Thermoplastic
Crimp Insert/Crimp Tube Nickel-Plated Brass/Thermoplastic Elastomer Polymer
Dust Cap Nylon or PVC
Strain Relief Boot Flame retardant (UL-Rated 94-V0) polymer
Connector Style SC, FC, ST, LC, MTRJ, etc.
Parameter Single Mode Multimode
Insertion Loss/Connector (Single Fiber) 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.)
Return Loss ≥45 dB (PC)
≥50 dB (UPC)
≥60 dB (APC)		 N.A
Insertion Loss/MTRJ Connector 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.)
Pull Strength ≥98N ≥98N
Ordering Information
  • Connector Type: SC, LC, FC, ST, MTRJ, SMA, DIN, D4, etc.
  • Polish Type: UPC, PC, APC
  • Mode: Single Mode, Multimode
  • Fiber Count: Simplex or Duplex
  • Connector Boot Diameter: 0.9mm, 2.0mm or 3.0mm
OEM/ODM Services
Custom branding options available for cables, packaging, labels, and other components. Our OEM and ODM services can accommodate your specific branding requirements.
Packaging & Shipping
Standard export packaging includes carton boxes, wooden boxes, and wooden pallets. Shipping options include international express (UPS, TNT, DHL), international air freight, and sea freight.
