2in 2out 12fo 24fo 36fo 72fo Inline Type FOSC / Horizontal Splice Box Fiber Optic Joint Closure

  • 2in 2out 12fo 24fo 36fo 72fo Inline Type FOSC / Horizontal Splice Box Fiber Optic Joint Closure
  • 2in 2out 12fo 24fo 36fo 72fo Inline Type FOSC / Horizontal Splice Box Fiber Optic Joint Closure
  • 2in 2out 12fo 24fo 36fo 72fo Inline Type FOSC / Horizontal Splice Box Fiber Optic Joint Closure
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number Inline 2-2-01-xFO
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T,L/C
Supply Ability 50,000pcs/week
Product Details
Type Inline, Horizontal Type Cable Ports 4 Ports
Cable Diameter 8.0~22.0mm Min. Capacity 4 Cores
Max Capacity 96 Cores Material PPR, ABS, PC, PP
Weight 3KG Size 460x180x120mm
Highlight

fiber optic splice enclosure

,

fibre optic splice closure
Leave a Message
Product Description
2in 2out Inline Type FOSC / Horizontal Splice Box Fiber Optic Joint Closure
Inline type fiber optic splice closure, also known as horizontal type optical fiber splice enclosure box, is designed for fiber optic cable connections in telecom projects. Available in configurations from 6 cores up to 288 cores, suitable for aerial, underground, pipeline, and hand-hole installations.
Product Specifications
Part Number: Inline 2-2-01
Cable Entry Ports: 4 ports (configurable from 3 to 10 ports)
Fiber Capacity: 96 cores (available in 12, 24, 36, 48, 72 core configurations)
Dimensions: 380 × 175 × 80mm
Weight: Approximately 1.5kg
Material: ABS/PC Plastic
Sealing Structure: Silica gel
Cable Diameter Range: 7.0-22.0mm
Operating Temperature: -40℃ to 65℃
Key Features
  • Excellent corrosion resistance
  • Suitable for harsh environmental conditions
  • Anti-lighting protection
  • Superior water-proof functionality
Applications
  • Aerial, direct buried, underground, pipeline installations
  • Hand-holes, duct mounting, wall mounting
  • FTTH access networks
  • Telecommunication networks
  • CATV networks
  • Data communications networks
  • Local area networks
Product Images

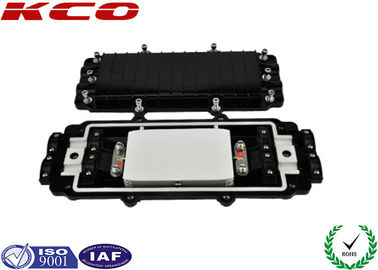

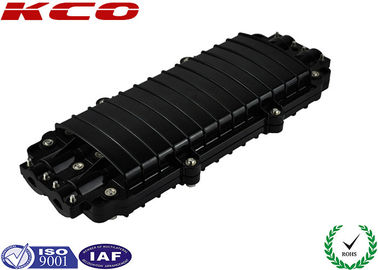

2in 2out 12fo 24fo 36fo 72fo Inline Type FOSC / Horizontal Splice Box Fiber Optic Joint Closure 0 2in 2out 12fo 24fo 36fo 72fo Inline Type FOSC / Horizontal Splice Box Fiber Optic Joint Closure 1
Main Components
No. Name Quantity Usage Remark
1 Crust 1 set Protecting fiber cable splices
2 Fusion splice tray Max. 4 trays Fix fiber, protect heat-shrinkable tube sleeve
3 Foundation 1 set Fix cable, reinforced core and tray
4 Seal fitting 1 set Air-proof between cover and bottom
5 Port plug 4 pieces Sealing empty ports
6 Valve 1 set Pressure measurement, inspection sealing Configure by user
Accessories List
No. Name of Accessories Quantity Usage Remarks
1 Heat shrinkable tube Protecting fiber splices Configuration as per capacity
2 Nylon tie Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable to fit seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Label tape 1 piece Sign fiber
7 Spanner 1 piece Install bolts of shell
8 Desiccant 1 bag Desiccating air
OEM/ODM Services
We offer comprehensive OEM and ODM services, including custom logo printing on products, packaging, labels, and other customization options to meet your specific branding requirements.
Packaging & Shipping
Packaging: Standard export packing with carton boxes, wooden boxes, or wooden pallets.
Shipping Methods:
  • International express (UPS, TNT, DHL, etc.)
  • International air freight
  • Sea freight
