48fo 96fo Enclosure Fiber Optic Splice Box Junction Box 2 In 2 Out Wall Mounted

  • 48fo 96fo Enclosure Fiber Optic Splice Box Junction Box 2 In 2 Out Wall Mounted
  • 48fo 96fo Enclosure Fiber Optic Splice Box Junction Box 2 In 2 Out Wall Mounted
  • 48fo 96fo Enclosure Fiber Optic Splice Box Junction Box 2 In 2 Out Wall Mounted
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number Dome 2-2-02
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 5~14 days after get payment
Payment Terms T/T,L/C
Supply Ability 50,000pcs/month
Product Details
Type Vertical, Dome Material PC (or ABS, PP, PPR)
Cable Diameter 7.0mm~22.0mm Max. Capacity 96 Cores
Model Dome 2-2-02 Weight 2.5kg
Highlight

fiber optic splice enclosure

,

fiber optic joint closure
Leave a Message
Product Description
Vertical Fiber Optic Splice Closure
48FO 96FO Enclosure Fiber Optic Splice Box Junction Box 2 In 2 Out Wall Mounted
Product Overview
Professional vertical dome type fiber optic splice closure designed for fiber optic cable connections in telecommunications projects. Available in capacities from 6 cores up to 288 cores with versatile installation options including aerial, underground, pipeline, and hand-hole applications.
Technical Specifications
  • Product Name: Vertical Fiber Optic Joint Splice Enclosure Box
  • Part Number: Dome 2-2-02 (FO)
  • Cable Entry Ports: 4 ports
  • Fiber Capacity: 96 cores
  • Dimensions: 400x140mm
  • Material: PC Plastic/ABS
  • Weight: 2.5kg
  • Sealing Structure: Screw Thread Mechanical Seal
  • Cable Diameter Range: 7.0-22.0mm
  • Operating Temperature: -40℃ to 65℃
Applications
  • Telecommunication Networks
  • Local Area Networks
  • Aerial Hanger, Wall-Mounting, Direct Burial
  • FTTH Access Network
  • CATV Networks
Key Features
  • Two-way cable entry and exit design
  • Metal work compatible fixing system
  • Clear optical fiber cable management
  • High-strength PC material construction
  • Stainless steel bolt components
  • Reopenable closure design
Product Images

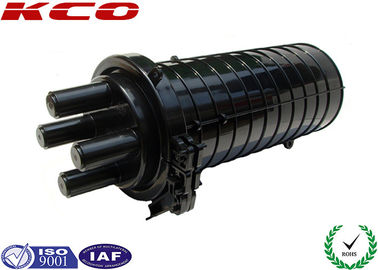

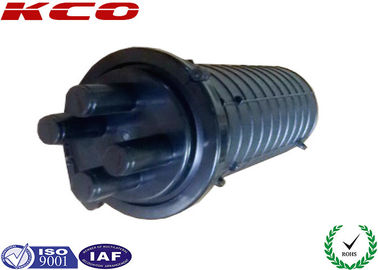

48fo 96fo Enclosure Fiber Optic Splice Box Junction Box 2 In 2 Out Wall Mounted 0 48fo 96fo Enclosure Fiber Optic Splice Box Junction Box 2 In 2 Out Wall Mounted 1
Main Components
No. Component Name Quantity Usage Remarks
1FOSC Cover1 pieceProtecting fiber cable splices355mm x 150mm
2Fiber Optic Splice Tray (FOST)Max. 6 trays (bunchy) Max. 4 trays (ribbon)Fixing heat shrinkable protective sleeve and holding fibersBunchy:12,24 cores; Ribbon:6 pieces
3Fiber Holding Tray1 pieceHolding fibers with protective coat
4Base1 setFixing internal and external structure
5Plastic Hoop1 setFixing between FOSC cover and base
6Seal Fitting1 pieceSealing between FOSC cover and base
7Seal Rings for Inlet/Outlet Ports4 piecesInner seal of inlet/outlet portsDiameter 12.5mm, shrinks to 7mm
8Pressure Testing Valve1 setPressure and sealing testingAs per requirement
9Earthing Deriving Device1 setDeriving metal parts for earthing connectionAs per requirement
Accessories and Tools
No. Accessory Quantity Usage Remarks
1Heat Shrinkable Protective SleeveCustomizedProtecting fiber splicesAs per capacity
2Nylon TieCustomizedFixing fiber with protective coatAs per capacity
3Earthing Wire1 piecePutting through between earthing devicesAs per actual requirement
4Abrasive Cloth1 pieceScratching fiber cables
5Labeling Paper1 pieceLabeling fibers
6Special Wrench2 piecesInstalling and tightening nuts
7Measuring Paper1 pieceMeasuring perimeter with seal tape
8Seal Tape1 ringEnlarging diameter of fiber cableAs per specification
9Insulation Tape1 ringEnlarging diameter for easy fixing
10Metal Hoop1 setFor wall mounting and pole hugging
11Buffer TubeCustomer decidedManaging buffer tubesAs per requirement
12Desiccant1 bagDesiccating air inside FOSC
Customization Services
OEM and ODM services available including custom LOGO printing on goods, packaging bags, labels, and complete customization options.
Packaging & Shipping
Packaging
Standard export packing with carton boxes, wooden boxes, and wooden pallets.
Shipping Methods
  • International Express: UPS, TNT, DHL
  • International Air: CA, AA, EA
  • Sea Freight
