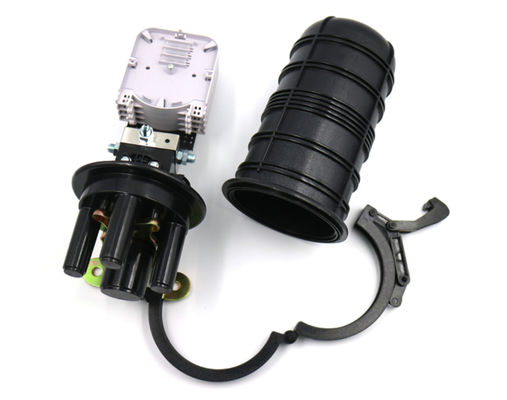

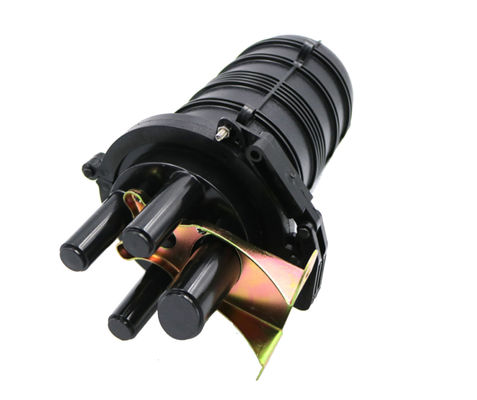

Mini Size Fibra Optica Splice Closure Box 12 / 24 Fibres 4 Port / 1in 3out Dome Splice Enclosure Box

  • Mini Size Fibra Optica Splice Closure Box 12 / 24 Fibres 4 Port / 1in 3out Dome Splice Enclosure Box
  • Mini Size Fibra Optica Splice Closure Box 12 / 24 Fibres 4 Port / 1in 3out Dome Splice Enclosure Box
  • Mini Size Fibra Optica Splice Closure Box 12 / 24 Fibres 4 Port / 1in 3out Dome Splice Enclosure Box
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-Dome-1348M
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 5~14 days after get payment
Payment Terms T/T,L/C
Supply Ability 50,000pcs/month
Product Details
Type Dome, Vertical Material PC (or ABS, PP, PPR)
Max. Capacity 48 Cores Model Dome 1-3 24
Size 350x150mm Weight 1.2KG
Highlight

fiber optic splice enclosure

,

fiber optic joint closure
Leave a Message
Product Description
Mini Size Fiber Optic Splice Closure Box

Compact dome splice enclosure designed for 12/24 fibers with 4-port configuration (1 input, 3 output) for reliable fiber optic network protection.

Key Features
  • Two-way cable entry and exit design for flexible installation
  • Metal work compatible mounting system
  • Clear optical fiber cable management
  • Super PC material construction with stainless steel bolts
  • Reopenable design for maintenance and upgrades
Applications
  • Telecommunication networks
  • Local area networks
  • Aerial hanger, wall-mounting, and direct burial installations
  • FTTH access networks
  • CATV networks
Technical Specifications
Product Name: Dome Fiber Optic Joint Splice Closure Box
Part Number: Dome 1-3(FO)
Cable Entry Ports: 4 ports
Fiber Capacity: 48 cores
Weight: 1.2kg
Dimensions: 350×150mm
Material: ABS Plastic, PPR
Cable Diameter: 7.0-22.0mm
Operating Temperature: -40℃ to 65℃
Sealing Structure: Screw Thread mechanical seal
Installation Methods: Aerial, direct buried, underground, pipeline, hand-holes
Product Image
Mini Size Fibra Optica Splice Closure Box 12 / 24 Fibres 4 Port / 1in 3out Dome Splice Enclosure Box 0
Main Components
No. Component Name Quantity Usage Remarks
1 FOSC Cover 1 piece Protecting fiber cable splices 355mm × 150mm (Height × Diameter)
2 Fiber Optic Splice Tray (FOST) Max. 6 trays (bunchy)
Max. 4 trays (ribbon)		 Fixing heat shrinkable protective sleeve and holding fibers Bunchy: 12,24 cores
Ribbon: 6 pieces
3 Fiber Holding Tray 1 piece Holding fibers with protective coat
4 Base 1 set Fixing internal and external structure
5 Plastic Hoop 1 set Fixing between FOSC cover and base
6 Seal Fitting 1 piece Sealing between FOSC cover and base
7 Seal Rings for Ports 4 pieces Inner seal of inlet/outlet ports Diameter: 12.5mm (shrinks to 7mm)
8 Pressure Testing Valve 1 set Pressure and sealing testing after air injection Configuration as per requirement
9 Earthing Device 1 set Grounding metal parts of fiber cables Configuration as per requirement
Accessories and Tools
No. Accessory Quantity Usage Remarks
1 Heat Shrinkable Protective Sleeve Customized Protecting fiber splices Configuration as per capacity
2 Nylon Tie Customized Fixing fiber with protective coat Configuration as per capacity
3 Earthing Wire 1 piece Connection between earthing devices As per actual requirement
4 Abrasive Cloth 1 piece Scratching fiber cables
5 Labeling Paper 1 piece Labeling fibers
6 Special Wrench 2 pieces Installing and tightening nuts
7 Measuring Paper 1 piece Measuring perimeter with seal tape
8 Seal Tape 1 ring Enlarging cable diameter for gasket fit Configuration as per specification
9 Insulation Tape 1 ring Enlarging cable diameter for fixing
10 Metal Hoop 1 set Wall mounting and pole hugging
11 Buffer Tube Customer decided Fiber management and FOST fixing Configuration as per requirement
12 Desiccant 1 bag Air desiccation before sealing
OEM/ODM Services
We offer comprehensive OEM and ODM services. Custom branding options available for cables, packaging, labels, and other components according to your specifications.
Packaging & Shipping
Packaging
  • Standard export packaging
  • Carton boxes, wooden boxes, wooden pallets
Shipping Methods
  • International express: UPS, TNT, DHL, etc.
  • International air freight
  • Sea freight
