Dome Fiber Optic Splice Closure 96 Cores 1 In - 4 Out Cable Ports , Fo Splice Box

  • Dome Fiber Optic Splice Closure 96 Cores 1 In - 4 Out Cable Ports , Fo Splice Box
  • Dome Fiber Optic Splice Closure 96 Cores 1 In - 4 Out Cable Ports , Fo Splice Box
  • Dome Fiber Optic Splice Closure 96 Cores 1 In - 4 Out Cable Ports , Fo Splice Box
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number SZ-JX005
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 5~14 days after get payment
Payment Terms T/T,L/C
Supply Ability 50,000pcs/month
Product Details
Type Vertical, Dome Cable Port 4
Material PC (or ABS, PP, PPR) Cable Diameter 7.0mm~22.0mm
Min. Capacity 12 Cores Max. Capacity 96 Cores
Model SZ-JX005 Size 400x140mm
Highlight

fiber optic splice enclosure

,

fiber optic joint closure
Leave a Message
Product Description
Dome Fiber Optic Splice Closure 96 Cores
Vertical dome fiber optic splice enclosure with 1 input and 4 output cable ports, designed for reliable fiber optic cable connections in telecommunications projects.
Product Overview
This vertical fiber optic splice closure (dome type) is available in capacities ranging from 6 cores up to 288 cores, suitable for aerial, underground, pipeline, and hand-hole applications in telecom infrastructure.
  • Cable output ports: 3 to 10 ports available
  • Also available in in-line type configurations
  • OEM services including logo printing, custom packaging, and labeling
Technical Specifications
Product Name: Dome Fiber Optic Joint Splice Enclosure Box
Part Number: Dome 1-4 (FO)
Cable Entry Ports: 5 ports
Fiber Capacity: 144 cores
Dimensions: 430x200mm
Material: ABS or PC Plastic
Cable Diameter Range: 7.0-22.0mm
Operating Temperature: -40℃ to 65℃
Applications: Aerial, Direct buried, underground, pipeline, hand-holes
Sealing Structure: Screw Thread mechanical seal
Key Features
  • Two-way cable entry and exit design
  • Compatible with metal work mounting
  • Clear optical fiber cable management
  • Closure body made from Super PC material with stainless steel bolts
  • Reopenable design for maintenance and upgrades
Applications
  • Telecommunication networks
  • CATV networks
  • Local area networks
  • Aerial hanger, Wall-mounting, Directly buried installations
  • FTTH access network deployments

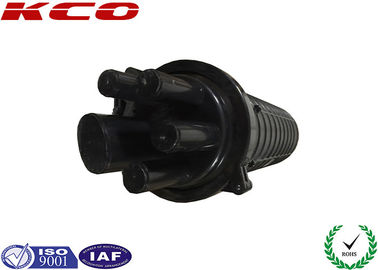

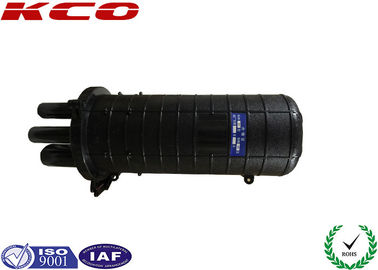

Product Image
Dome Fiber Optic Splice Closure 96 Cores 1 In - 4 Out Cable Ports , Fo Splice Box 0
Main Components
No. Component Name Quantity Usage Remarks
1 FOSC Cover 1 piece Protecting fiber cable splices Height x Diameter: 355mm x 150mm
2 Fiber Optic Splice Tray (FOST) Max. 6 trays (bunchy) Max. 4 trays (ribbon) Fixing heat shrinkable protective sleeve and holding fibers Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces)
3 Fiber Holding Tray 1 pcs Holding fibers with protective coat
4 Base 1 set Fixing internal and external structure
5 Plastic Hoop 1 set Fixing between FOSC cover and base
6 Seal Fitting 1 pc Sealing between FOSC cover and base
7 Seal Rings for Inlet/Outlet Ports 4 pcs Inner seal of inlet/outlet ports Diameter: 12.5mm, can shrink to 7mm
8 Pressure Testing Valve 1 set Pressure testing and sealing testing after air injection Configuration as per requirement
9 Earthing Deriving Device 1 set Deriving metal parts of fiber cables for earthing connection Configuration as per requirement
Accessories and Tools
No. Accessory Quantity Usage Remarks
1 Heat Shrinkable Protective Sleeve Customized Protecting fiber splices Configuration as per capacity
2 Nylon Tie Customized Fixing fiber with protective coat Configuration as per capacity
3 Earthing Wire 1 piece Putting through between earthing devices To put through as per actual requirement
4 Abrasive Cloth 1 piece Scratching fiber cables
5 Labeling Paper 1 piece Labeling fibers
6 Special Wrench 2 pieces Installing and tightening nuts
7 Measuring Paper 1 piece Measuring perimeter with seal tape
8 Seal Tape 1 ring Enlarging diameter of fiber cable Configuration as per specification
9 Insulation Tape 1 ring Enlarging diameter for easy fixing
10 Metal Hoop 1 set For wall mounting and pole hugging
11 Buffer Tube Decided by customers Managing buffer and fiber organization Configuration as per requirement
12 Desiccant 1 bag Desiccating air inside FOSC
OEM/ODM Services
We offer comprehensive OEM and ODM services including custom branding on products, packaging bags, labels, and any other required locations to display your company logo and branding.
Packaging & Shipping
Packaging: Standard export packing using carton boxes, wooden boxes, or wooden pallets.
Shipping Methods:
  • International express: UPS, TNT, DHL, etc.
  • International air freight
  • Sea freight
