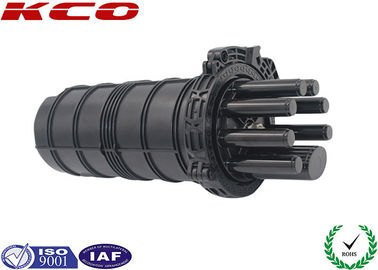

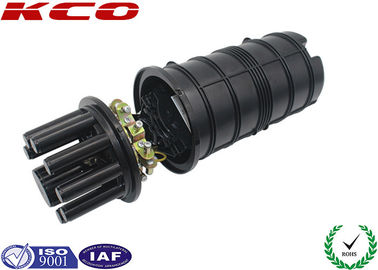

Mini Size Dome Type 12 24 48 Cores Splice Closure Fiber Optic 1 In 7 Out Cable Ports Pipeline

  • Mini Size Dome Type 12 24 48 Cores Splice Closure Fiber Optic 1 In 7 Out Cable Ports Pipeline
  • Mini Size Dome Type 12 24 48 Cores Splice Closure Fiber Optic 1 In 7 Out Cable Ports Pipeline
  • Mini Size Dome Type 12 24 48 Cores Splice Closure Fiber Optic 1 In 7 Out Cable Ports Pipeline
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number Dome 1-7
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 5~14 days after get payment
Payment Terms T/T,L/C
Supply Ability 50,000pcs/month
Product Details
Type Vertical, Dome Cable Port 1in-7 Out
Material PC (or ABS, PP, PPR) Weight 2.0kg
Min. Capacity 12 Cores Max. Capacity 144 Cores
Model Dome 1-7 Size 300x130mm
Highlight

fiber optic splice enclosure

,

fiber optic joint closure
Leave a Message
Product Description
Mini Dome Type Fiber Optic Splice Closure
Compact vertical fiber optic splice enclosure designed for 12, 24, and 48 core applications with 1 input and 7 output cable ports. Ideal for pipeline, aerial, underground, and hand-hole installations in telecommunications projects.
Product Overview
This dome-type vertical fiber optic splice closure supports fiber capacities from 6 cores up to 288 cores. Featuring multiple cable ports (3 to 10 ports available), it provides reliable protection for fiber optic cable connections in various deployment scenarios.
Technical Specifications
Part Number: Dome 1-7 / 1in-7out(fo)
Cable Entry Ports: 8 ports
Fiber Capacity: 144 cores
Dimensions: 300×130mm
Weight: 2.0kg
Material: PC Plastic or PPR
Sealing Structure: Screw Thread Mechanical Seal
Cable Diameter: 7.0-22.0mm
Temperature Range: -40℃ to 65℃
Applications
  • Telecommunication networks
  • CATV networks
  • Local area networks
  • FTTH access networks
  • Aerial hanger, wall-mounting, direct burial
Key Features
  • Reopenable design for maintenance access
  • Two-way cable entry and exit configuration
  • Metal work fixation capability
  • Clear optical fiber cable management
  • High-strength PC material construction
  • Stainless steel bolt components
Product Image
Mini Size Dome Type 12 24 48 Cores Splice Closure Fiber Optic 1 In 7 Out Cable Ports Pipeline 0
Main Components
Component Quantity Usage Remarks
FOSC Cover 1 piece Protecting fiber cable splices 355mm × 150mm
Fiber Optic Splice Tray (FOST) Max. 6 trays (bunchy) / 4 trays (ribbon) Fixing heat shrinkable protective sleeves and holding fibers Bunchy: 12,24 cores; Ribbon: 6 pieces
Fiber Holding Tray 1 piece Holding fibers with protective coat
Base 1 set Fixing internal and external structure
Plastic Hoop 1 set Fixing between FOSC cover and base
Seal Fitting 1 piece Sealing between FOSC cover and base
Seal Rings for Ports 4 pieces Inner seal of inlet/outlet ports 12.5mm diameter (shrinks to 7mm)
Accessories & Tools
Accessory Quantity Usage Remarks
Heat Shrinkable Protective Sleeve Customized Protecting fiber splices As per capacity
Nylon Tie Customized Fixing fiber with protective coat As per capacity
Special Wrench 2 pieces Installing and tightening nuts
Metal Hoop 1 set Wall mounting and pole hugging
Desiccant 1 bag Desiccating air inside closure
Customization & Services
OEM and ODM services available including custom logo printing, packaging, labeling, and other modifications to meet specific requirements.
Packaging & Shipping
Standard export packaging using carton boxes, wooden boxes, or wooden pallets. Shipping options include international express (UPS, TNT, DHL), international air freight, and sea freight.
