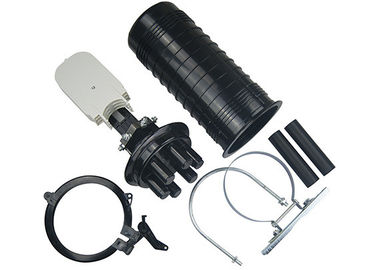

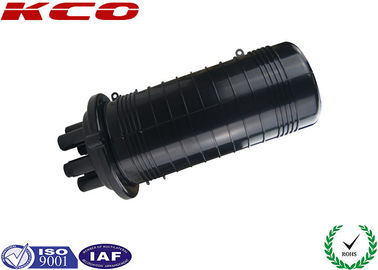

Big Fibre Optic Splice Enclosure , Fibre Optic Splice Box 24 48 72 96 Cores Vertical 3 in 3 out

  • Big Fibre Optic Splice Enclosure , Fibre Optic Splice Box 24 48 72 96 Cores Vertical 3 in 3 out
  • Big Fibre Optic Splice Enclosure , Fibre Optic Splice Box 24 48 72 96 Cores Vertical 3 in 3 out
  • Big Fibre Optic Splice Enclosure , Fibre Optic Splice Box 24 48 72 96 Cores Vertical 3 in 3 out
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number Dome 3-3-01
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 5~14 days after get payment
Payment Terms T/T,L/C
Supply Ability 50,000pcs/month
Product Details
Type Dome Cable Port 3in-3out
Weight 3.0kg Max. Capacity 144 Cores
Model Dome 3-3-01 Size 480x240mm
Highlight

fiber optic splice enclosure

,

fiber optic joint closure
Leave a Message
Product Description
Big Fibre Optic Splice Enclosure
Vertical fiber optic splice box available in 24, 48, 72, and 96 cores with 3-in 3-out configuration
Product Overview
Dome type fiber optic splice closure, also known as vertical optical fiber splice enclosure, is designed for fiber optic cable connections in telecom projects. Available from 6 cores up to 288 cores, suitable for aerial, underground, pipeline, and hand-hole applications. Cable out-port configurations range from 3 ports up to 10 ports. In-line type fiber optic splice enclosure boxes also available.
Applications
  • Telecommunication networks
  • CATV networks
  • Local area networks
  • Aerial hanger, Wall-mounting, Directly buried
  • Widely used in FTTH access network
Key Features
  • Reopenable design
  • Two-way cable entries and exits
  • Metal work fixation capability
  • Clear optical fiber cable management
  • Closure body made from Super PC material with stainless steel bolts
Technical Specifications
Product Name: Dome fiber optic joint splice closure box
Part Number: Dome 3-3 or 3in-3out(fo)
Cable Entry Port: 6 ports
Fiber Capacity: 144 cores
Size: 480x240mm
Weight: 3.0kg
Material: PC Plastic, PPR, or ABS
Sealing Structure: Screw Thread mechanical seal
Cable Diameter: 7.0-22.0mm
Working Temperature: -40℃ to 65℃
Application: Aerial, Direct buried, underground, pipeline, hand-holes
Big Fibre Optic Splice Enclosure , Fibre Optic Splice Box 24 48 72 96 Cores Vertical 3 in 3 out 0
Main Components
No. Component Name Quantity Usage Remarks
1 FOSC cover 1 piece Protecting fiber cable splices Height x Diameter 355mm x 150mm
2 Fiber optic splice tray (FOST) Max. 6 trays (bunchy) Max. 4 trays (ribbon) Fixing heat shrinkable protective sleeve and holding fibers Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces)
3 Fiber holding tray 1 pcs Holding fibers with protective coat
4 Base 1 set Fixing internal and external structure
5 Plastic hoop 1 set Fixing between FOSC cover and base
6 Seal fitting 1 pc Sealing between FOSC cover and base
7 Seal rings for inlet/outlet ports 4 pcs Inner seal of inlet/outlet ports Diameter 12.5mm, can shrink to 7mm
8 Pressure testing valve 1 set Pressure testing and sealing testing after air injection Configuration as per requirement
9 Earthing deriving device 1 set Deriving metal parts of fiber cables for earthing connection Configuration as per requirement
Accessories and Special Tools
No. Accessories Quantity Usage Remarks
1 Heat shrinkable protective sleeve Customized Protecting fiber splices Configuration as per capacity
2 Nylon tie Customized Fixing fiber with protective coat Configuration as per capacity
3 Earthing wire 1 piece Putting through between earthing devices To put through as per actual requirement
4 Abrasive cloth 1 piece Scratching fiber cables
5 Labeling paper 1 piece Labeling fibers
6 Special wrench 2 pieces Installing and tightening nut of reinforced core and nut of inlet/outlet tube
7 Measuring paper 1 piece To measure perimeter with seal tape To measure perimeter with the corresponding measuring paper
8 Seal tape 1 ring Enlarging diameter of fiber cable to fit gasket ring Configuration as per specification
9 Insulation tape 1 ring Enlarging diameter of fiber cable for easy fixing
10 Metal hoop 1 set For wall mounting and pole hugging
11 Buffer tube Decided by customers Hitched to fibers and fixed with FOST, managing buffer Configuration as per requirement
12 Desiccant 1 bag Put into FOSC before sealing for desiccating air
OEM/ODM Services
Custom branding services available including LOGO printing on goods, packaging bags, labels, and any other location. Full OEM and ODM support ready to meet your specific requirements.
Packaging & Shipping
Packaging
  • Standard Export Packing
  • Carton box, wooden box, wooden pallet
Shipping Methods
  • International express: UPS, TNT, DHL, etc
  • International air: CA, AA, EA, etc
  • By sea
