12 24 36 Cores Mini Fiber Optic Splice Closure Horizontal Inline for CATV Networks

  • 12 24 36 Cores Mini Fiber Optic Splice Closure Horizontal Inline for CATV Networks
  • 12 24 36 Cores Mini Fiber Optic Splice Closure Horizontal Inline for CATV Networks
  • 12 24 36 Cores Mini Fiber Optic Splice Closure Horizontal Inline for CATV Networks
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number Inline 2-2-03-xFO
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T,L/C
Supply Ability 50,000pcs/week
Product Details
Type Horizontal Type, In-line Min. Capacity 4 Cores
Max Capacity 48cores Weight 1.1KG
Size 320x130x60mm Material PPR, ABS, PC, PP
Highlight

fiber optic splice enclosure

,

fiber optic joint closure
Leave a Message
Product Description
12 24 36 Cores Mini Fiber Optic Splice Closure Horizontal Inline for CATV Networks
This horizontal in-line 2-2-03 type fiber optic splice closure is designed for fiber optic cable connections in telecom projects. Available in capacities from 6 cores up to 288 cores, it's suitable for aerial, underground, pipeline, and hand-hole applications with cable out-ports ranging from 3 to 10 ports.
Product Specifications
  • Product Name: Horizontal fiber optic joint splice closure box
  • Part Number: Inline 2-2-03-xfo
  • Cable Entry Port: 4 ports
  • Fiber Capacity: 48 cores
  • Dimensions: 320×130×60mm
  • Weight: Approximately 1.1kg
  • Material: PPR/ABS/PC Plastic
  • Sealing Structure: Silica gel
  • Cable Diameter Range: 7.0-22.0mm
  • Working Temperature: -40℃ to 65℃
Applications
  • Aerial, direct buried, underground, pipeline, hand-holes installation
  • Duct mounting and wall mounting applications
  • FTTH access networks
  • Telecommunication networks
  • CATV networks
  • Data communications networks
  • Local area networks
Key Features
  • Excellent corrosion resistance
  • Suitable for harsh environmental conditions
  • Anti-lighting protection
  • Superior water-proof functionality
Product Images

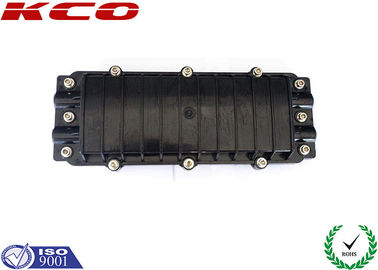

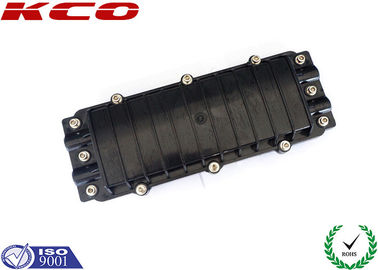

12 24 36 Cores Mini Fiber Optic Splice Closure Horizontal Inline for CATV Networks 0 12 24 36 Cores Mini Fiber Optic Splice Closure Horizontal Inline for CATV Networks 1
Main Components
No. Name Quantity Usage Remark
1 Crust 1 set Protecting fiber cable splices in whole
2 Fusion splice tray Max.4 tray Fix fiber, Protect heat-shrinkable tube Sleeve
3 Foundation 1 set Fix cable, reinforced core and tray
4 Seal fitting 1 set Air-proof between cover and bottom
5 Port plug 4 pieces Sealing empty ports
6 Valve 1 set Pressure measurement, inspection sealing Configure by user
Accessories Included
No. Name of Accessories Quantity Usage Remarks
1 Heat shrinkable tube Protecting fiber splices Configuration as per capacity
2 Nylon tie Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Label tape 1 piece Sign fiber
7 Spanner 1 piece Install bolts of shell
8 Desiccant 1 bag Desiccating air
OEM/ODM Services
Custom branding services available including LOGO printing on products, packaging bags, labels, and complete customization options. Our OEM and ODM services are ready to meet your specific requirements.
Packing & Shipping
Packing: Standard export packing using carton boxes, wooden boxes, or wooden pallets.
Shipping Methods:
  • International express services (UPS, TNT, DHL, etc.)
  • International air freight
  • Sea freight
