IP67 Inline Type 24fo Fiber Optic Splice Closure Mini Optical Fiber Enclosure 48 cores

  • IP67 Inline Type 24fo Fiber Optic Splice Closure Mini Optical Fiber Enclosure 48 cores
  • IP67 Inline Type 24fo Fiber Optic Splice Closure Mini Optical Fiber Enclosure 48 cores
  • IP67 Inline Type 24fo Fiber Optic Splice Closure Mini Optical Fiber Enclosure 48 cores
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number In-line 2-2-04-xFO
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T,L/C
Supply Ability 50,000pcs/week
Product Details
Type Inline, Horizontal Type Min. Capacity 4 Cores
Max Capacity 48 Cores Weight 1.5KG
Size 340x150x70mm Mini Capacity 12 Cores
Highlight

fiber optic splice enclosure

,

fiber optic joint closure
Leave a Message
Product Description

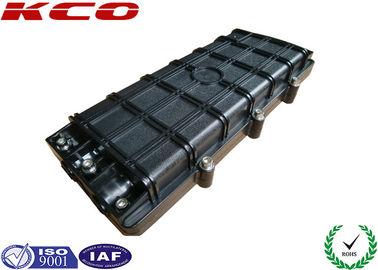

IP67 Inline Type 24fo Fiber Optic Splice Closure
Mini Optical Fiber Enclosure with 48 cores capacity, designed for reliable fiber optic cable connections in various installation environments.
Product Specifications
Name: Horizontal fiber optic joint splice closure box
Part Number: In-line 2-2-04
Cable Entry Port: 4 ports
Fiber Capacity: 48 cores
Dimensions: 340×150×70mm
Weight: Approximately 1.5kg
Material: ABS/PC Plastic/PPR
Sealing Structure: Silica gel
Cable Diameter Range: 7.0-22.0mm
Operating Temperature: -40℃ to 65℃
Key Features
  • Excellent corrosion resistance
  • Suitable for harsh environmental conditions
  • Lightning protection
  • Superior waterproof performance (IP67 rated)
Applications
  • Aerial, direct buried, underground, and pipeline installations
  • Hand-holes, duct mounting, and wall mounting
  • FTTH access networks
  • Telecommunication networks
  • CATV networks
  • Data communications networks
  • Local area networks
IP67 Inline Type 24fo Fiber Optic Splice Closure Mini Optical Fiber Enclosure 48 cores 0
Main Components
No. Name Quantity Usage Remark
1 Crust 1 set Protecting fiber cable splices in whole
2 Fusion splice tray Max. 4 tray Fix fiber, Protect heat-shrinkable tube Sleeve
3 Foundation 1 set Fix cable, reinforced core and tray
4 Seal fitting 1 set Air-proof between cover and bottom
5 Port plug 4 pieces Sealing empty ports
6 Valve 1 set Pressure measurement, inspection sealing Configure by user
Accessories List
No. Name of Accessories Quantity Usage Remarks
1 Heat shrinkable tube Protecting fiber splices Configuration as per capacity
2 Nylon tie Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Label tape 1 piece Sign fiber
7 Spanner 1 piece Install bolts of shell
8 Desiccant 1 bag Desiccating air
IP67 Inline Type 24fo Fiber Optic Splice Closure Mini Optical Fiber Enclosure 48 cores 1
OEM/ODM Services
We offer comprehensive OEM and ODM services, including custom branding on products, packaging bags, labels, and other components according to your specifications.
Packing & Shipping
Packing: Standard export packing with carton boxes, wooden boxes, or wooden pallets.
Shipping Methods: International express (UPS, TNT, DHL), international air freight, and sea freight options available.
