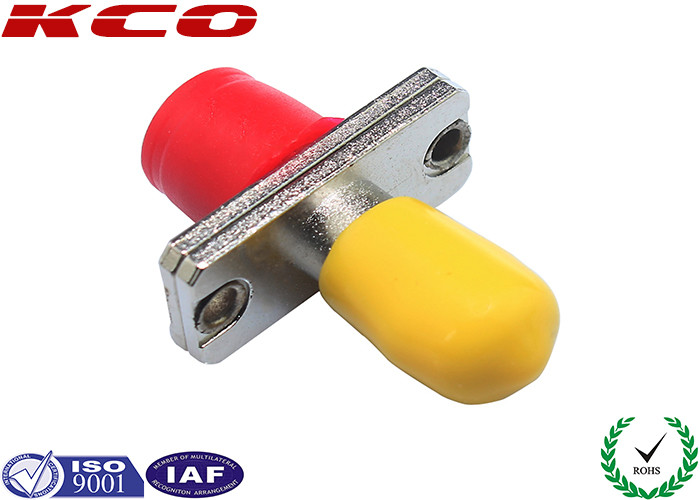

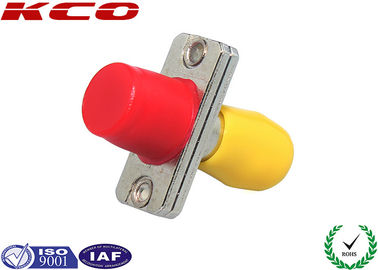

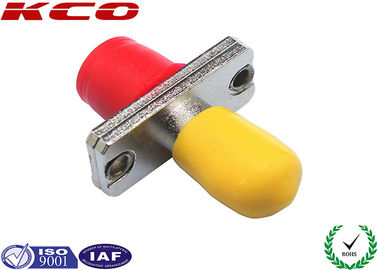

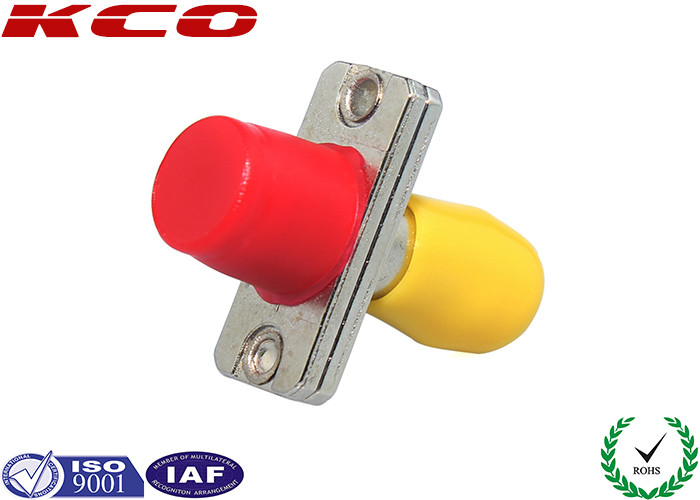

Single Mode ST To FC Adapter FC To ST Hybrid Adapter Convert Simplex
|Place of Origin||Guangdong, China|
|Brand Name||KCO, Kocent Optec Limited|
|Model Number||ST-FC adt|
|Minimum Order Quantity||Negotiation|
|Packaging Details||Plastic module, carton box, wooden pallet|
|Delivery Time||2~5 days after get payment|
|Payment Terms||Western Union, T/T, L/C|
|Connector 1||FC/UPC||Sleeves Material||Ceramic (ZrO2)|
|Chanel Way||Simplex||Connector 2||ST/UPC|
fibre optic adapter,
fiber optic adaptor
Single Mode ST To FC Adapter FC To ST Adapter Convert One Way Simplex
Convert type: FC/UPC to ST/UPC
Fiber mode: single mode
Convert way: 1 way, simplex
Material: metal and plastic
A FC/UPC-ST/UPC hybrid adapter also call FC-ST hybrid optical fiber adapter. It use to connect the FC/UPC fiber optic patch cable and ST/UPC fiber optic adapter. With hight quality of ceramic sleeve, it can keep 0.2dB if insertion loss in 1000 times of mating. We do testing each of fiber optic adapter before delivery to warranty that it is standard goods when they come to customer's hand.
- Fiber optic adapters also call fiber optical adapter, optic fiber adapter, optical fiber adapter.
- The fiber optic adapters use to join two fiber optic patch cables together. It contains the interconnect sleeve, that holds the two ferrules together.
- Fiber optic adapter is available in single mode UPC APC and multimode PC to sastify to connect single mode or multimode patch cable.
- A hybrid adapte's function is same with common fiber optic adapter. It is the fiber optic adapter that use to convert one type of adapter connector into onther typr of adapter connector such as from SC adapter connector convert into ST adapter connector. And so on, we can do SC to LC, SC to FC, FC to ST, FC to LC or LC to ST, etc. When you want to connect two type different of fiber optic patch cable, you will need to use this hybrid fiber optic adapter.
- Testing instruments
- Connection between devices
- Connection between fiber optic patch cords
- CATV, MANS, WANS
- Fiber to the home, FTTX
Advantage of the fiber optic adapters:
- Our range of fiber optic cable adapter can consistent good quality as is proven by repeated tests. It is interchangeable with similar devices built to the same standards.
- We provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatability.
- These products are designed and manufactured to comply with stringent Telcordia 100BaseFX Technologies standards.
- Low Insertion Loss means there is little reduction in light intensity along the transmission router.
- High Reliability
- Also compliant with the IEC and ROSH standards
Specification of fiber optic adapters:
|Mating Connector Type||SC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc|
|Fiber Type of Connector||Single Mode||Multimode|
|Adapter Color||Blue, green, metallic||Beige, Metallic|
|Insert Loss||Typical≤0.15dB, max≤0.2dB||Typical≤0.15dB, max≤0.2dB|
|Housing Material||Plastic or metal|
|Alignment Sleeve||Ceramic (ZrO2) or customized|
|Channel Number||Simplex, duplex, quad .|
|Item||Test Name||Additional Insertion Loss||Additional Return Loss|
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
