24 Cores Horizontal Type Fiber Optic Splice Closure Fiber Optic Splice Case For FTTH

  • 24 Cores Horizontal Type Fiber Optic Splice Closure Fiber Optic Splice Case For FTTH
  • 24 Cores Horizontal Type Fiber Optic Splice Closure Fiber Optic Splice Case For FTTH
  • 24 Cores Horizontal Type Fiber Optic Splice Closure Fiber Optic Splice Case For FTTH
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number Inline 2-2-06-xFO
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T,L/C
Supply Ability 50,000pcs/week
Product Details
Type In-line Type, Horizontal Type Cable Diameter 8.0~22.0mm
Min. Capacity 4 Cores Max Capacity 144 Cores
Weight 3.5KG Size 430x135x210mm
Highlight

fiber optic joint closure

,

fibre optic splice closure
Leave a Message
Product Description
24 Cores Horizontal Type Fiber Optic Splice Closure
Professional fiber optic splice case designed for FTTH applications, providing reliable protection for fiber cable connections in various installation environments.
Product Overview
This in-line type fiber optic splice closure, also known as horizontal type optical fiber splice enclosure box, is engineered for fiber optic cables connection in telecom projects. Available in capacities from 6 cores up to 288 cores with cable out-port configurations from 3 to 10 ports.
Technical Specifications
Product Name: Horizontal fiber optic joint splice closure box
Part Number: Inline 2-2-06 fo
Cable Entry Port: 4 ports
Fiber Capacity: 144 cores
Dimensions: 430×135×120mm
Weight: Approximately 3.5kg
Material: PPR/ABS/PC Plastic
Sealing Structure: Silica gel
Cable Diameter Range: 7.0-22.0mm
Operating Temperature: -40℃ to 65℃
Applications
  • Aerial, Direct buried, underground installations
  • Pipeline, hand-holes, duct mounting
  • Wall mounting applications
  • FTTH access networks
  • Telecommunication networks
  • CATV networks
  • Data communications networks
  • Local area networks
Key Features
  • Excellent corrosion resistance
  • Suitable for harsh environmental conditions
  • Anti-lighting protection
  • Superior water-proof functionality

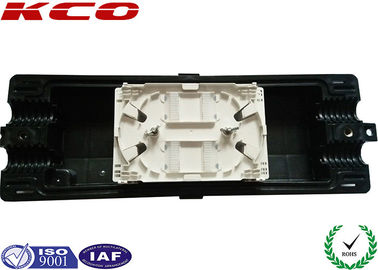

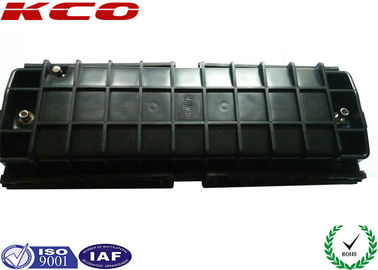

Product Images
24 Cores Horizontal Type Fiber Optic Splice Closure Fiber Optic Splice Case For FTTH 0 24 Cores Horizontal Type Fiber Optic Splice Closure Fiber Optic Splice Case For FTTH 1
Main Components
No. Name Quantity Usage Remark
1 Crust 1 set Protecting fiber cable splices in whole
2 Fusion splice tray Max. 4 tray Fix fiber, Protect heat-shrinkable tube Sleeve
3 Foundation 1 set Fix cable, reinforced core and tray
4 Seal fitting 1 set Air-proof between cover and bottom
5 Port plug 4 pieces Sealing empty ports
6 Valve 1 set Pressure measurement, inspection sealing Configure by user
Accessories Included
No. Name of Accessories Quantity Usage Remarks
1 Heat shrinkable tube Protecting fiber splices Configuration as per capacity
2 Nylon tie Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Label tape 1 piece Sign fiber
7 Spanner 1 piece Install bolts of shell
8 Desiccant 1 bag Desiccating air
OEM/ODM Services
We offer comprehensive OEM and ODM services, including custom branding on products, packaging bags, labels, and other components according to your specifications.
Packaging & Shipping
Packaging: Standard export packing with carton boxes, wooden boxes, or wooden pallets.
Shipping Options:
• International express services (UPS, TNT, DHL, etc.)
• International air freight (CA, AA, EA, etc.)
• Sea freight services
