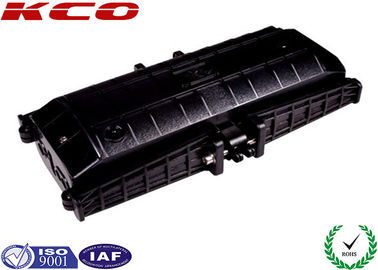

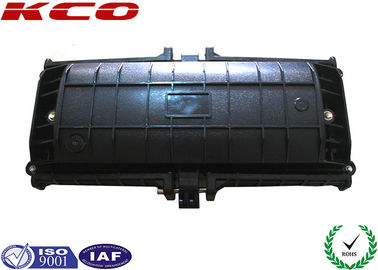

Six Ports 3in 3out 96 Cores Outdoor Fiber Optic Splice Enclosure Water Resistance

  • Six Ports 3in 3out 96 Cores Outdoor Fiber Optic Splice Enclosure Water Resistance
  • Six Ports 3in 3out 96 Cores Outdoor Fiber Optic Splice Enclosure Water Resistance
  • Six Ports 3in 3out 96 Cores Outdoor Fiber Optic Splice Enclosure Water Resistance
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number Inline 3-3-02-xFO
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T,L/C
Supply Ability 50,000pcs/week
Product Details
Type In-line Cable Diameter 8.0~22.0mm
Min. Capacity 6 Cores Max Capacity 96 Cores
Material ABS, PP, PC, PPR Weight 3.6KG
Size 410x200x120mm
Highlight

fiber optic joint closure

,

fibre optic splice closure
Leave a Message
Product Description
Six Ports 3in 3out 96 Cores Outdoor Fiber Optic Splice Enclosure
Professional outdoor fiber optic splice enclosure with excellent water resistance, designed for harsh environmental conditions and reliable fiber optic cable connections.
Product Specifications
  • Product Name: Horizontal Fiber Optic Joint Splice Closure Box
  • Part Number: Inline 3-3-02
  • Cable Entry Ports: 6 ports (3 in, 3 out)
  • Fiber Capacity: 96 cores
  • Dimensions: 340×200×120mm
  • Weight: Approximately 3.6kg
  • Material: ABS/PC/PP Plastic
  • Sealing Structure: Silica Gel
  • Cable Diameter Range: 7.0-22.0mm
  • Operating Temperature: -40℃ to 65℃
Key Features
  • Excellent corrosion resistance
  • Lightning protection
  • Superior waterproof performance
  • Suitable for harsh environmental conditions
Applications
  • Aerial, direct buried, underground installations
  • Pipeline, hand-holes, duct mounting, wall mounting
  • FTTH access networks
  • Telecommunication networks
  • CATV networks
  • Data communications networks
  • Local area networks
Product Overview
The In-line 3-3-02 type fiber optic splice closure, also known as horizontal fiber splice enclosure box, is available in capacities from 6 cores up to 288 cores. Suitable for fiber optic cable connections in telecom projects including aerial, underground, pipeline, and hand-hole applications. Cable output ports range from 3 to 10 ports. Vertical type fiber optic splice enclosure boxes also available.
Main Components
No. Name Quantity Usage Remark
1 Crust 1 set Protecting fiber cable splices in whole
2 Fusion splice tray Max. 4 tray Fix fiber, Protect heat-shrinkable tube Sleeve
3 Foundation 1 set Fix cable, reinforced core and tray
4 Seal fitting 1 set Air-proof between cover and bottom
5 Port plug 4 pieces Sealing empty ports
6 Valve 1 set Pressure measurement, inspection sealing Configure by user
Accessories List
No. Name of Accessories Quantity Usage Remarks
1 Heat shrinkable tube Protecting fiber splices Configuration as per capacity
2 Nylon tie Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Label tape 1 piece Sign fiber
7 Spanner 1 piece Install bolts of shell
8 Desiccant 1 bag Desiccating air
Six Ports 3in 3out 96 Cores Outdoor Fiber Optic Splice Enclosure Water Resistance 0
OEM/ODM Services
Custom branding services available including logo printing on products, packaging bags, labels, and other components. Our OEM and ODM services are ready to accommodate your specific requirements.
Packaging & Shipping
Standard export packaging using carton boxes, wooden boxes, or wooden pallets. Shipping options include international express (UPS, TNT, DHL), international air freight, and sea freight.
