Fujikura FSM-80S Fiber Optic Fusion Splicer , Fiber Optic Tools

  • Fujikura FSM-80S Fiber Optic Fusion Splicer , Fiber Optic Tools
  • Fujikura FSM-80S Fiber Optic Fusion Splicer , Fiber Optic Tools
  • Fujikura FSM-80S Fiber Optic Fusion Splicer , Fiber Optic Tools
Place of Origin China
Brand Name Fujikura
Certification ISO9001
Model Number FSM-80S
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Protection box, carton box, wooden box
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T
Supply Ability 5000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Average Splice Loss 0.01dB~0.04dB Tention Test 2.0N
Fiber SM, MM, DS, NZ-DS, EDF Return Loss 60dB
Fiber Dia. 80~150µm Cleave Length 10~16mm
Highlight

fiber optic fittings

,

fiber optic tools and equipment
Leave a Message
Product Description
Fujikura FSM-80S Fiber Optic Fusion Splicer
The FSM-80S fiber optic fusion splicer is a core-to-core alignment single fiber splicer that succeeds the FSM-60S model. Building upon the ruggedized concept established by the 60S, the 80S introduces advanced features including automated wind-protector and tube-heater systems for faster splicing cycles, innovative carrying-case design for quick preparation, powerful Li-ion battery for extended operation, high-resolution larger LCD monitor, and built-in multilingual operation manuals.
Key Advantages
World's Fastest Welding and Heating
  • SM-FAST mode completes fusion in just 7 seconds
  • Heating completion in 13 seconds using 60mm bare optical fiber shrink tube
Innovative Carrying Case Design
  • Facilitates construction and field operations
  • Features removable table for enhanced convenience
Long Life & Low Loss Performance
  • Single lithium battery supports 200 welding and heating cycles
  • Electrode rod life sustains 3000 discharges
  • No mirror Observing System for reliable operation
Streamlined Automated Procedures
  • Automatic windshield switching
  • Automatic heater switching
Superior Environmental Adaptability
  • Industry-first 76cm six-direction drop resistance
  • Dust-proof and water-resistant construction
Versatile Compatibility
  • Compatible with various hot melt heads and fiber clamps
  • Short cut weld length of just 5mm
Product Images

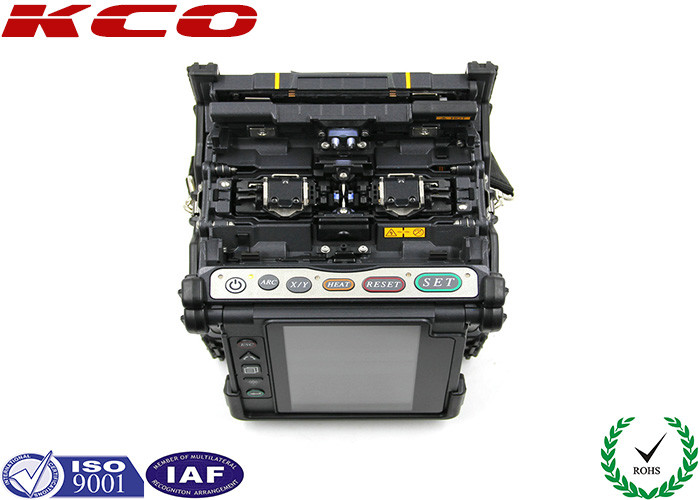

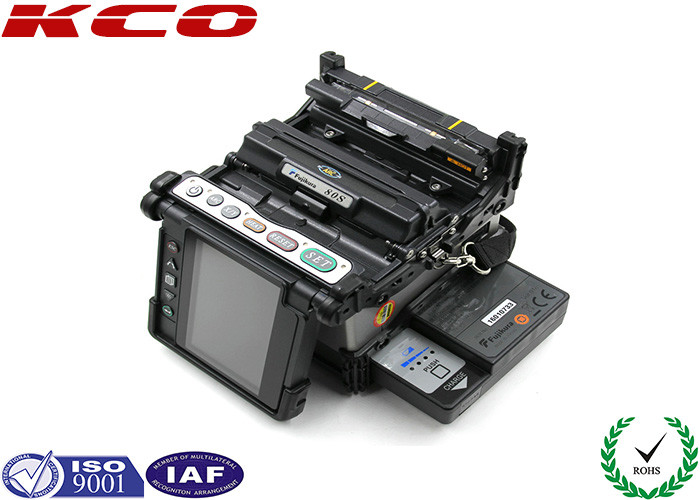

Fujikura FSM-80S Fiber Optic Fusion Splicer , Fiber Optic Tools 0
Technical Specifications
Applicable fibres SM (ITU-T G.652 & G.657), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655), Others
Fibre Count Single
Cladding diameter 80 to 150μm
Coating diameter 100 to 1000μm
Fibre cleaved length 5 to 16mm using Sheath Clamp A, B or 5 to13mm using FH-60-250, FH-60-900
Actual average splice loss 0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS
Splice time 7sec: SM FAST mode, 12sec: SM AUTO mode, 15sec: AUTO mode
Return loss 60dB or greater
Splicing modes 100 splicer modes available
Splice loss estimate Several types of core deformations as well as core axis offset are taken into account for accurate loss estimate
Attenuation splice function Intentional high splice loss of 0.1dB to 15dB (0.01dB step) can be made for an inline fixed attenuator
Storage of splice result The last 2000 results stored in internal memory
Magnification X / Y (300X magnification), or both X and Y simultaneously (160X magnification)
Viewing method By two CMOS cameras for intersecting fiber viewing and 4.73 inches TFT colour LCD monitor
Tension test 1.96 to 2.25N
Operating condition 0-5000m above sea level, 0-95% RH and -10 to 50°C respectively
Tube heater Built-in auto-start tube heater with 10 heating modes and up to 20 for reference
Tube heat time 13-15sec with FP-03 protection sleeve. Total memory of 30 heating modes available
Applicable protection sleeve length 60mm, 40mm and a series of micro sleeves
No. of splice/heating with battery 200 times of splicing and heat shrinking with BTR-09
Power supply Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-18. 14.8Vd.c. with BTR-09
Terminals USB2.0 (Mini-B) for data and video signal transfer to PC
Wind protection Up to 15m/s wind velocity

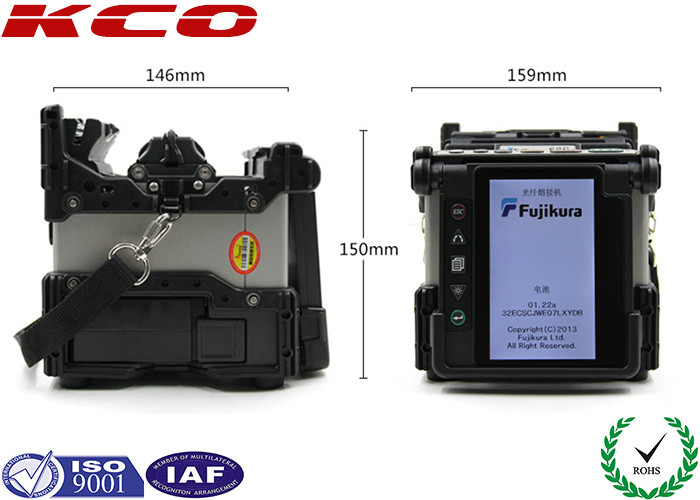

Dimensions 146(W) x 159(D) x 150(H) mm Including wind protector, monitor, and rubber protector Excluding rubber foot
Weight 2.5 kg, with ADC-18 AC adaptor 2.7 kg, with BTR-09 battery
Electrode life 3000 arc-discharges
