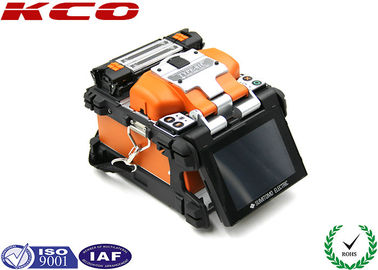

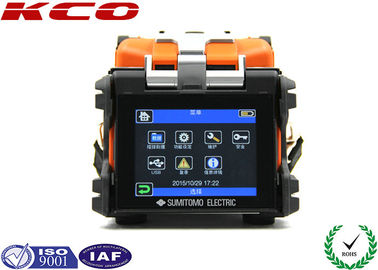

Wire Fibre Optic Fusion Splicer / Fiber Optic Splicing Machine Sumitomo Type-81c
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Average Splice Loss | 0.01dB~0.04dB | Fiber | SM, MM, DS, NZ-DS, EDF |
|---|---|---|---|
| Universal Clamp | 250nm, 900nm | Cleave Length | 5~16mm |
| Weight | 2.1kg | Loss | 0.1dB |
| Highlight | fiber optic accessories,fiber optic fittings |
||
Product Description
Sumitomo Type-81C Fiber Optic Fusion Splicer
Fusion splicing is the process of joining two optical fibers end-to-end using heat to create a permanent connection. This technique ensures minimal light scattering or reflection at the splice point while maintaining fiber strength comparable to the original fiber. The Sumitomo Type-81C utilizes an electric arc as its heat source for precise, reliable splicing.
Advanced Splicing Technology
This automated fusion splicing machine features preset splicing parameters and factory-recommended settings to optimize the splicing process. For optimal results, use with a precision fiber cleaver to ensure clean, precise fiber ends before splicing.
Key Features
- 43% more compact than conventional models
- Lightweight design at only 2.1kg including battery
- Ultra-fast splicing cycle (7 seconds)
- Rapid heating time (28 seconds)
- Automatic G.657 fiber splicing function
- IP52 rated for dust and water resistance
- Durable construction withstands 76cm drops on 5 faces
- Automatic arc calibration for consistent performance
- Intuitive touch screen operation
- Universal clamp compatible with 250nm, 900nm tight and loose buffer fibers
- User-selectable heater clamp operation
- Bi-directional splicing operation support
- Onboard training video for operator guidance
- Internet-based software upgrades
Technical Specifications
| Mode | Type-81c |
|---|---|
| Fiber Type | SM/MM/DSF/NZDASF |
| Coating Diameter | 100μm~1000μm |
| Cladding Diameter | 80~150μm |
| Cutting Length | 5~16mm |
| Splicing Loss | SMF: 0.02dB / MMF: 0.01dB / DSF: 0.04dB / NZDSF: 0.04dB |
| Splicing Mode | 300 |
| Heating Mode | 100 |
| Power | AC: 100~240V, 50/60Hz (ADC-1430) / DC: 10~15V |
| Weight | 2.1kg |
Package Contents
| Description | Model | Quantity |
|---|---|---|
| Fusion Splicer Machine | TYPE-81C | 1 Set |
| AC Adapter | ADC-1430 | 1 piece |
| Battery | BU-11 | 1 piece |
| Fiber Cleaver | FC-6S | 1 piece |
| AC Power Cord | 1 piece | |
| Spare Electrodes | ER-10 | 1 pair |
| Heat Shrinkable Tube Cooling Units | 1 piece | |
| Instruction Manual | 1 piece | |
| Test Report | 1 piece | |
| Belt | 1 piece | |
| Carrying Case | 1 piece | |
| Fiber Stripper | CFS-2 | 1 piece |
Important Notices
Proper operation of both the splicing machine and cleaver requires careful adherence to manufacturer instructions. Each manufacturer's equipment has unique operational procedures. Thoroughly reading the manuals and practicing with the equipment is essential, particularly for operators unfamiliar with this specific splicer model.
Product Images
Packaging Options
Available packaging includes carton box, wooden box, and wooden pallet configurations to suit various shipping and storage requirements.
Shipping Methods
- International express services: UPS, TNT, DHL, etc.
- International air freight: CA, AA, EA, etc.
- Sea freight
